Tilt Window parts needed

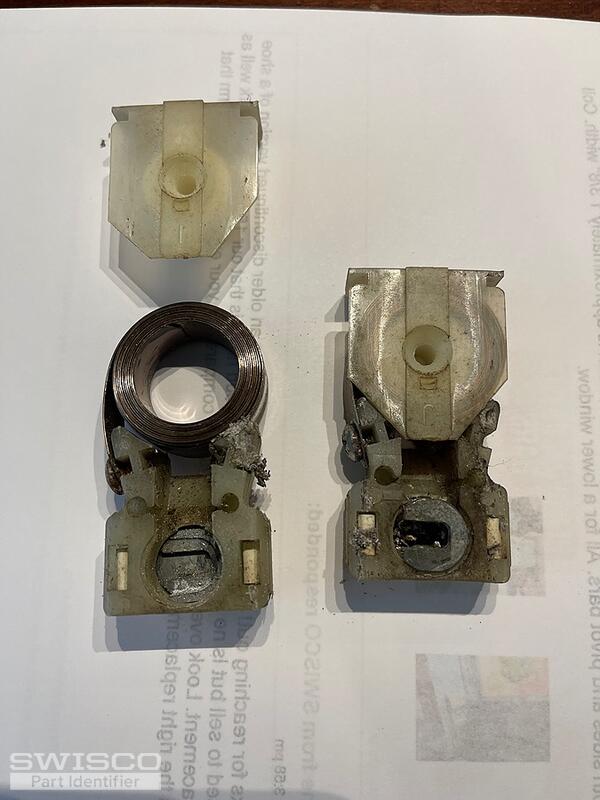

Thanks for reaching out! Your pivot shoes appear to be an older discontinued version of a shoe we used to sell but is no longer available. The good news is that our 15-177 should work well as a replacement. Look over the dimensions and compare it to your existing shoe to confirm that this is the right replacement.

Alternate image for 15-177

The are compatible with the Series 152 Coil Spring. To determine which coil springs are needed for your window, you'll need to look for any stamps/markings on your existing coils. If there are no stamps/markings, you'll need to obtain the exact window weight and divide it by the total number of coils in the window.

To confirm the right replacement for your tilt window pivot bars, I'll likely need to see a photo of your existing hardware. Although, our 26-226 may be a good place to start. You'll need to carefully review and compare the installation hole measurements. If they are not a match, you'll need to locate an original pivot bar. Which may be easier in the long run.

End view of the 26-226 pivot bar

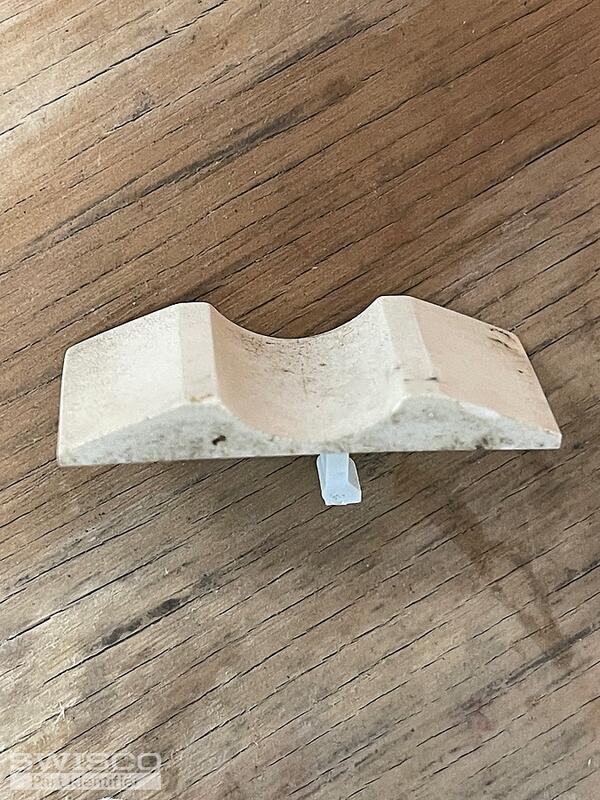

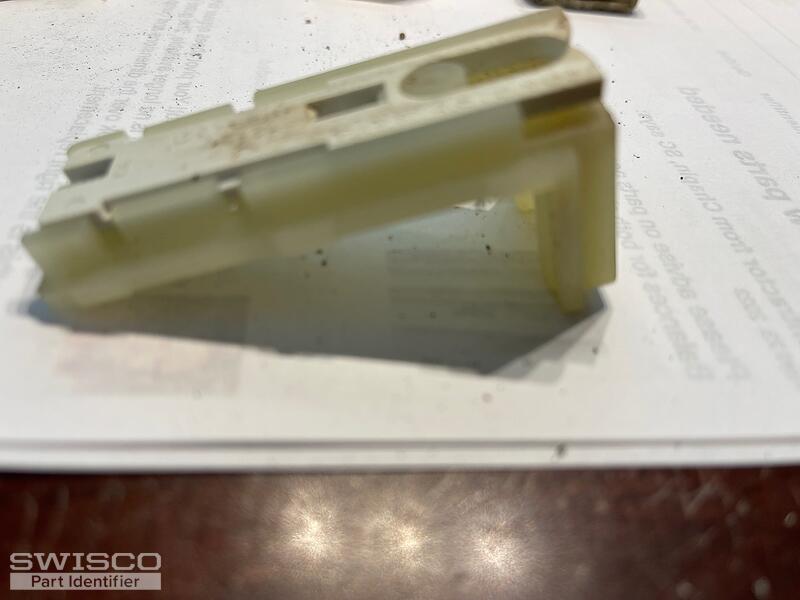

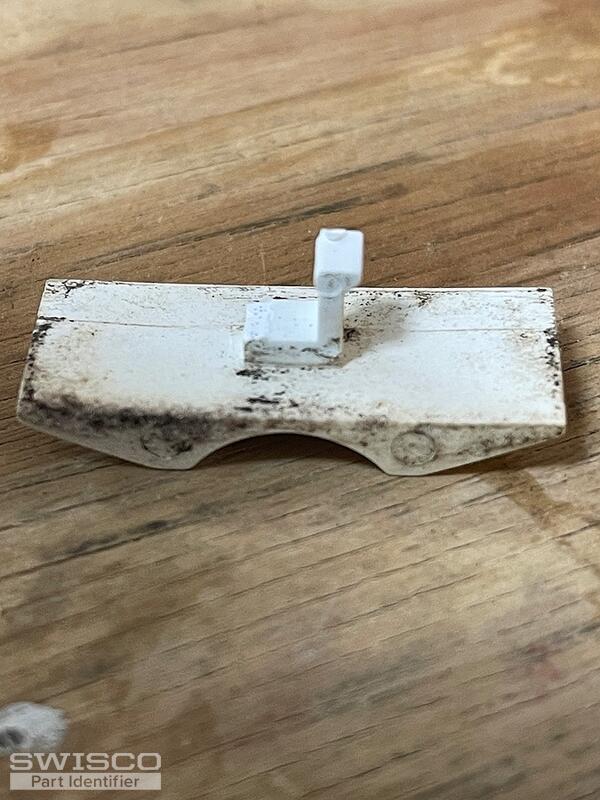

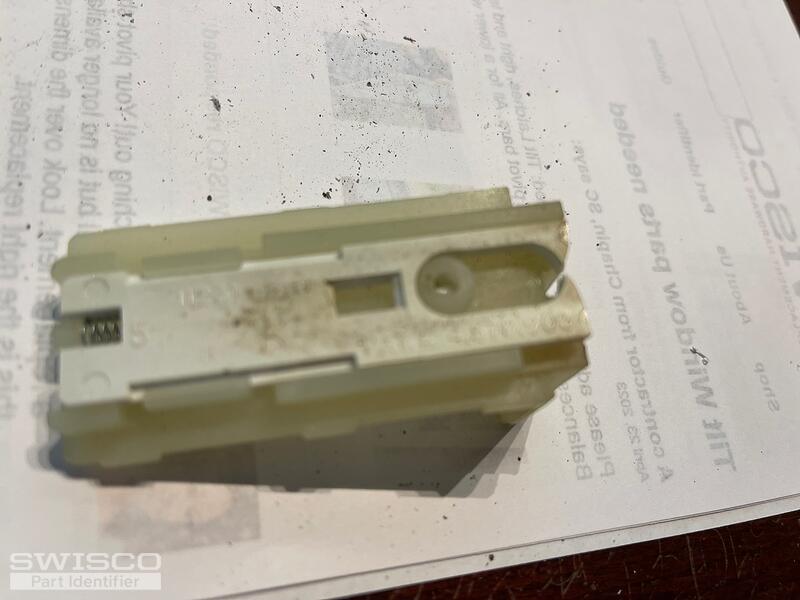

We do not have a match for the tilt latch button you have pictured here. I'll likely need to see a photo of the internal latch removed from the window to determine if we have a suitable replacement.

There is also the option to convert your window to one that uses a surface mounted latch.

I've included videos for how to remove the internal latch as well as how to covert the latch. Take a look at them both to determine which repair method might be best for your window.

The difference in the height of the shoe will not effect the function of the hardware. This shoe will work fine as a replacement. We have recommended it to many other customers.

The coils in the picture should attach to the shoe fine as they appear to be the Series 152 coils recommended. If they are still in good condition and you can still use them, they will work with the recommended shoe.

You will need to push the pivot bar into the window as the video suggests. Unfortunately, I would not be able to confirm the exact pivot bar need without seeing a photo of the existing pivot bar. I would recommend confirming the measurement for the installation holes on the sash to confirm if the holes spacing matches the recommended pivot bar. if it does, it will likely work fine.

In regard to the tilt latches, I recommend taking a look our 26-110 left hand and 26-211 right hand top tilt corner latch. The compatible thumb button for these latches is part 26-119. Compare the dimensions to determine if these are the correct replacements. These are the dimensions for part 26-110.

Detail of 26-110

Alternate view of 26-110

Alternate image for 26-110
