Tilt Window pivot lock shoe

Handy Person from 06457

Aug 5, 2017 5:14 pm

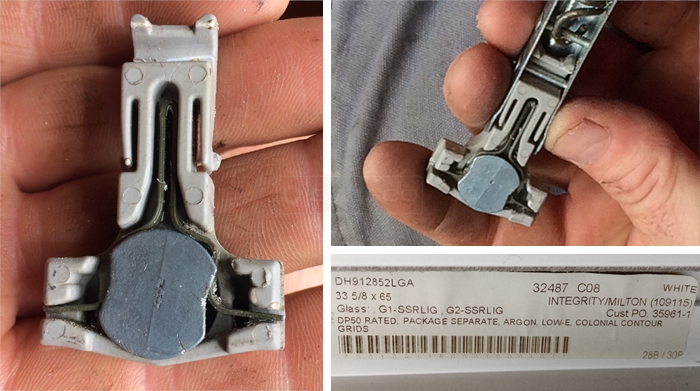

I included the only label from the windows that I could find. The house is 7 years old so they are newer windows.

Thank you so much for your help in trying to identify this part - I hope you have it in stock!

Kelli

8 Replies

Tom from SWISCO

Aug 9, 2017 3:50 pm

Hey Kelli:
Thanks for sending us your question and photos. Please look at our 15-195; however, I'm concerned you might have a deep groove in the stem that I cannot see. If you do have that groove, the 15-195 won't work, and we'll have to come up with another solution.

Quick Learner from 06457

Aug 9, 2017 4:41 pm

Thanks Tom. The measurements line up between what I have and the 15-195. But the actual design is a little different. I have since found that the window is a Champion Series: 9000 DH. Does that help narrow it down at all?

Tom from SWISCO

Aug 11, 2017 12:51 pm

I'm afraid not. Can you specify how the design is different? I don't see anything in your first two photos that would cause any issues, but I'm not sure about the front. If the front has a deep groove, let me know. That would mean our 15-195 wouldn't work.

Quick Learner

Aug 25, 2017 9:41 am

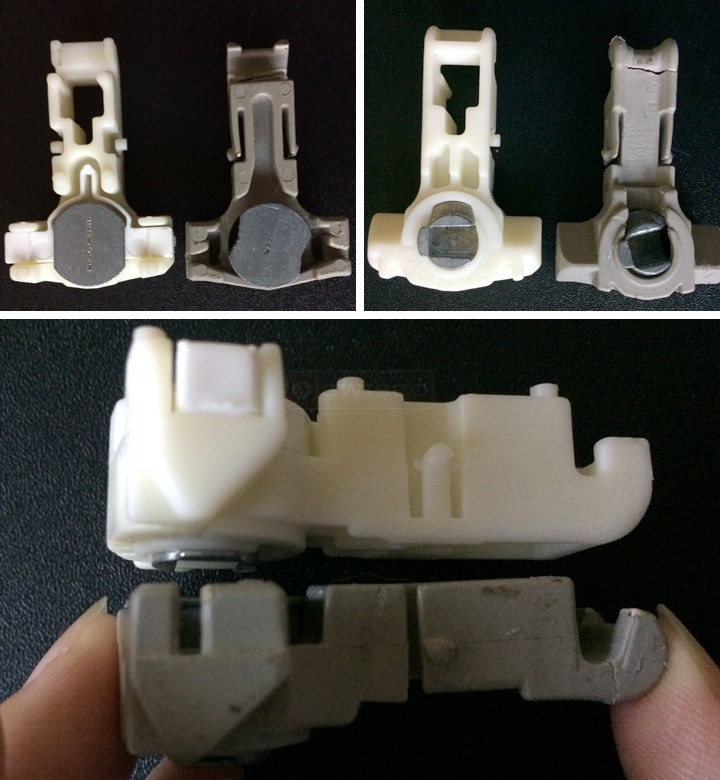

I actually ordered a part similar initially from Amazon (manufacturer part number FS266) and found in general that it is too thick. I'll add some additional pictures.The old part is the grey one.

You'll see what happened with the old one is that the 'hook' broke.

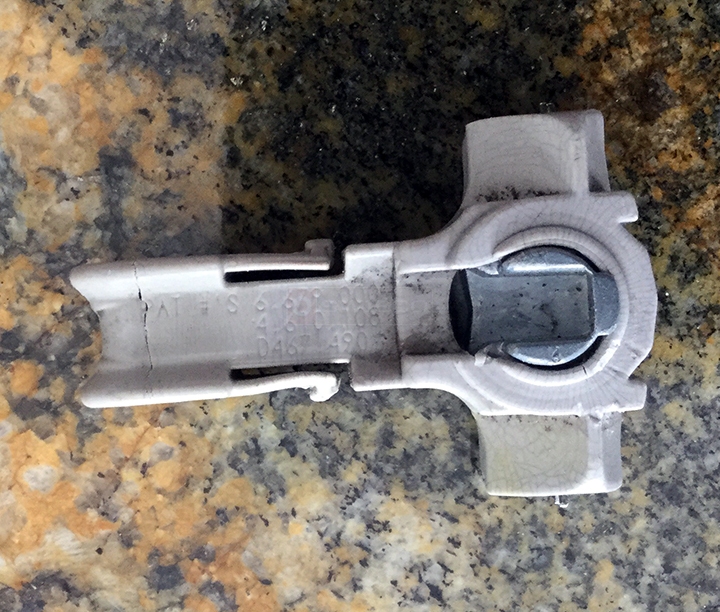

User submitted a photo of a balance shoe.

Tom from SWISCO

Aug 29, 2017 2:13 pm

Ah, I see. You have an older version with a deep groove on the front side. They don't make these anymore, I'm afraid. You will need an all new Series 795 channel balance to replace the original.

Quick Learner from 06457

Aug 29, 2017 3:01 pm

Thanks Tom, I just placed an order for 2 of the channel balances.

Quick Learner from Ct

Sep 5, 2017 6:19 am

Thanks for all your help Tom. I received the channel balances and installed them last night. They fit and the window works perfectly!
