Tilt balance window pivot shoe. Vinyl window. Unkown manufact.

A handy person from North East Ohio says:
July 8, 2019

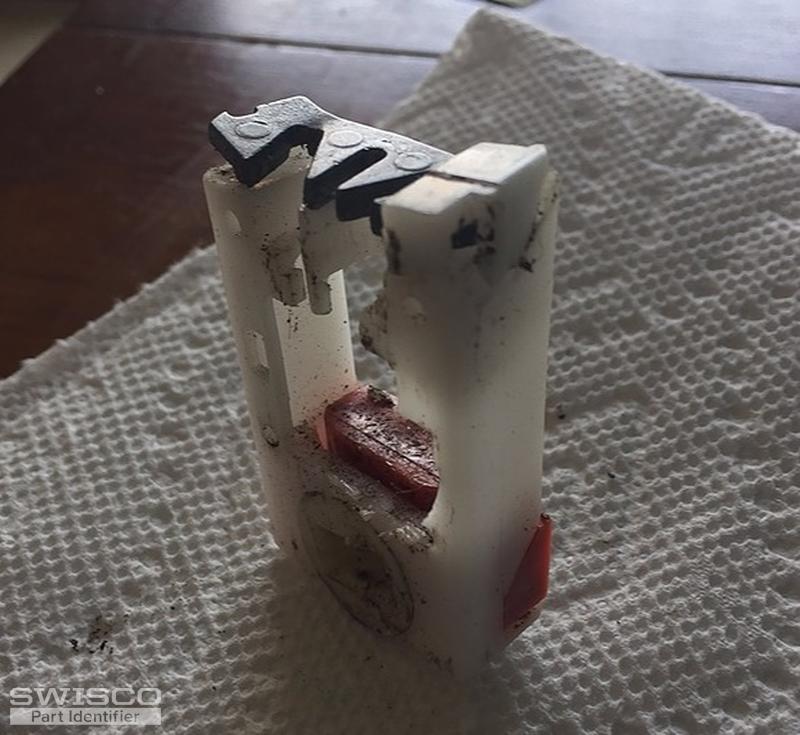

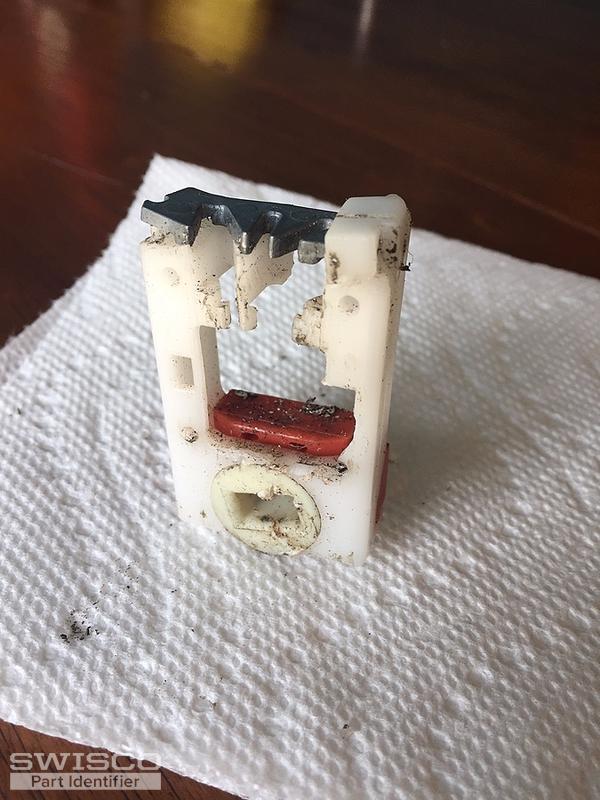

I am having difficulty locating a name on these windows. I have three windows that will not stay up. I found that the small plastic part that the spiral balance goes into is broken on the three windows.

I need up to find where I can purchase replacement parts. Can they be retro fitted with another type/ brand? Where can I look for manufacture?

Approx size 2 1/8" x 1 1/4"x 1/2"

Thumbnail of the uploaded file named IMG_2999.jpg
Thumbnail of the uploaded file named IMG_3001.jpg
Thumbnail of the uploaded file named IMG_3002.jpg
Thumbnail of the uploaded file named IMG_3004.jpg
Thumbnail of the uploaded file named IMG_3005.jpg
Profile picture of Paul
Paul from SWISCO responded:
July 15, 2019

Your pivot shoe looks like our 15-046. This is also 1-1/4" wide and 1/2" thick. Look it over and let me know what you think.

You might also want to consider our 75-006 charging tool. This will make connecting your spiral balance to the new shoe a lot easier.
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
