Tilt block and tackle window balance

A handy person from Hendersonville, NC 28792 says:

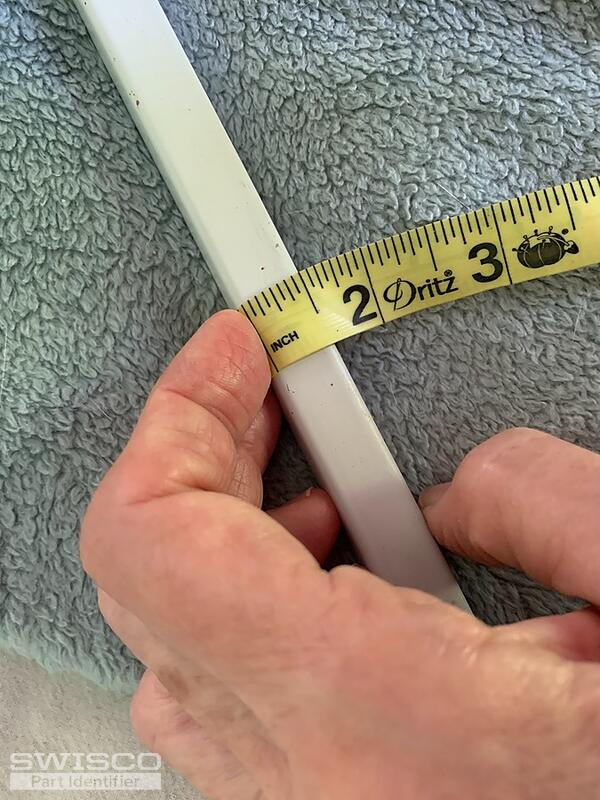

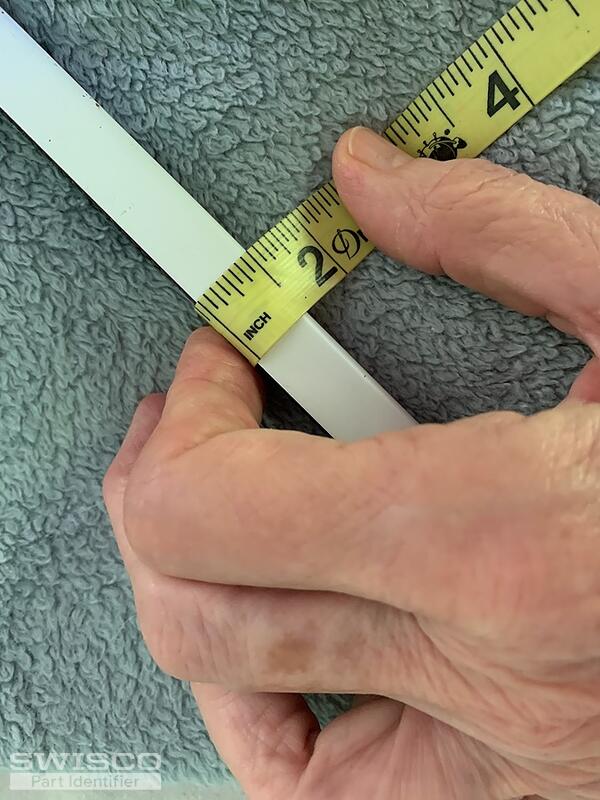

Purchased a home here in NC -18 years old. The windows have not been taken very good care of by previous owners and are very loud and squeaky even after cleaning and lubricating. They are difficult to raise and lower and some you cannot lock because the window will not go all the way down. I will need to replace some of the balances and shoes, I think, but I have not been able to get anyone that has these particular ones. The channel balance itself is 1/2 inch not 5/8 or 9/16. I greatly appreciate your help if you have some suggestions that you think might work. Some of the windows are larger and some smaller which we can discuss later. The channel balance is 34" on this window and sash weighs 22.5 lbs. 34-C BS1 also need shoe

Thanks Patricia

Thumbnail of the uploaded file named 4B250839-DF4B-4BB0-93C2-ABDAD04DFBA9.jpeg
Thumbnail of the uploaded file named 6277284D-80EA-4343-8915-1C9B48884E29.jpeg
Thumbnail of the uploaded file named C0B5A4A2-040A-43C9-A965-BF3873563002.jpeg
Thumbnail of the uploaded file named DA2B9556-9CD0-463D-AFEB-56FBB6627F06.jpeg
Thumbnail of the uploaded file named 0D1CCE24-0FCD-46D4-9C00-47399F2E7C72.jpeg
Profile picture of Lauren
Lauren from SWISCO responded:

Hello, thank you for posting!

Your balance resembles our S770-34 with option 34C and our 15-129 pivot shoe. Please compare the dimensions of the pivot shoe below.

Detail of 15-129
Detail of 15-129
How to replace a tilt-window channel balance.
How to replace a tilt-window channel balance.
VIDEO
WATCH >
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
