Tilt coil balance

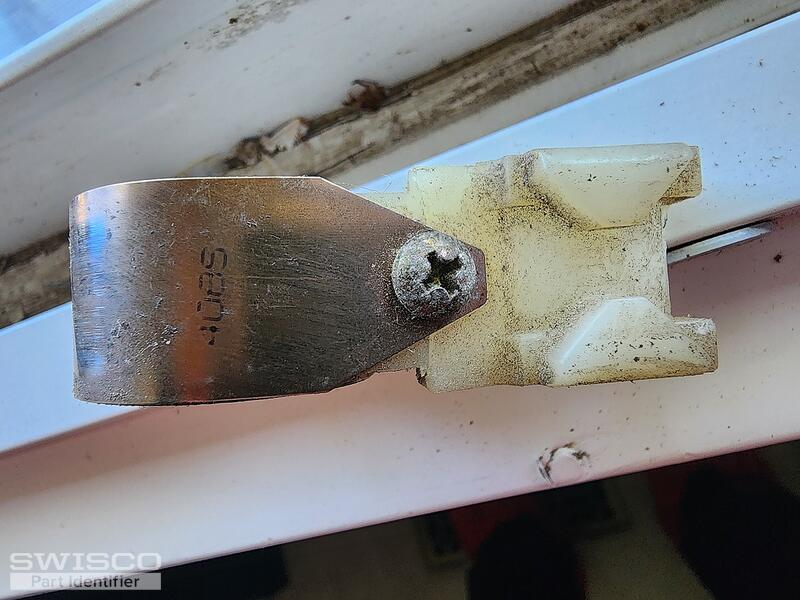

Thanks for reaching out to us! Your coil balance hardware appears to be a discontinued, Simonton Coil Balance Shoe. To replace this assembly, I suggest using the 15-259 Coil Balance Pivot Shoe. To determine if this is the correct fit, you'll need to carefully review and compare the dimensions below.

This shoe is compatible with the Series 159 Coil Balance. Since yours is stamp with a 408S, I'd suggest using the S159-08; although, you'll want to confirm that the sash weight is 16lbs. The cover used with the Series 159 Coil is the 15-255 3/4" Coil Single Support.

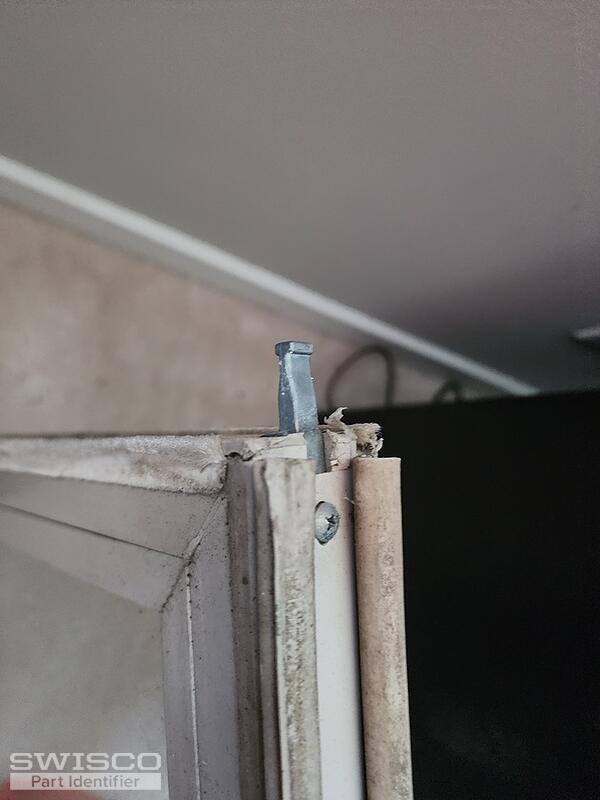

Your existing pivot bar will not be compatible with the recommended shoe, so you'll need to replace it with the 26-083 Pivot Bar.
