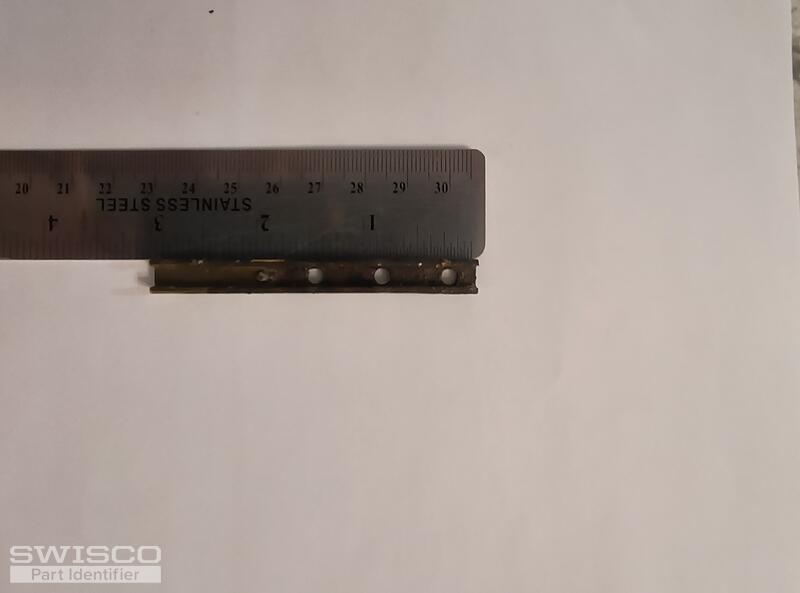

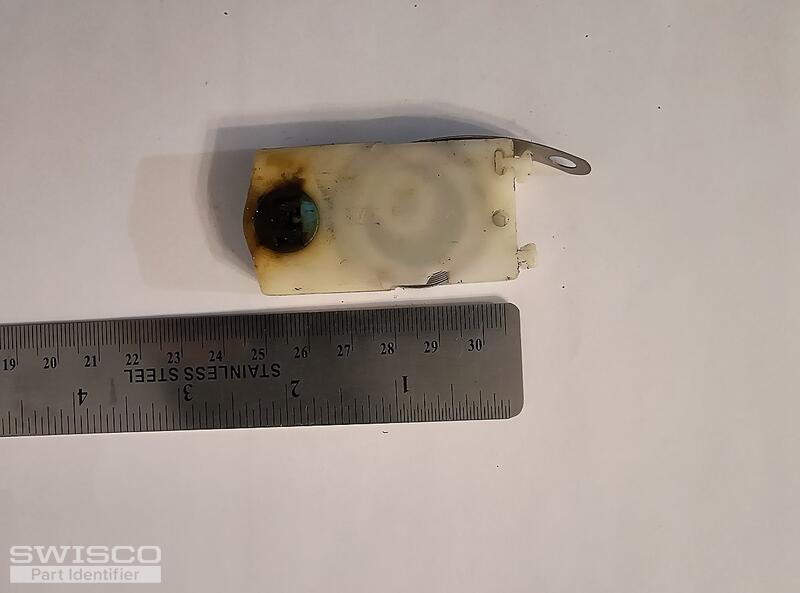

Need to replace balance shoe and pivot bar for top dash. Also need screws for the pivot bar since the originals were rusted fast and had to be destroyed to get pivot bars removed. Thank you. Kym
Tilt double hung vinyl window
Quick Learner from Pennsylvania
Oct 12, 2024 7:04 pm
5 user uploaded images
2 Replies
Bob from SWISCO
Oct 13, 2024 12:14 am
Hello there. I believe the pivot shoe is the 15-087. Just make sure the width and thickness match what is shown below. The pivot bar is likely our 26-040--this comes with an installation screw. Please compare. Finally, if your old coil springs are undamaged, you can reuse them--otherwise, see the S180-07 7 pound spring for any spring stamped '7'. Let me know if you have any questions.
Detail of 15-087
Alternate image for 26-040
Series 180 coil balance diagram
