Tilt-in Balance Replacement : SWISCO.com

Handy Person from Denver

Oct 20, 2024 10:02 pm

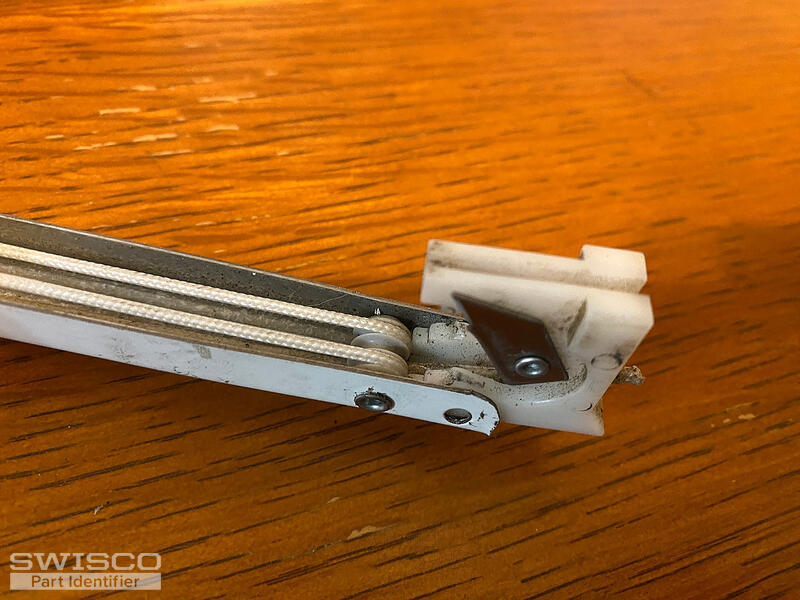

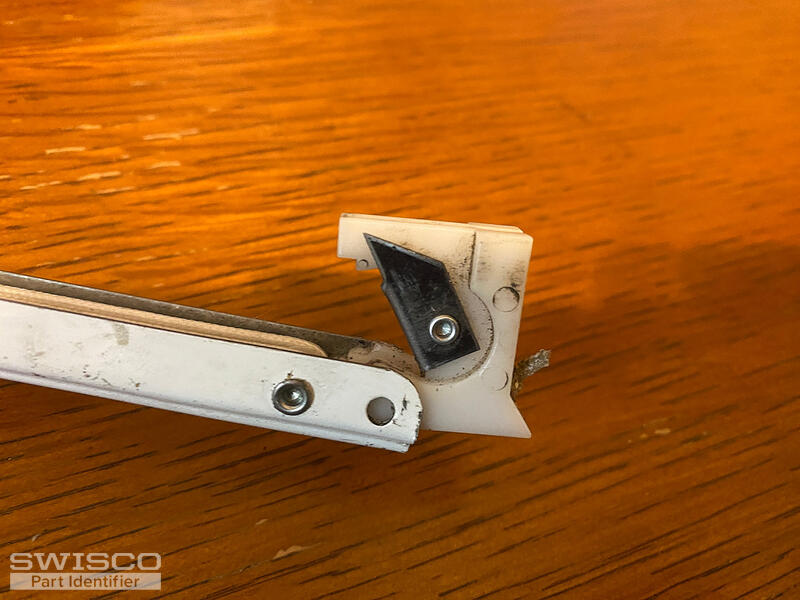

I believe that 27" Series 751 Channel Balance (Product Code: S751-27) option HD is what I need. However, I'm questioning the Shoe. The stated 15-014 shoe that comes on it is a little different from mine. Please advise...

3 user uploaded images

6 Replies

Casey from SWISCO

Oct 24, 2024 8:04 am

Hello,

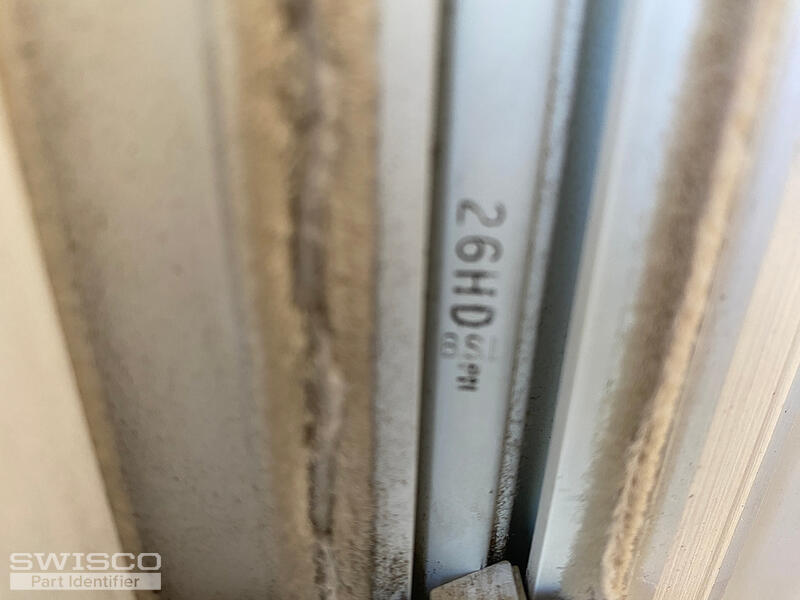

I believe you'll need the S751-27 ribbed balance with the 15-197 locking terminal attached, which we can supply through a custom order. The strength options will be (26HD) for a sash weight between 19-24 lbs. The balance is attached at the top of the vinyl window jamb with either the 19-029 or 19-030 S-Clip. If the specifications look good to you, we'll just need to confirm the number of balances you need with the minimum being two. Thank you!

Dimensions for 15-197

Handy Person from Denver

Oct 24, 2024 9:09 am

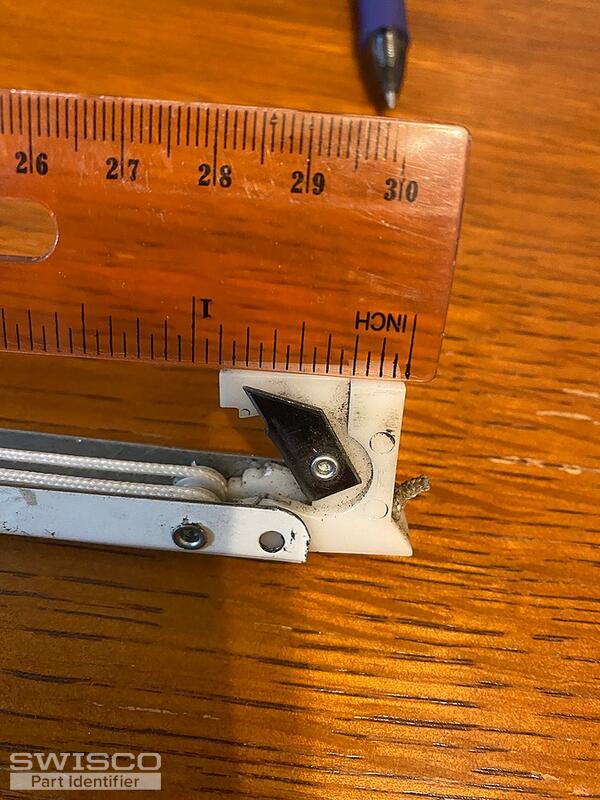

The shoe I have is 15/16" tall. The one you have suggested is 1 5/16" tall. Do you have another shoe suggestion? Then, how May I place the special order?

1 user uploaded image

Casey from SWISCO

Oct 24, 2024 9:21 am

The height of the shoe shouldn't be a problem as long as the width and thickness match. We'll just need to know the number of balances you need to send over an order link and price quote.

Handy Person from Denver

Oct 30, 2024 9:53 pm

I will need 6 balances, and the 19-030 clips please

Casey from SWISCO

Oct 31, 2024 8:17 am

Great, we just sent over an order link and price quote for you to review. Keep in mind that the 19-030 s-clips are not included in the link but can be added to the same order by clicking add to cart from the product page. Take a look and let us know if you need anything else. Thank you!
