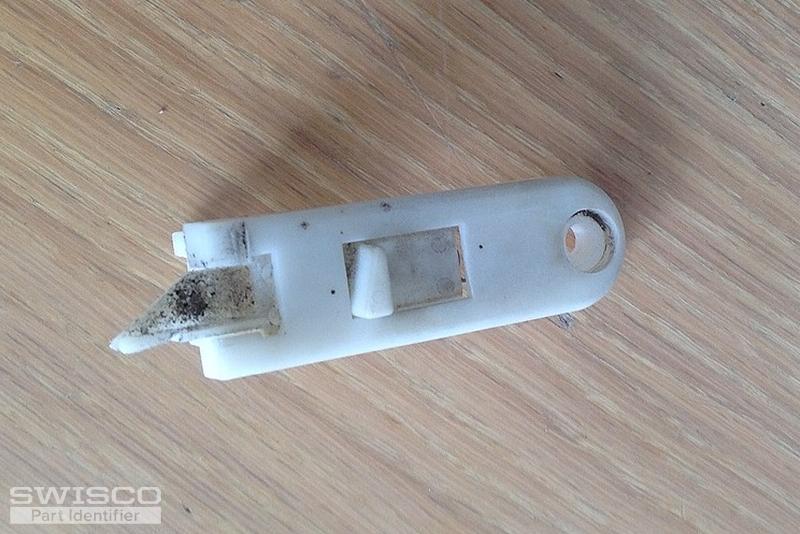

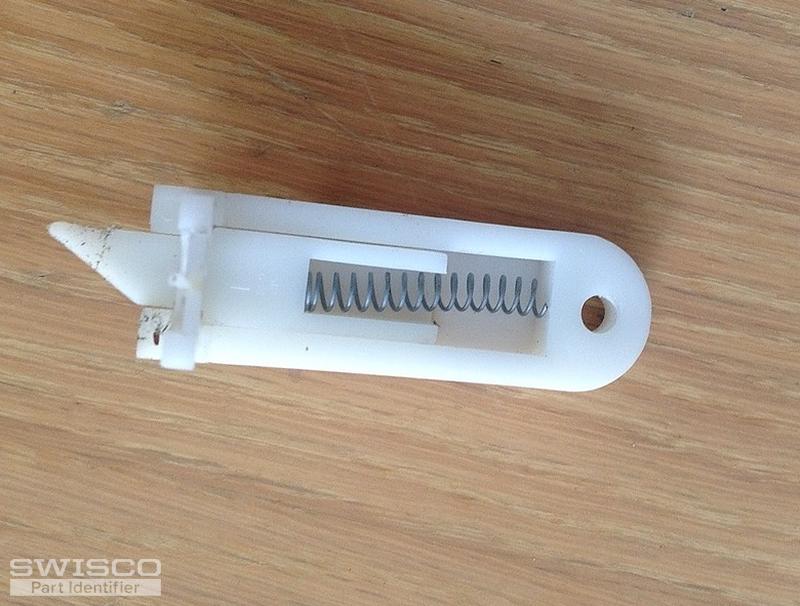

The width is 3/4 inches, the length is 2 1/4 inches and from the end of the bracket to the center of the screw it is 2 1/8 inches. The piece that goes down the side is 5/8 inches wide and 7/8 inches in length with s screw holes at the end.
Bob from SWISCO responded:
September 17, 2019
Hello there. Check out our 26-089P. Look these tilt latches over and let me know if they're what you're looking for.
