Tilt latches for a vinyl window. Balance shoes : SWISCO.com

Contractor from Buffalo NY

Jul 10, 2024 12:34 pm

Tilt latches sizing
top length is 2 7/8
Depth is 3/8
top width is 3/4

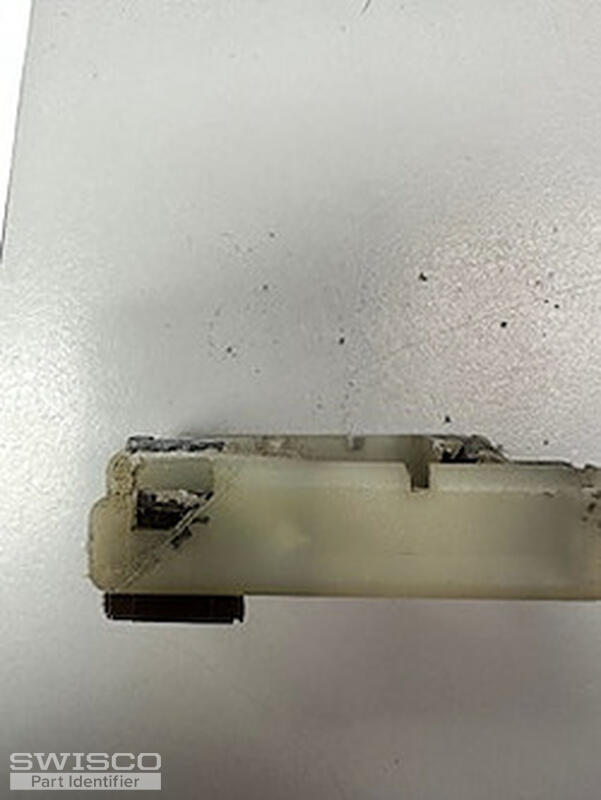

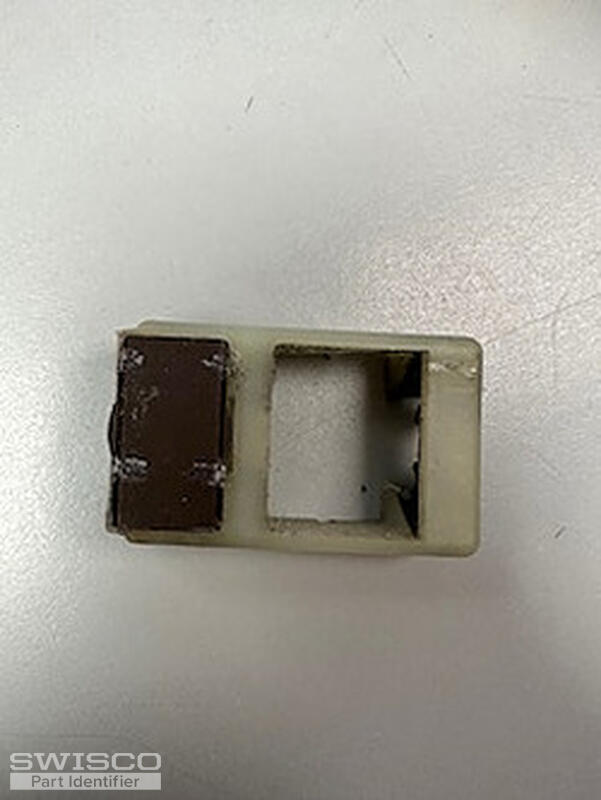

Balance shoe
Length is 2 1/8
width is 1 1/4
Depth is 1/2

5 user uploaded images

9 Replies

Emily from SWISCO

Jul 11, 2024 11:46 am

Hey there!

Thanks for reaching out to us. The 26-390 and 26-391 resemble your old tilt latch. I recommend you compare our dimensions with yours to see what you think.

Alternate image for 26-390

detail of 26-391

As for the pivot shoe, the 15-046 is 1/2" thick and 1-1/4" wide. See how the style compares with your old part.

Alternate image for 15-046

Detailed image of the pivot bar slot of the 15-046 pivot shoe.

Contractor from Buffalo NY

Jul 11, 2024 12:06 pm

The tilt latches are perfect.

While the pivot shoe size is good, the pivot bar slot on the old ones are metal.
The pivot bar is more oval, not the usual U shaped.
More like 26-226

Contractor from Buffalo NY

Jul 11, 2024 12:08 pm

How about 15-188?

Emily from SWISCO

Jul 12, 2024 8:11 am

I'm afraid I can't be sure without seeing the front of the pivot shoe. Would it be possible to see a photo of that?

Contractor from Buffalo NY

Jul 15, 2024 6:37 am

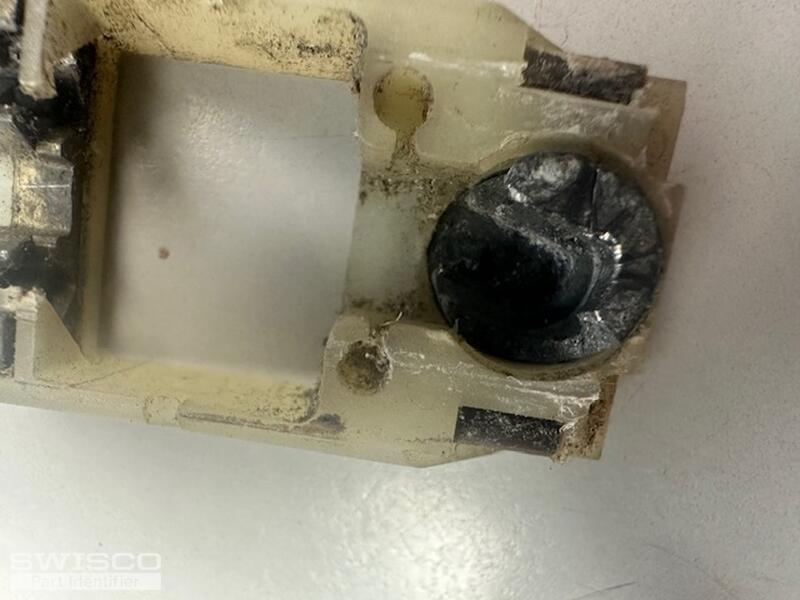

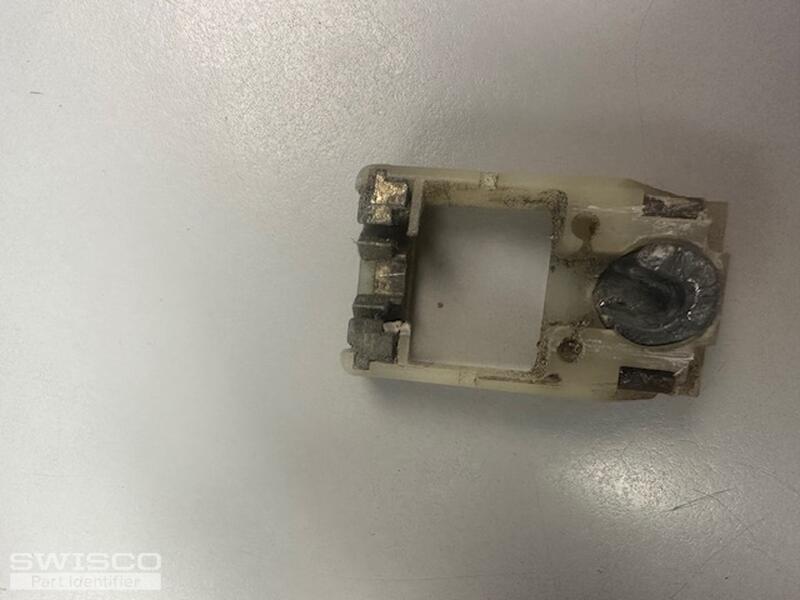

Here is pivot shoe photo.

2 user uploaded images

Emily from SWISCO

Jul 15, 2024 8:22 am

Thank you! The 15-188 indeed looks like what you may have here. This pivot shoe is 1/2" thick but we also have the 15-178 which is 17/32" thick. Take a look and see which one is the better match.
