Tilt sash window pivot bars

A handy person from Dearborn, MI USA says:
April 28, 2018

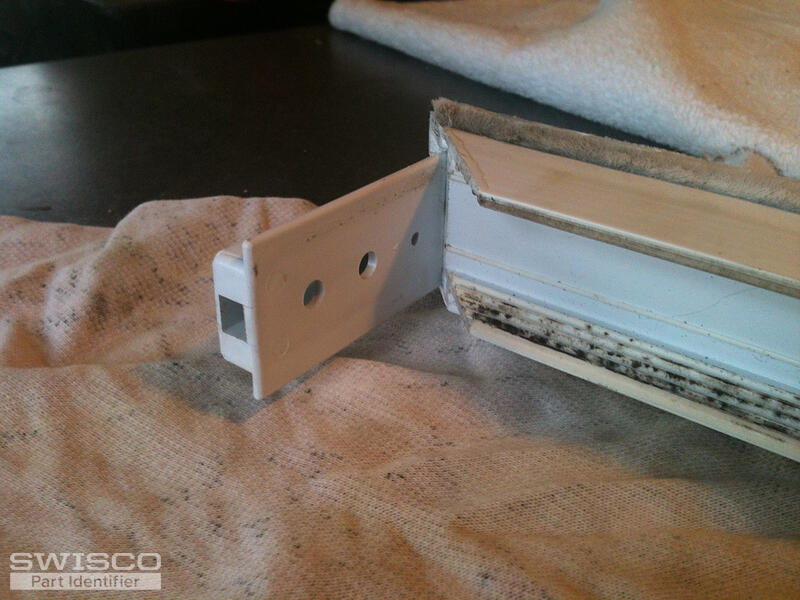

Similar to your 26-129 but not quite the same. Overall length: 3 3/4 inch. Main body: 11/16 x 1 19/32 . Nose: 1/4 x 3/8. Tail: 1/4 x 1 25/32. Thickness: 7/32. No brand or number on pivot bar. Aluminum frame of sealed glass stamped as ALWCO-84. Same vinyl pieces inside the four corners of vinyl window frame is used to hold the pivot bars and spring loaded latch.

Any suggestions much appreciated.

Thanks

Keith

Thumbnail of the uploaded file named IMG_1419.JPG
Thumbnail of the uploaded file named IMG_1425.JPG
Thumbnail of the uploaded file named IMG_1430.JPG
Thumbnail of the uploaded file named IMG_1437.JPG
Thumbnail of the uploaded file named IMG_1438.JPG
Profile picture of Paul
Paul from SWISCO responded:
May 4, 2018

Hey, Keith. Looks like you have an old Acro/Slocomb window whose parts are no longer being made. Our 26-129 is a newer style. You could try filing the rounded end to fit in the pivot shoe, or consider trying to use our 26-040 pivot bar as a substitute.
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
Pivot bar, Slocomb
Pivot bar, Slocomb
26-129
$3.32
