Tilt shoe identification

Contractor from Maryland

Nov 6, 2013 5:17 pm

Looking for tilt shoes. They attach to the end of a standard channel balance and are marked with Pat # 4610108. Used in a new construction vinyl double hung widow.

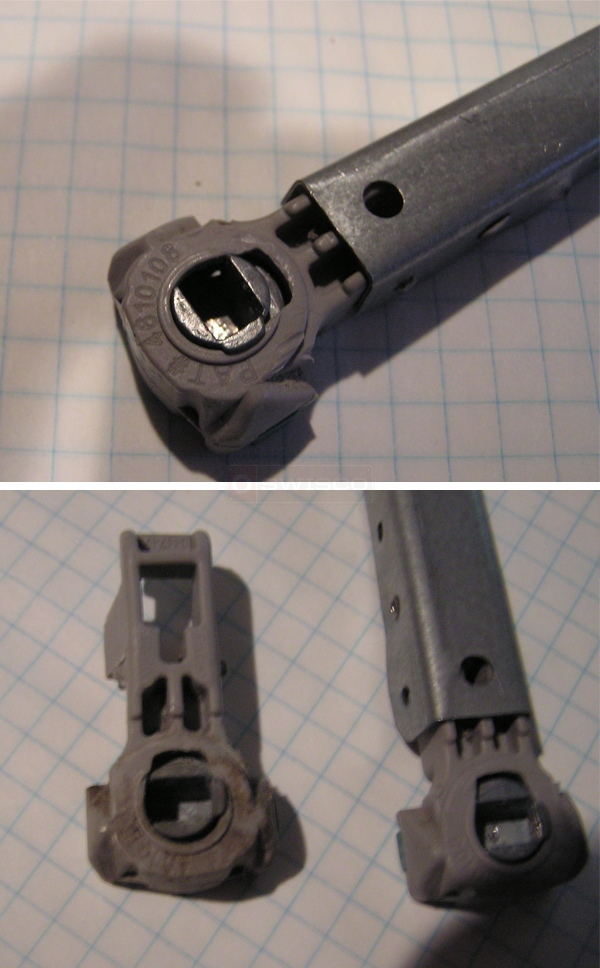

User submitted photos of a window balance.

5 Replies

Casey from SWISCO

Nov 7, 2013 2:13 pm

Hi! This looks similar to SWISCO product code 15-194, take a look and compare measurements.

Contractor

Nov 7, 2013 5:20 pm

That's it!

Thanks

Contractor

Nov 7, 2013 5:41 pm

I need to pair it up with a 36c balance and can't seem to find them.

Paul from SWISCO

Nov 8, 2013 9:53 am

The S795-36 balance with 36C option comes with the 15-195 shoe (similar to the 15-194 just wider). You can order the S795-36 and the 15-194 shoes separately and swap them out to make the needed replacement balances.
