Tilt window

A landlord from Maryland says:
December 17, 2021

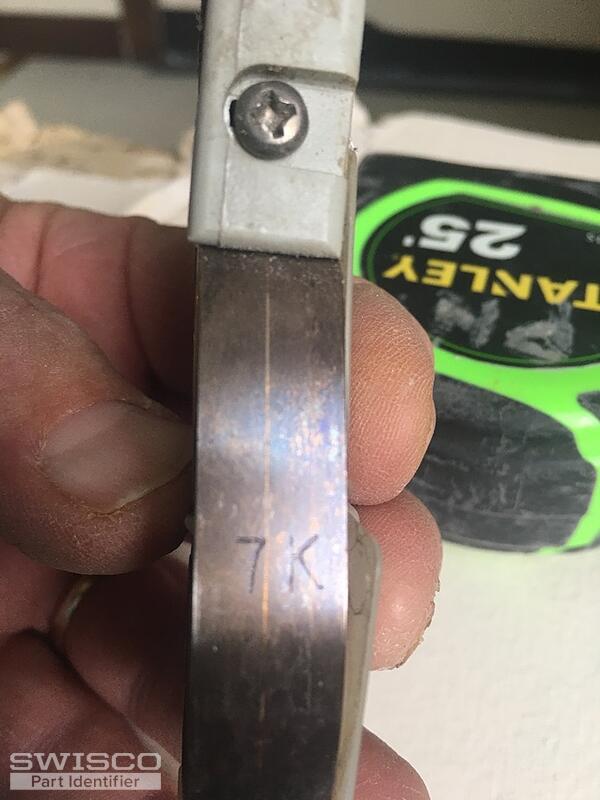

Window device has a spring with "7K" imprinted on it.

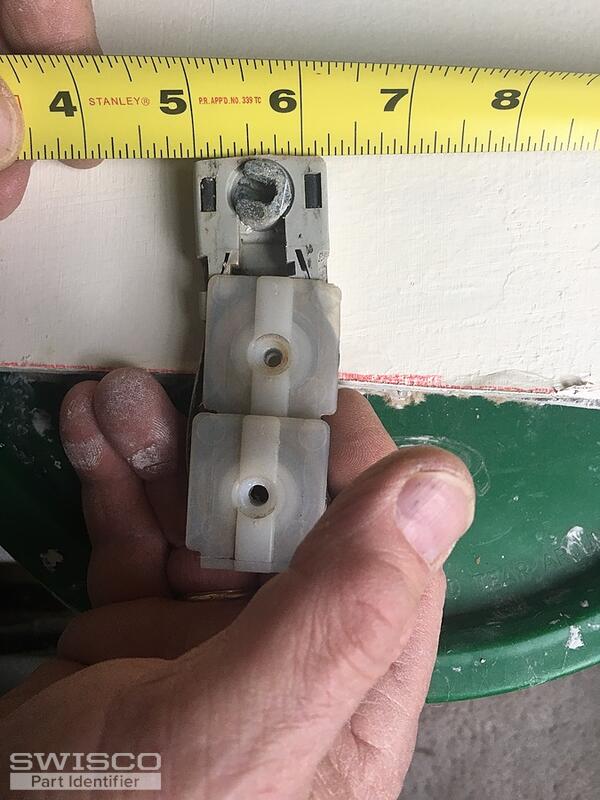

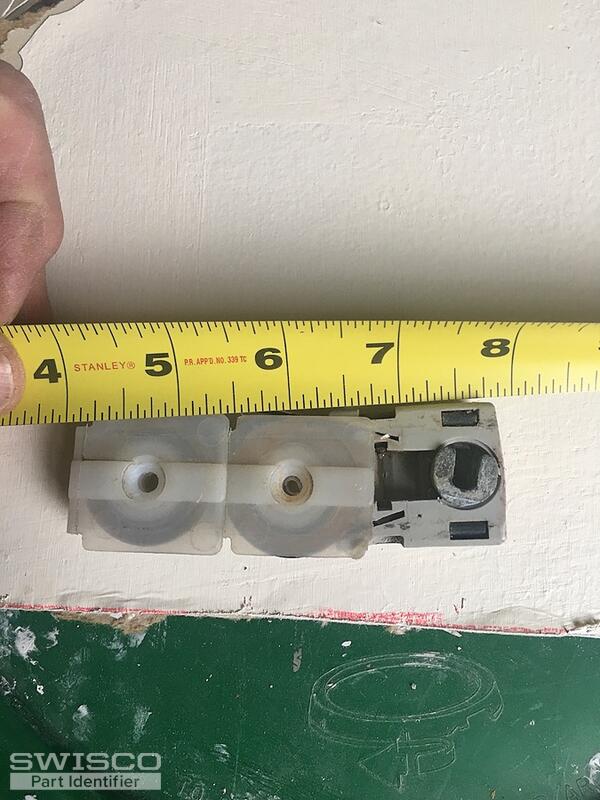

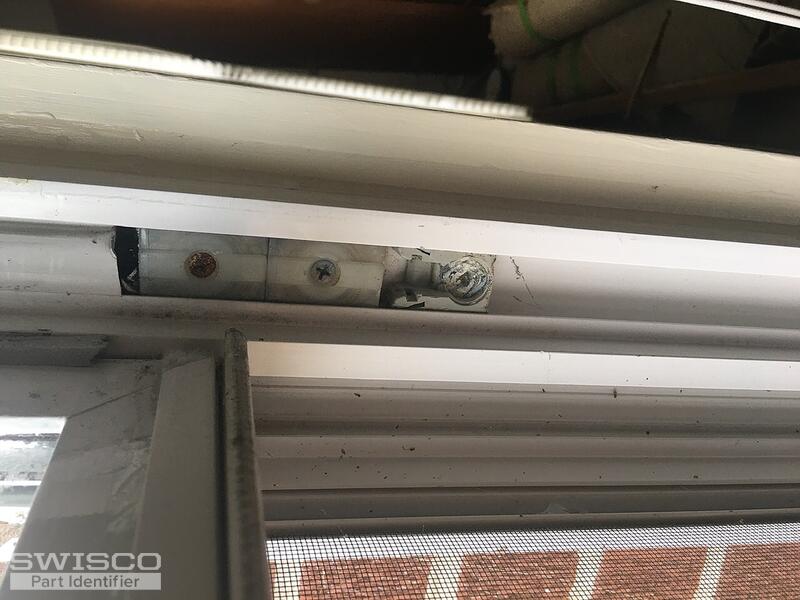

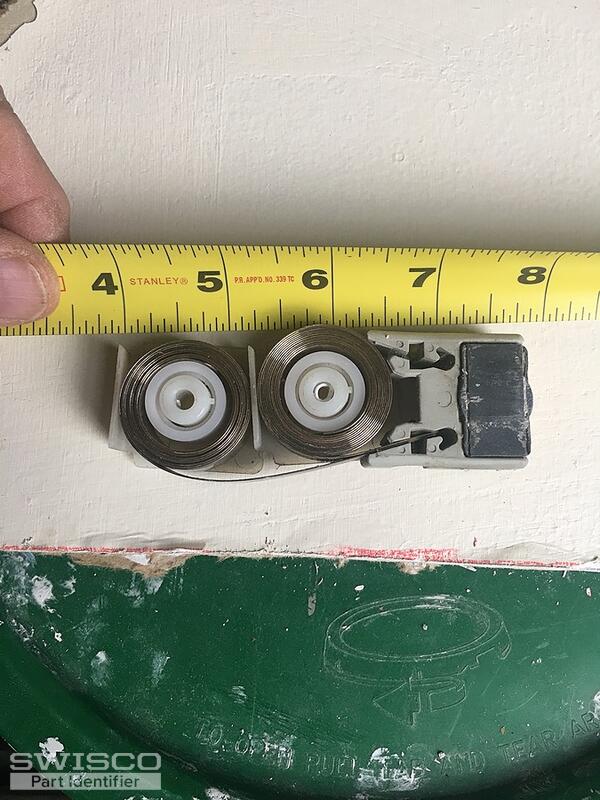

Thumbnail of the uploaded file named 3CE5021E-A5A1-455B-B7A1-FD2BBD6B0B1A.jpeg
Thumbnail of the uploaded file named 59E5F2D0-FA82-4A49-B0E4-8E4BF4F6D693.jpeg
Thumbnail of the uploaded file named 7F638FE2-6822-4F89-9F35-45EAAD909606.jpeg
Thumbnail of the uploaded file named 752C78E0-D82A-4C77-AF3B-6473F51EE62D.jpeg
Thumbnail of the uploaded file named 6430CFFF-5ACF-4BD5-A622-9B39804DC083.jpeg
Profile picture of Lauren
Lauren from SWISCO responded:
December 20, 2021

Hello, thank you for posting!

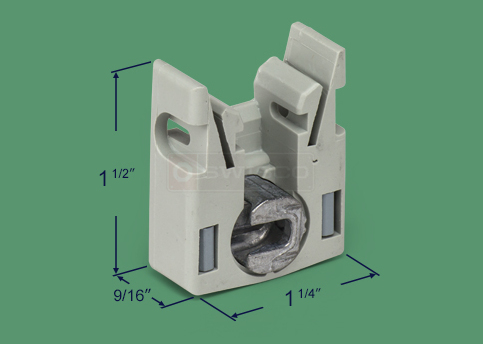

Your pivot shoe resembles the 15-177 that is compatible with the Series 152 coil springs. Please compare the dimensions below. The 7K should indicate that each individual coil can hold 7 pounds. To confirm, if you have 2 coils on either side of the window, your window sash should weigh 28 pounds. Please let me know if you have any questions.

Swisco.com
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
7 lb Series 152 Coil Balance
7 lb Series 152 Coil Balance
S152-7
$4.80
