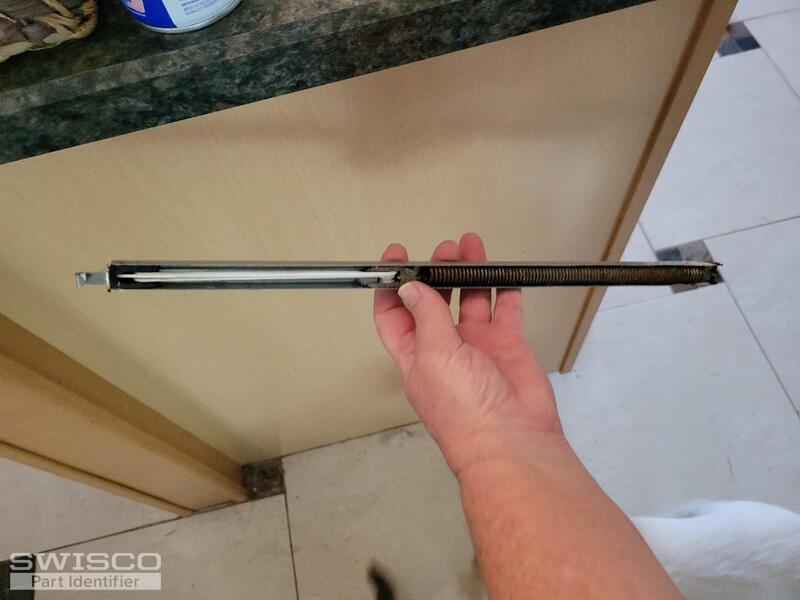

16 inch, stamped numbers: 16C BSI RG(small stamp, difficult read) Pivot lock shoe was difficult to remove, slid up the channel but it did not have wider gap? I don't see a match here.
Pivot bar is 2 1/2 inches
I need the window channels, the pivot lock shoes and the pivot bars. I also need suggestions how to install the pivot lock shoes without the widener in the channel area.
Also, the top of the channel does not have a screw, it has a "hook".
Thanks!
Hello,
Thanks for writing in! Your balance shoe appears to be our Series 795 Channel Balance used along with a 1-1/4" Close Cam, T-Lock Shoe. This shoe comes equipped on the balance as part of the complete assembly. Since your balance is stamped with a 16C, you'll need the S795-16.
I believe the 2-1/2" pivot bar you are looking for is the 26-021. Although, you should carefully compare the dimensions to confirm that this is the right replacement.
Alternate image for 26-021
Since the space where your balance hook attaches to the top of the window is square in shape, you should be able to use our 26-200 balance screw plug along with the 33-016 screw. Take a look at the video below to for a visual demonstration on how to install the screw plug.
