Please confirm tilt window latch #26-419 & 26-420 will fit 15 year old TRACO windows. The dimensions appear to be in-syce with your schematic drawing.
Thanks - Dan
Tilt window latch for 15 year old TRACO double hung windows
Handy Person from Pennsylvania
Jun 17, 2023 12:25 pm

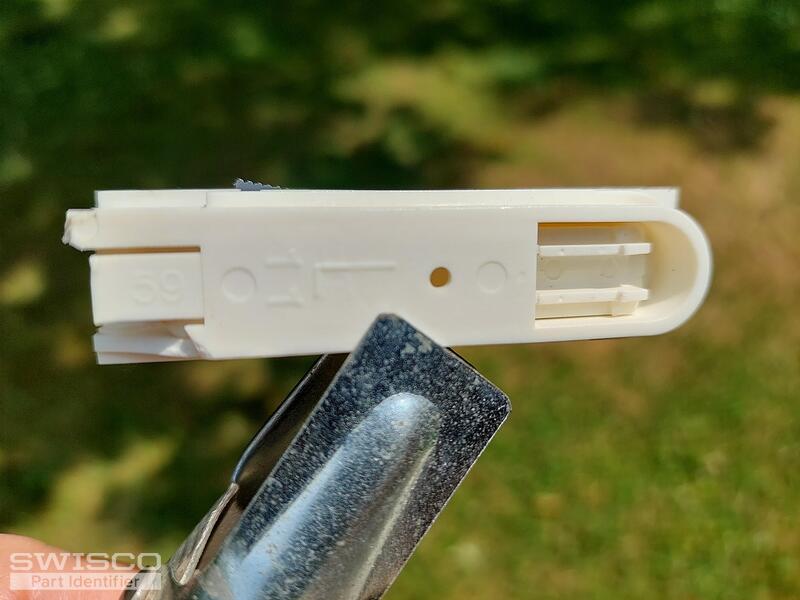

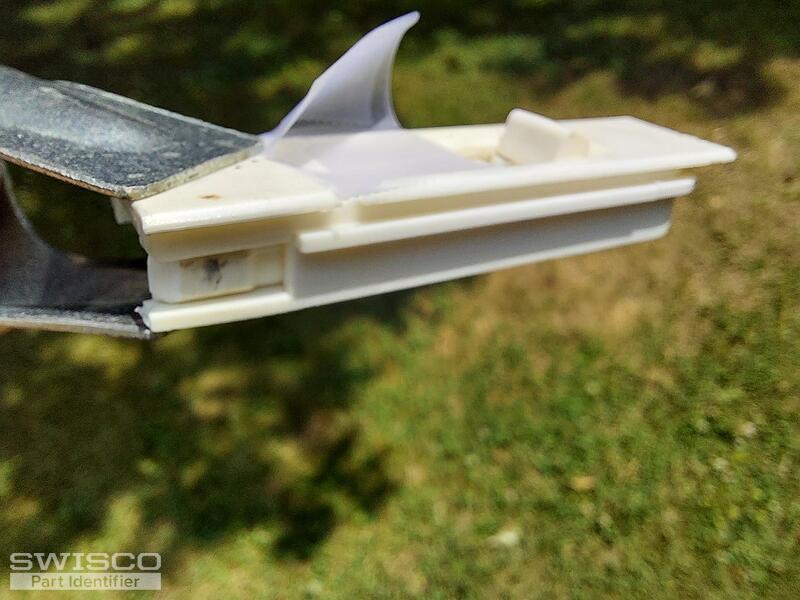

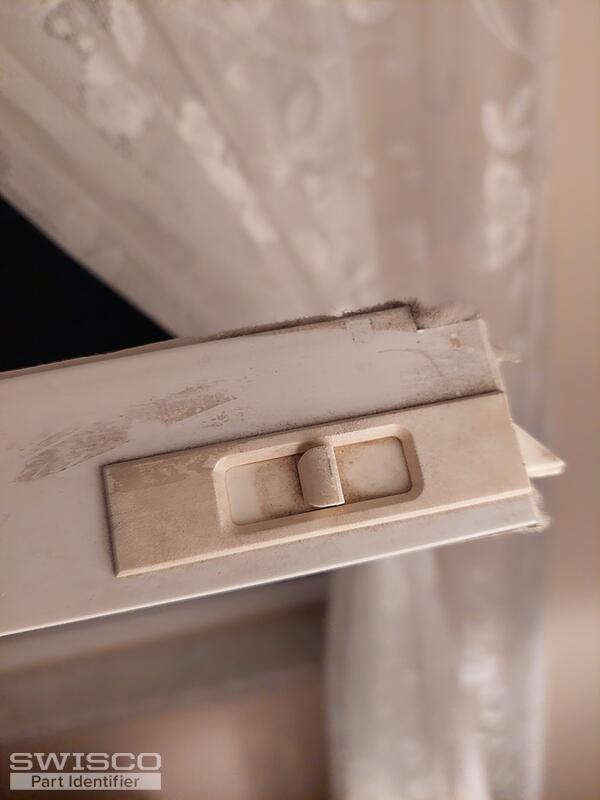

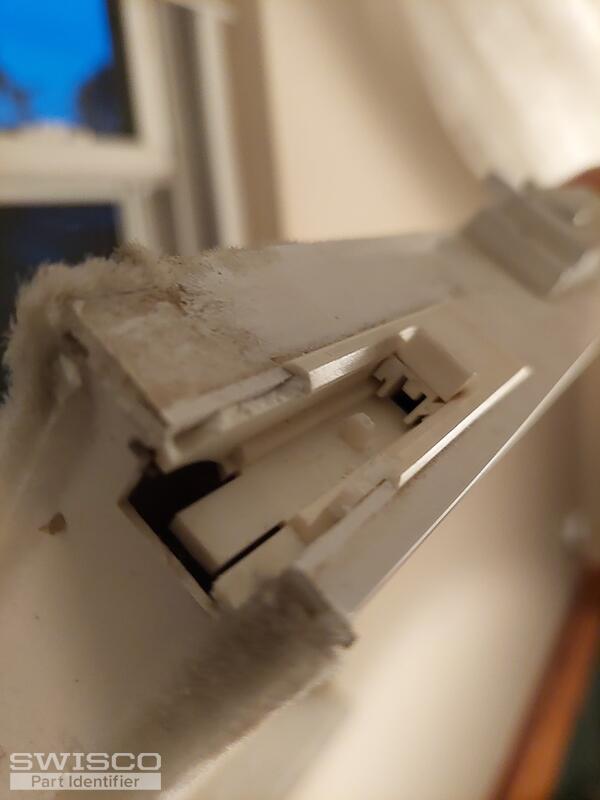

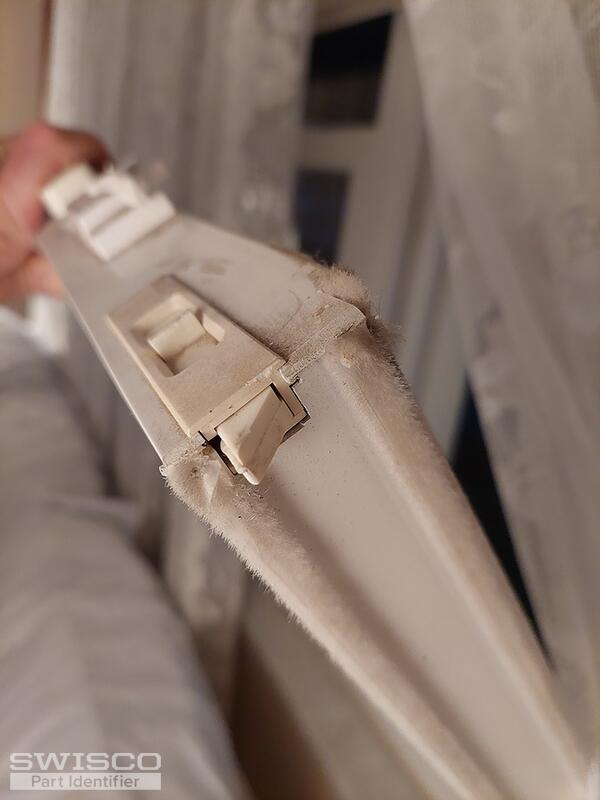

5 user uploaded images
4 Replies
Bob from SWISCO
Jun 18, 2023 5:12 pm
Thanks for posting. The other possibility is our 26-243 and 26-244. You'll find this pair has dimensions nearly identical to the 26-419 and 26-420, save the difference in the length of that tab on the latch's underbelly. For the 26-419 and 26-420 this dimension is 3/8"; for the 26-243 and 26-244 it is 3/16". See the diagrams below for reference. Compare with an undamaged tilt latch to confirm which set matches best.
Alternate view of 26-243
Alternate view of 26-419
Handy Person from Pennsylvania
Jun 19, 2023 1:24 pm
Looks like I have the 26-243/244 with 3/13" tab. Thanks for the help!
Tom from SWISCO
Jun 20, 2023 12:51 pm
You're welcome! Please feel free to reach out if you had any other questions.
