Tilt window locking mechanism

A home owner from Cincinnati, OH says:
May 16, 2019
my son broke both tilt lock pieces on one window. everything still works but i would like to replace them. included label of window.

he also broke whatever keeps the window up when you open it, on another window, see pics image1,2,3.

much obliged if you could help ID the parts needed.
kids are hard.
Thumbnail of the uploaded file named window pic - broke part.jpeg
Thumbnail of the uploaded file named window pic - label.jpeg
Thumbnail of the uploaded file named image3 small piece from image2.jpeg

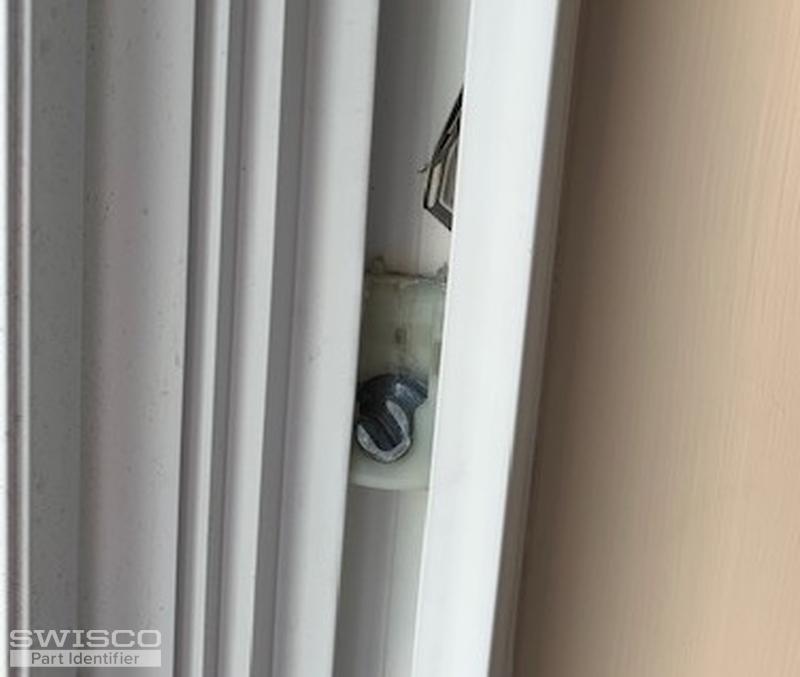

Thumbnail of the uploaded file named image1 broke piece in window frame.jpeg

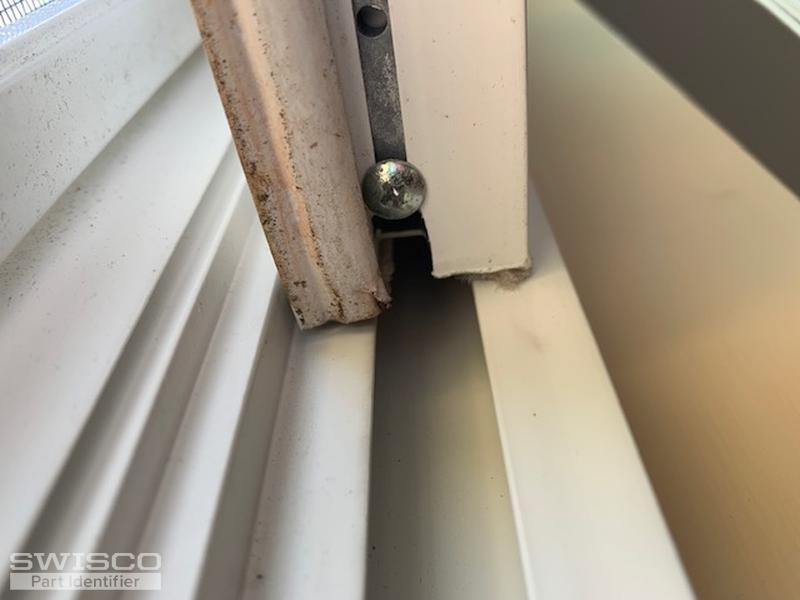

Thumbnail of the uploaded file named image2 where small piece came from.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 20, 2019

Thanks for posting! Looks like you need a new tilt latch and a new pivot bar. For the tilt latch, see our 26-243 and 26-244. I think these will match pretty well, but you might want to compare our dimensions to your own just to be 100% sure.

I'm less confident about the pivot bar, but my gut is telling me to go with the 26-378. Look over our dimensions for this one, too, especially the hole positioning. That's probably what's most important.

Let me know what you think!
A home owner from Cincinnati, OH says:
May 22, 2019
Tom - thank you very much!! It looks like those are the parts, I have them ordered.
Thanks again, much appreciated!
Profile picture of Tom
Tom from SWISCO responded:
May 23, 2019

You are very welcome. Be sure and get back to us and let us know how everything worked out for you.
Profile picture of Tom
Tom from SWISCO responded:
May 30, 2019

Great!! We are so happy to hear that everything worked out as you had planned!!
A home owner from Cincinnati, OH says:
May 30, 2019
I got the parts awhile ago but just got around to installing them yesterday. It took me maybe 10 minutes. Everything fit great, no problems at all.
Thanks for all your help, much appreciated!
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
3" Pivot Bar
3" Pivot Bar
26-378
$2.10
