Tilt window parts

Home Owner from Dracut, MA

I have 10 to 12 windows that need a combination of the parts included in the attached photo. Need help distinguishing which parts to order. No clue who is the manufacturer is. I've also included a couple of labels that are in side the window.

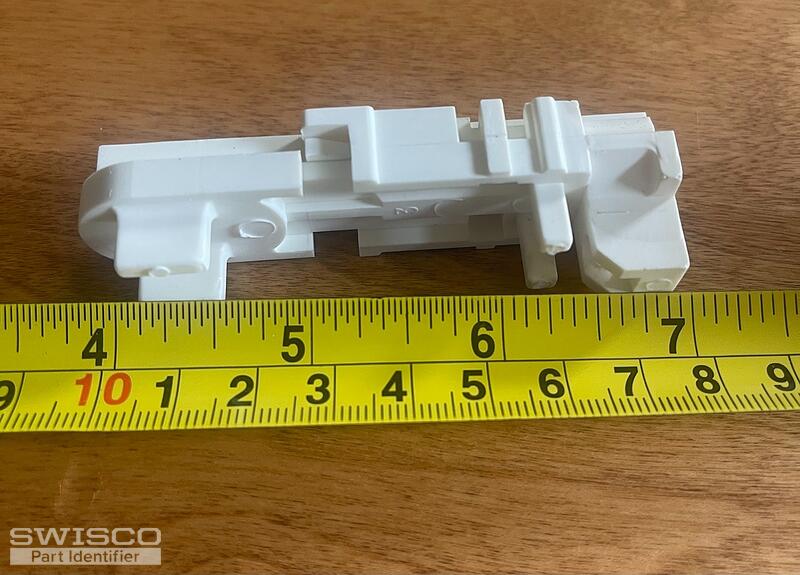

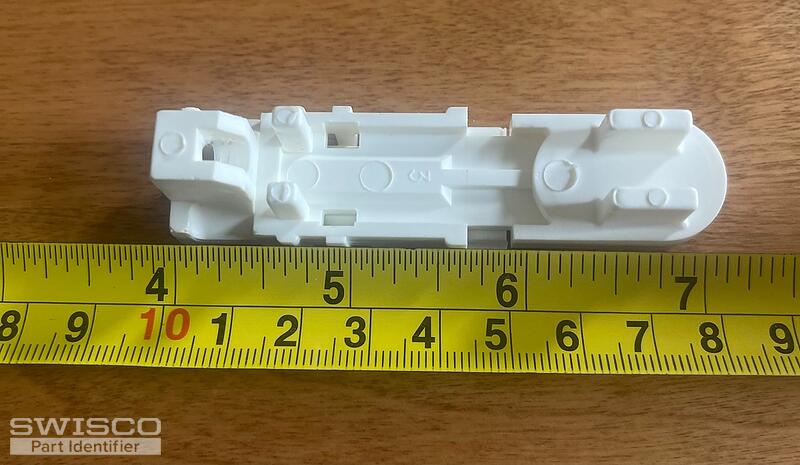

I also need two internal top tilt latch locks, Left and right.

5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I'm sorry to say that both the coil balance assembly and tilt latch you show in these photos are discontinued. We sold each part at one point, but over the years they all became obsolete.

The good news is that we do have alternative solutions for each instance. Starting with the coil balance, you can use our 15-177 pivot shoe and Series 152 spring (sold separately). I'd recommend reusing the old plastic cover, since it's not made anymore and it might make your project easier. Otherwise you can use our 15-143 bushing, 15-144 bushing cap, and 15-145 support barrel. These kind of "sandwich" over the spring to form a cartridge, which serves the same function as your old cover.

As for the tilt latch, this is going to take some handiwork. What you want to do is use one of our surface mounted tilt latches and screw it directly to the top corners of your sash. This will require drilling new holes. The video below will go into more detail as to what exactly is required.
