Tilt window parts

Start a new Discussion

Quick Learner from USA

Jun 26, 2017 4:56 pm

Need pivot blocks and balancers for single hung vinyl tilt window
Balancer says DB A04 29C
Pivot block measures 1 5/8"

4 Replies

Tom from SWISCO

Jun 29, 2017 11:42 am

We may be able to help. Before we recommend anything, can you tell me the width and thickness of the pivot shoe? Can you also show me a picture of the clip at the end of the balance cord, or whatever shoe is at the bottom?

Quick Learner from FL

Jun 29, 2017 3:13 pm

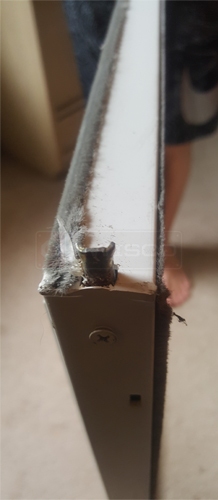

this is a cheap system, can i convert it to spiral balancers with new pivot blocks ?

balancers were 29" pivot blocks measured 1 5/8"x 1 1/4"x 5/8". if i need to change the pivot pins at the bottom of window thats no problem

Paul from SWISCO

Jul 3, 2017 10:38 am

That tilt bar with a flared end was an old discontinued part we used to carry. It's not made anymore, but the manufacturer recommends the 26-068 as a replacement. Our 1-1/4" wide 15-129 pivot should work also for your window. Finally, for the balance system, see our S770-29 with a 29C option. This may be what you want.
