Tilt window pivot lock shoes and pivot bars

Hello, thank you for posting,

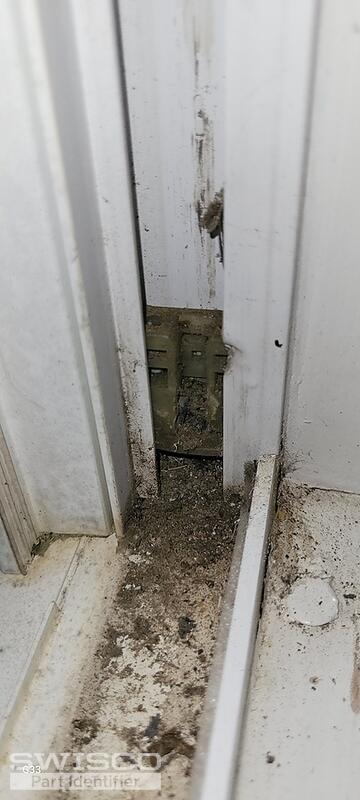

Your pivot shoe resembles the 17/32" thick 15-199 style. Please compare below to confirm a good fit!

Alternate view of 15-199

This shoe is compatible with either the 1/2" thick Series 160 or the 3/8" thick Series 165 coil springs. To further review, are you able to confirm the thickness of the original springs and any markings on the metal spring? How many are used on each side?

For the pivot bar, would it be possible to see an undamaged version removed with dimensions? Thank you!
