Tilt window pivot shoe

Quick Learner from Edisto Beach
Jul 20, 2024 10:28 am

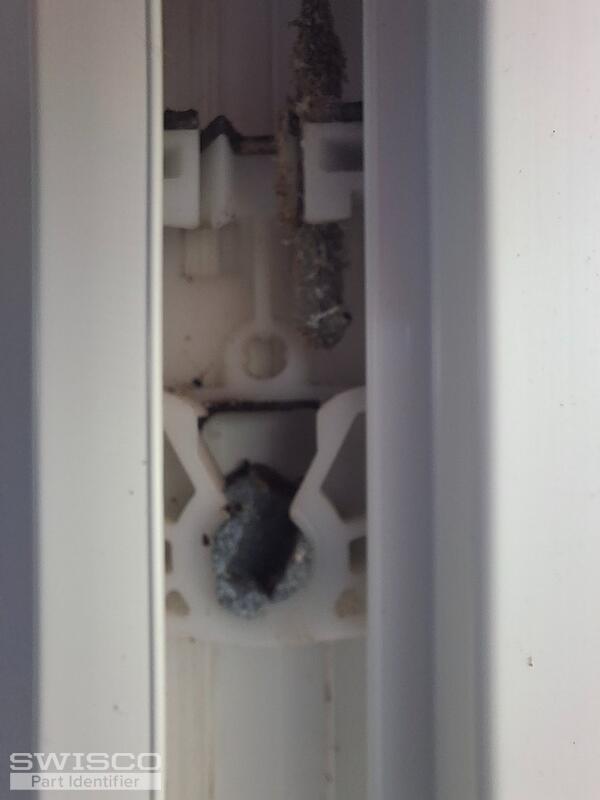

This pivot shoe is from a PGT 2860 DH impact window. It measures 2" high 1.25" wide and 1/2" deep. There is no cut out in the channel so I would need to cut the vinyl track frame to remove the pivot shoe.
20240720_091848
1 user uploaded images
1 Replies
+ Add a Comment
Bob
Bob from SWISCO
Jul 20, 2024 3:48 pm
SWISCO
EXPERT

Hello there. This pivot shoe might be either the 15-135, which is 1/2" thick, or the 15-129, which is 9/16" thick. See the diagrams below. Compare both with your old shoe to see what matches best. It is generally best to remove the shoe to get the most accurate measurements possible. See the guide on how to make a cutout below.

Alternate image for 15-135
Alternate image for 15-135
Detail of 15-129
Detail of 15-129

+ Add a Comment
