Tilt window replacement parts

A quick learner from Sacramento, CA says:
The pictures show the replacements needed. I didn't see any distinctive markings on the items. I do have a few more pictures, if necessary. These pieces are from a window by Empire Windows. Thank you.
Thumbnail of the uploaded file named IMG_0761.JPG
Thumbnail of the uploaded file named IMG_0763.JPG
Thumbnail of the uploaded file named IMG_0766.JPG

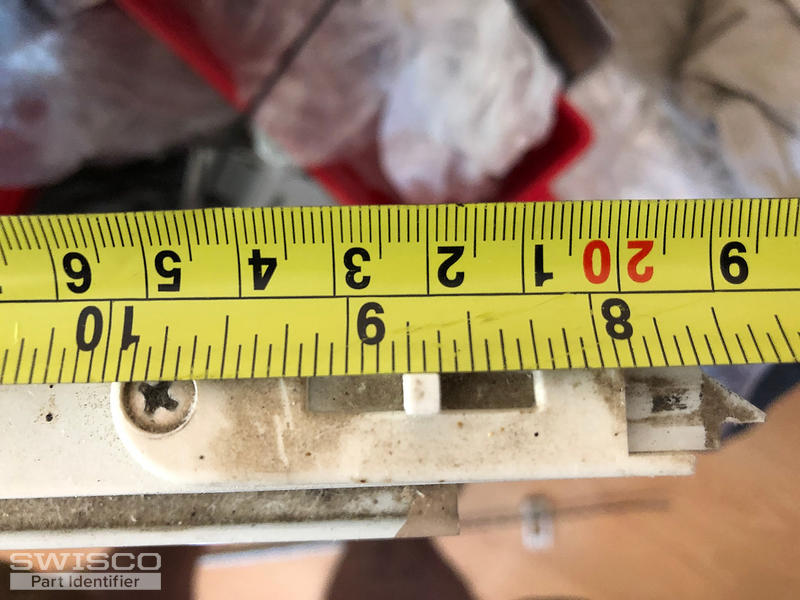

Thumbnail of the uploaded file named IMG_0771.JPG

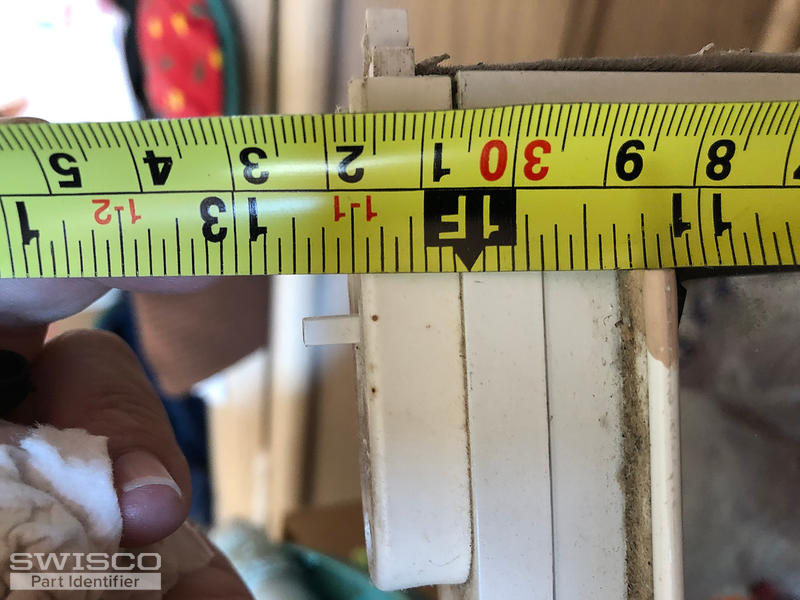

Thumbnail of the uploaded file named IMG_0772.JPG
Profile picture of Tom
Tom from SWISCO responded:

Looks like you need a new spiral balance, pivot shoe, and tilt latch. For the spiral balance, see our Series 900 to start out. Just make sure the diameter of your tube is 3/8".

I don't know what your pivot shoe is, unfortunately. The height is not an important dimension. Can you tell me its exact width and thickness? Please be as precise as possible.

As for the tilt latch, our 26-089P is similar. Carefully compare our dimensions to yours to be sure.

A quick learner from Sacramento, CA says:
Hello and thank you for the reply.

Regarding the pivot shoe, it's an inch wide and approximately 9/16" thick.

Thanks again.
Profile picture of Tom
Tom from SWISCO responded:

Thanks! consider our 15-173. This matches your dimensions pretty closely and I think is our best option.
