Tilt window spring and rotate

Quick Learner from Brunswick, GA 31523

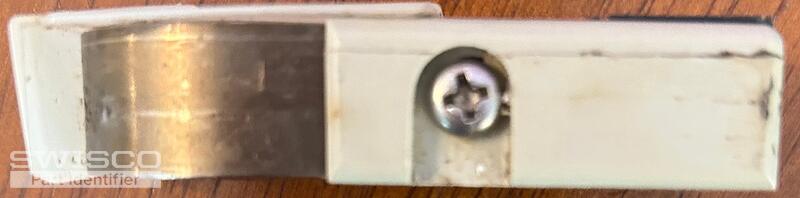

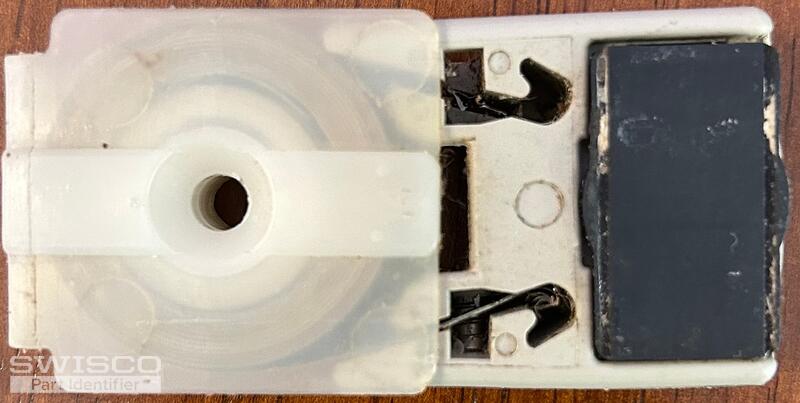

This is a part we also need replaced. Without the plastic spring retainer, it's 2 3/8" x 1 1/4" x 2 1/2". With the retainer, it's 2 1/2". We need 2 of these - the metal part which holds the pivot bar is completely reamed / wallowed out.
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. This looks like the 15-177 Pivot Shoe, which works with Series 152 Coil Balance springs. Let me know if you have questions.

Alternate image for 15-177
Alternate image for 15-177
