Top Sash Guides and Channel Balance Replacements

Hello Swisco Experts,

I need to replace the top sash guide for my Window World vynal windows, along with a few channel balances and would appreciate some help identifying the correct replacement parts.

I've added some pictures for reference, but since I could only add 5, I tried to give as much detail in the description as I could.

The top sash guide measures:
lenght = 1 7/16"
width = 5/8"
depth 1 = 9/16"
depth 2 = 3/8"
lip = 1/2" from the top.
screw hole = 7/8"


I have 2 different size windows.

Window 1:
The first is the smaller size widow and it have already had at least one channel balance replaced, so I have 2 pictures for this type window.

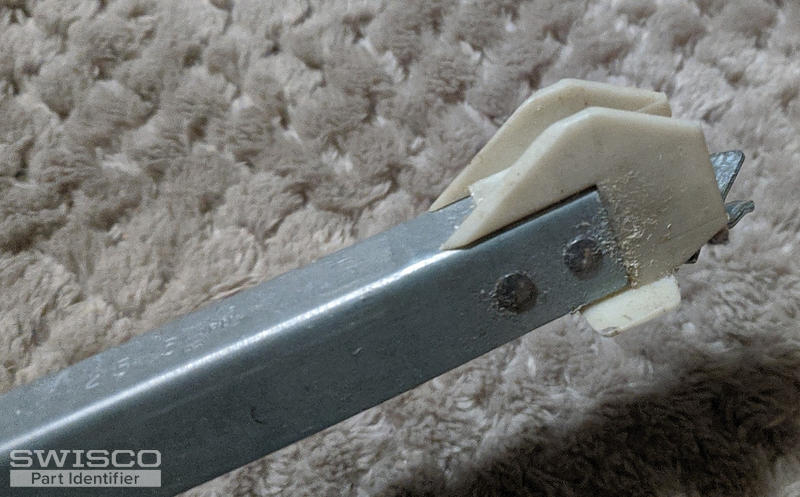

Channel Balancer 1:

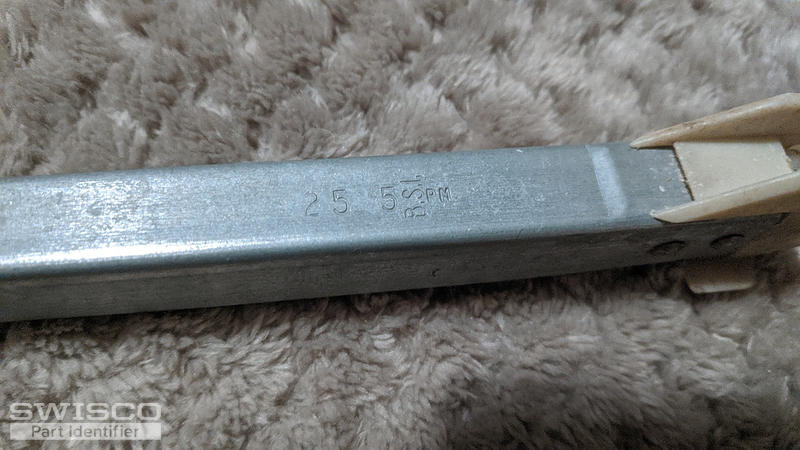

Stamp 25 5 B.S.I. PM
Length = 25.5
Top boot:
wings 15/16*
width = 9/16"
height = 3/4"
depth = 1/2"
Bottom boot
wings 15/16*
width = 9/16"
height = 7/8"
depth = 1 1/16"

Channel Balancer 2

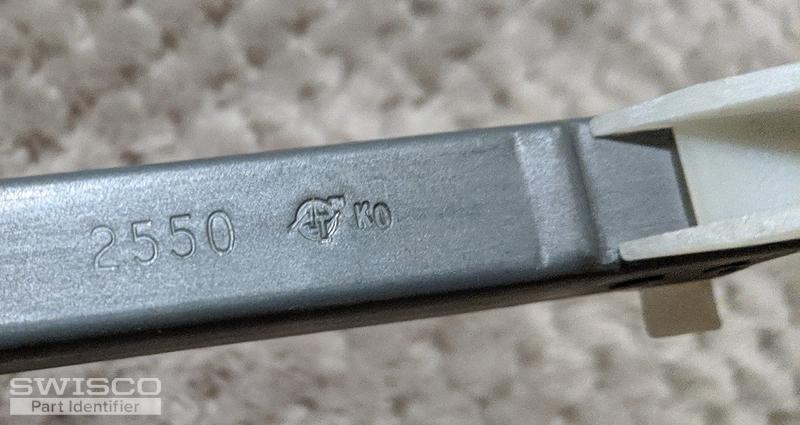

Stamp 2250
Length = 26
Top boot:
wings 15/16*
width = 9/16"
height = 3/4"
depth = 1/2"
Bottom boot
wings 15/16*
width = 9/16"
height = 1/4"
depth = 1 1/16"


Window 2:
The second is the larger windows and both channel balances I have are the same.

Channel Balancer:
Stamp 31 5 B.S.I. PM
Length = 31.5
Top boot:
wings 15/16*
width = 9/16"
height = 3/4"
depth = 1/2"
Bottom boot
wings 15/16*
width = 9/16"
height = 7/8"
depth = 1 1/16"

Thank you in advance for your help.

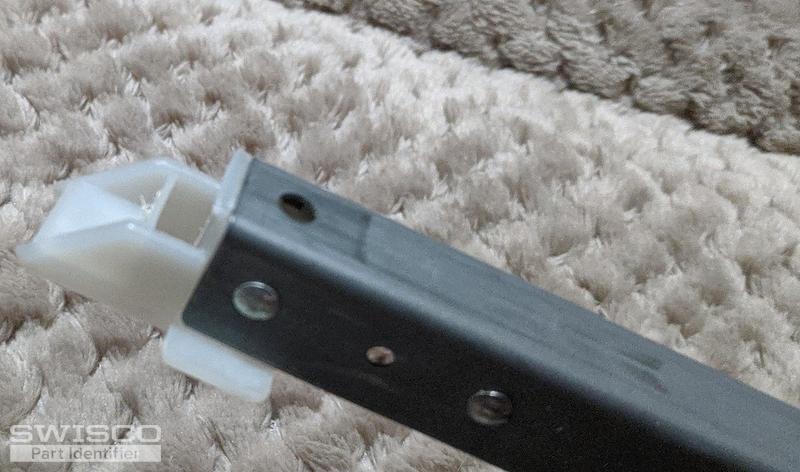

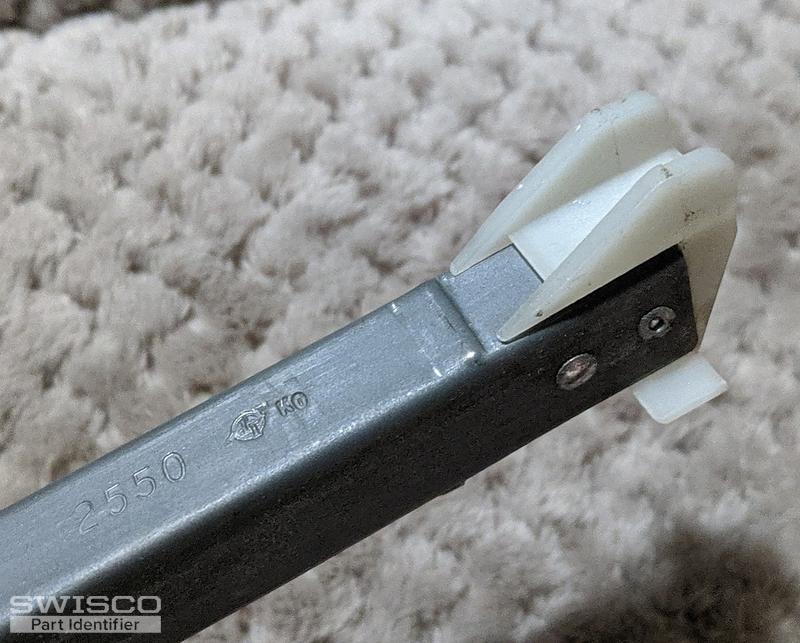

Thanks for the reply. I tried to add more photos, previously, but I guess there is a limit. I'm adding a few more. The first 3 are for the Window 1, Channel 2, Stamp 2250.

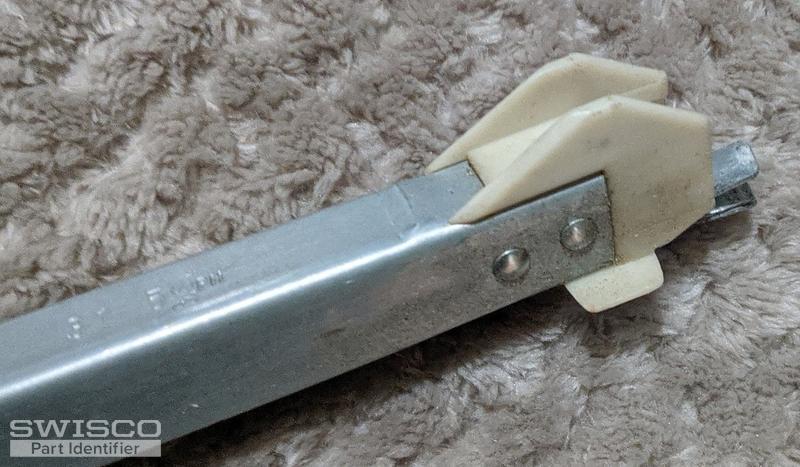

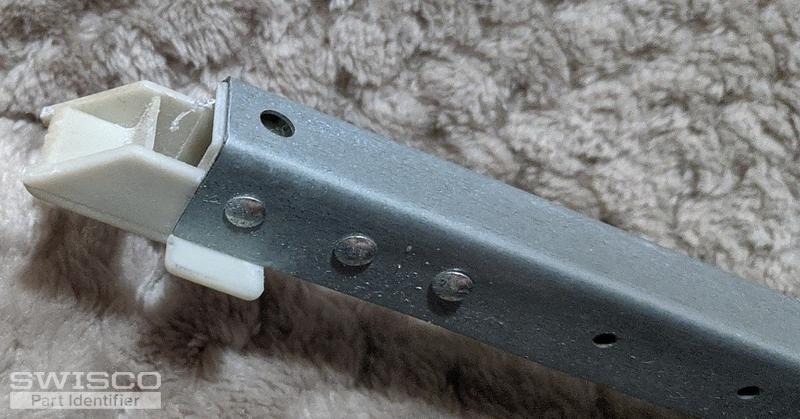

The last 2 are for the Window 2, Stamp 31 5 B.S.I. PM.

I hope that helps.

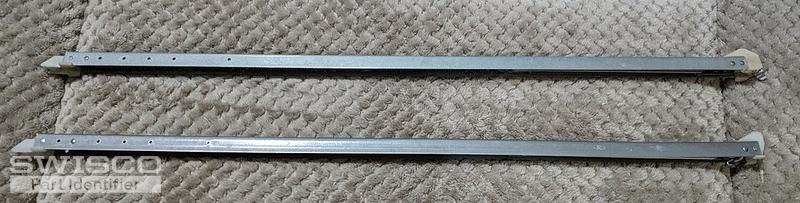

Here is one more photo showing both Window 1 channels next to each other.

Hope that helps.
