Triple coil

Question

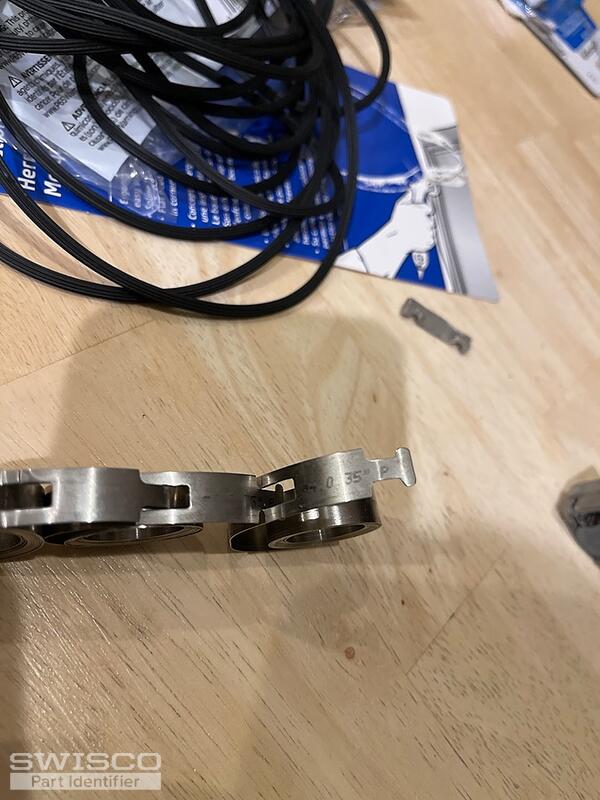

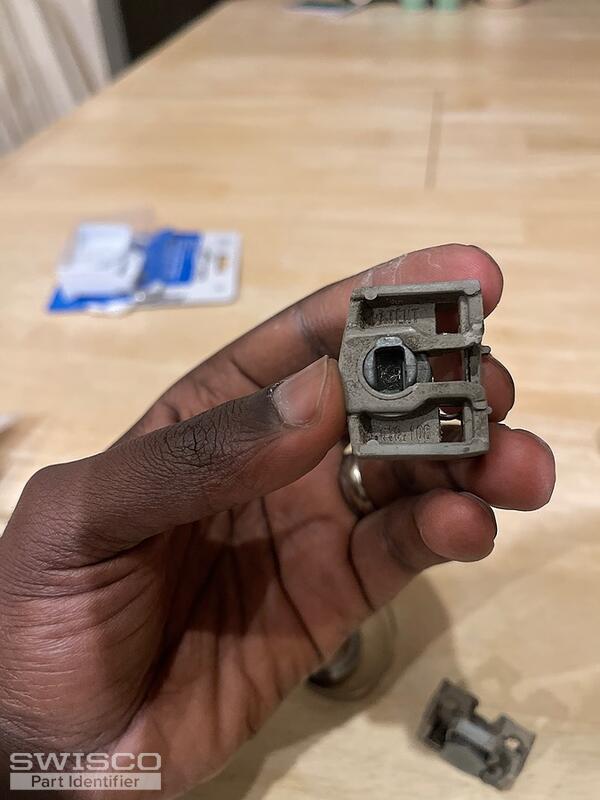

Hi, I need help identifying these parts and being able to ultimately purchase them. I have around six windows in my house that need them replaced. I will also need the housing that goes with them.

Tom · Accepted Answer

Hello! We can supply these parts, but only as individual components rather than as a kit. See our 15-111 pivot shoe, as well as our 3/8" Series 165 coil spring and 15-205 triple spring cover.

I would also recommend that you measure your spring to ensure that it is 3/8", just to be safe. The 15-111 is also compatible with the 1/2" Series 160, which uses its own cover. Just something to keep in mind.
