Trustgard window

A quick learner says:
October 24, 2022
Dear sirs:

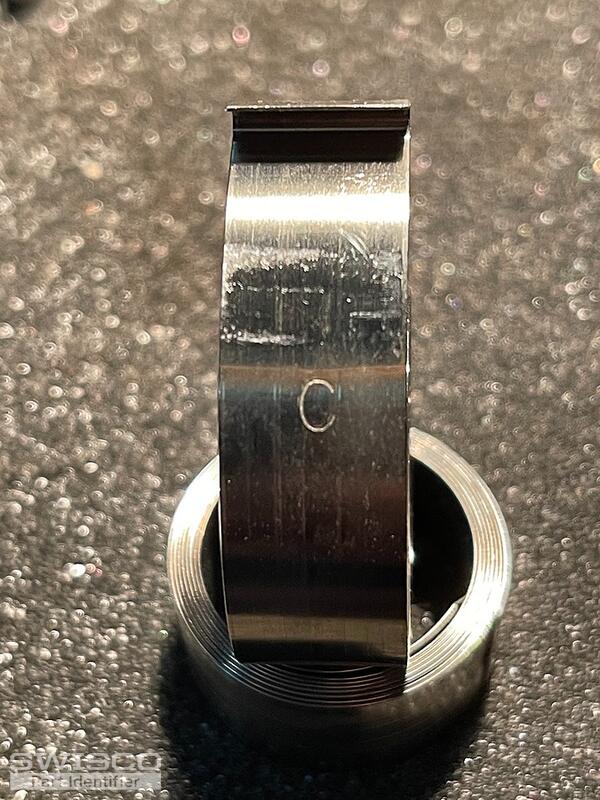

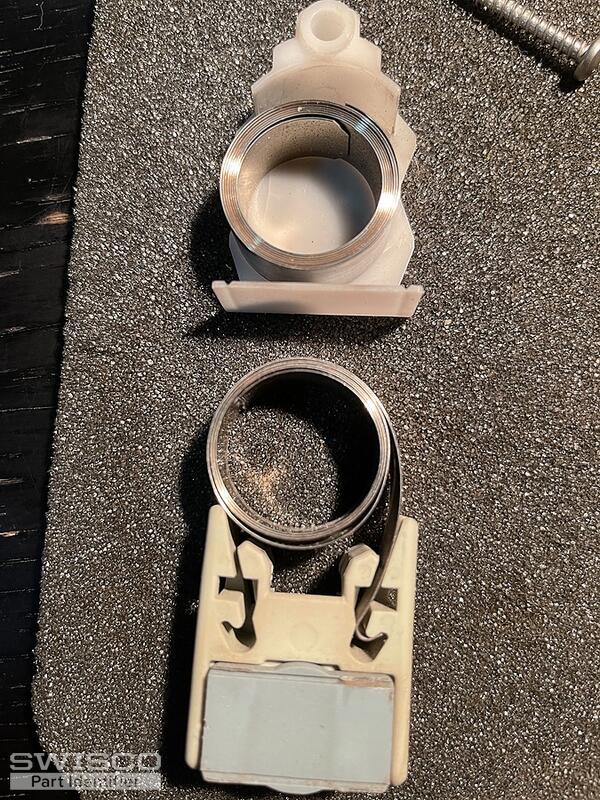

Have Trustgard window with broken coil balances. Window pane is approximately 21" square. The only marking on coil is letter C.
Need 2 sets as both broke.

Weight is 10 ibs

Thank you.
Thumbnail of the uploaded file named FRED2.jpg
Thumbnail of the uploaded file named FRED.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 27, 2022

Hello,

Take a look and compare the dimensions of the 15-177 pivot shoe, which uses the Series 152 coil springs and other related accessories, to your original hardware.

For a 10-pound sash, I would recommend using one S152-5 coil on each side of the window. Thanks for posting!

A home owner from NJ says:
October 27, 2022
The dimensions for the coil balance shoe match the existing one. What about the piece on the other end of the coil? Do I order all of the parts listed in this e mail?

Thank you for your help.
Profile picture of Casey
Casey from SWISCO responded:
October 27, 2022

I'm sorry but I'm not sure which piece at the other end of the coil you're referring to.

Unfortunately, we can't process orders through this thread but these parts can be purchased directly on our website by clicking on the highlighted product codes.

Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
5 lb Series 152 Coil Balance
5 lb Series 152 Coil Balance
S152-5
$4.80
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
#8 x 3/8" SS Pan Head Philips Screw
#8 x 3/8" SS Pan Head Philips Screw
33-072
$0.30
