Truth 30744 Casement Operator

Quick Learner from Novi, MI

Sep 20, 2020 11:24 am

Hello My Truth Casement Operator is faulty and needs t o be replaced. Could you please suggest a replacement? Thank you!

2 user uploaded images

7 Replies

Bob from SWISCO

Sep 24, 2020 1:33 pm

Check out our 39-014 to start. This has a straight arm with a length of 13-1/2". Look over the dimensions and see if this matches what you need. For a new folding handle, see the 39-205.

Quick Learner from Novi, MI

Sep 24, 2020 1:59 pm

Thank you Bob. My unit has two arms. Will this single arm be able to replace it?

Bob from SWISCO

Sep 24, 2020 2:13 pm

Apologies, I was thrown off by the first photo. My mistake. In that case the 39-014 will not work for your window. Can you show me a clearer picture of the operator from a bird's eye perspective, so I can see both link arms clearly? That should help narrow this down. Sorry again, and thanks.

Quick Learner from Novi, MI

Sep 24, 2020 5:47 pm

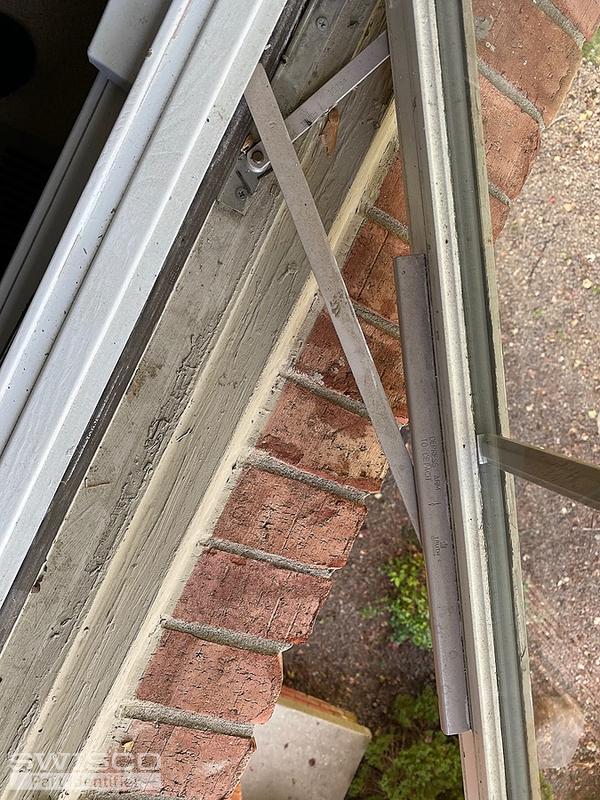

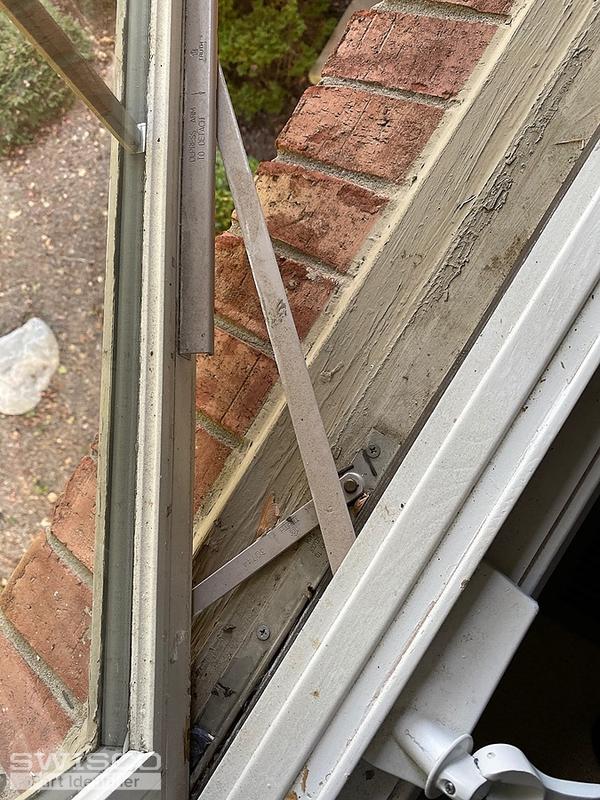

Please find the attached 3 overhead photos. Please recommend the correct hardware.

3 user uploaded images

Tom from SWISCO

Sep 28, 2020 10:38 am

I agree with Bob, our 39-014 looks like our best match. Your operator only has one arm; the second arm you see is the hinge, which is a separate part and not connected to the operator.

We have detailed photos on the 39-014 that you can use as a reference. As long as everything matches up then you should be good to go.

Quick Learner from Novi, MI

Oct 2, 2020 5:54 pm

Thank you Tom and Bob!
The 39-014 fit perfectly and the 39-205 folding lever was a great finishing touch. You guys are awesome!
