Tom from SWISCO responded:
March 27, 2020

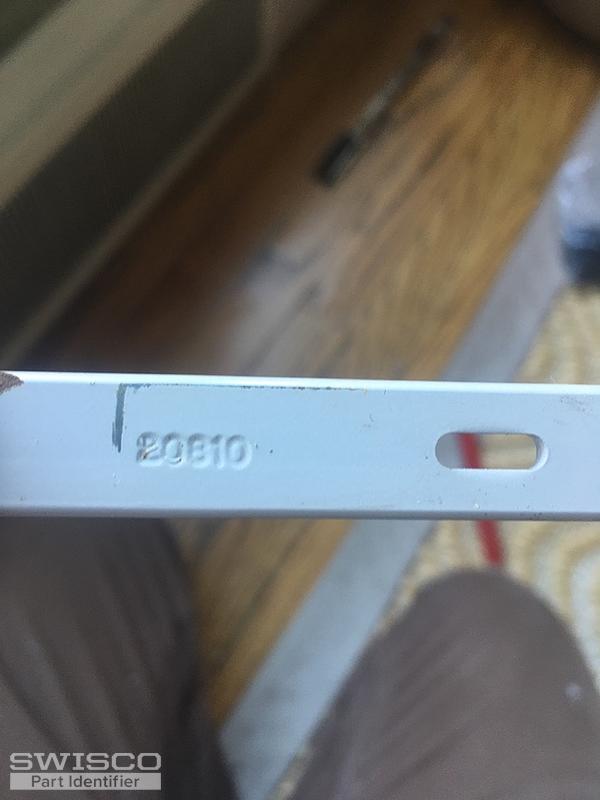

This is a very interesting case. The serial code you gave us for the operator base, 45136, is very commonly associated with our 39-315. Even just eyeballing your photos I feel like this product is a pretty close match, but with one exception: your link arm has a slight offset and is mounted under the gear arm, while the 39-315 link arm is straight and mounted above the gear arm. So I looked up the number printed on your link arm, 20810, to be sure. Weirdly enough, that's almost exclusively related to the link arm on our 39-032. It even looks like it has the same type of slight offset. It seems to me like the original installer of this operator installed a link arm from a 39-032 dual arm operator onto a 39-315. That's obviously not an ideal solution, though, so let's see if we can find a way around it. We have one operator in our inventory with an offset link arm mounted under the gear arm: our 39-171. I think this might be the best place to start. Carefully look over our photos and dimensions and let me know if you think this will work.
Dimensions for 39-171
|
