Truth Entry Guard mechanism

A home owner from Michigan says:
August 19, 2022

I placed a previous order and was successful with four of the screw mechanisms I purchased, but to were the wrong size (my fault). I need one left and one right of this size.

Thank you,

Kelly

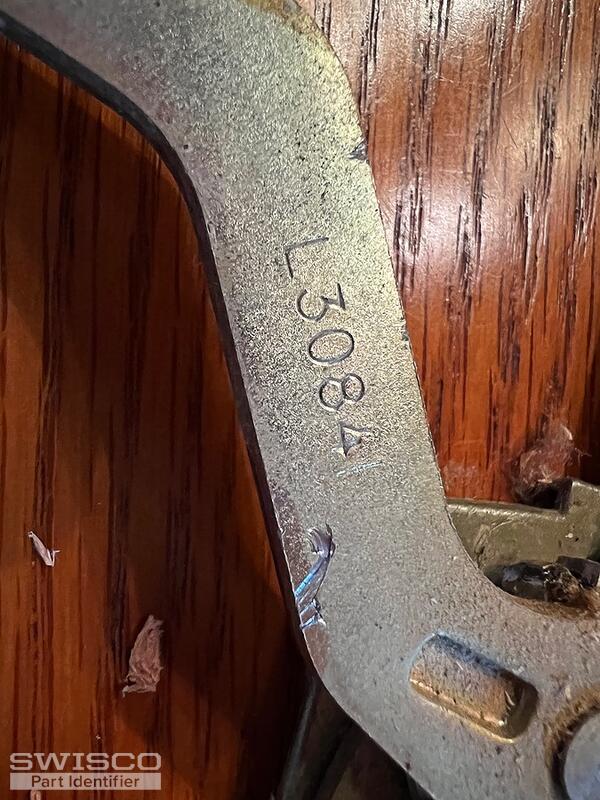

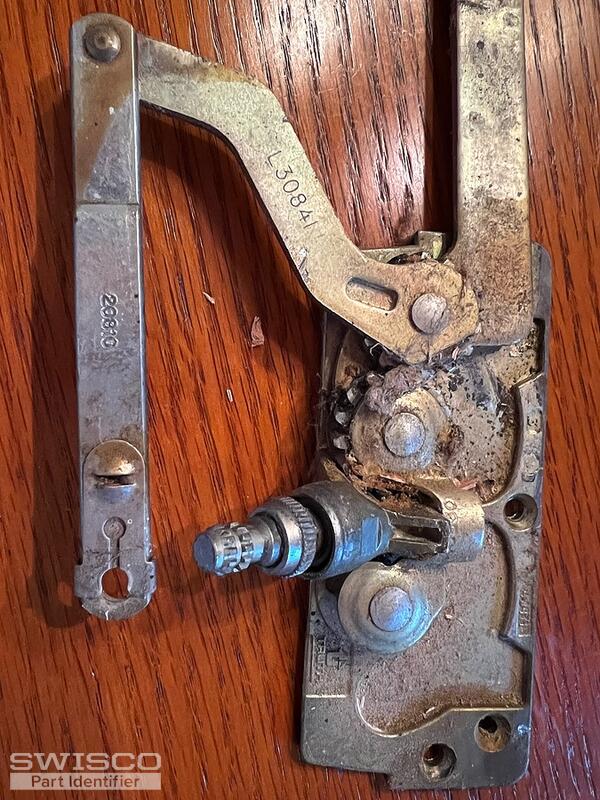

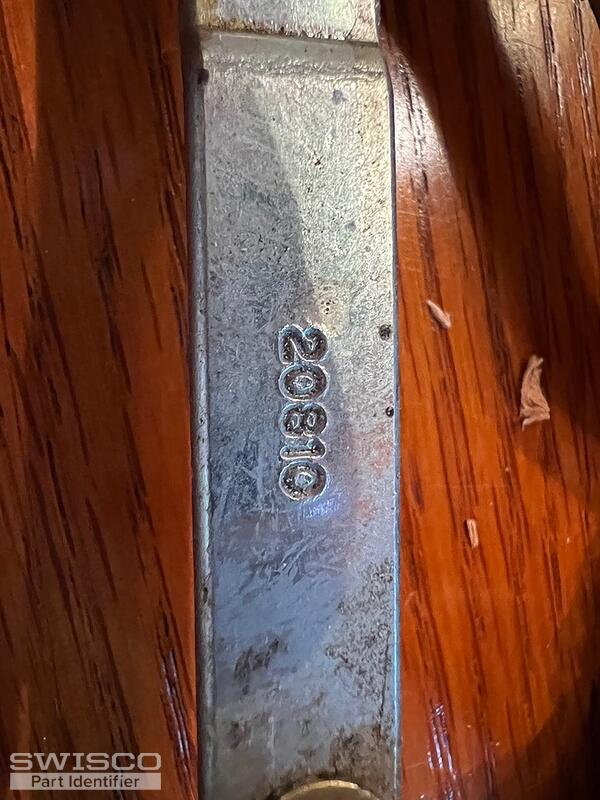

Thumbnail of the uploaded file named DB6ACB34-4148-4960-B0F9-EC21B6D00903.jpeg
Thumbnail of the uploaded file named 9BACCE84-1134-4657-A8DB-FF7F6A55B3A5.jpeg
Thumbnail of the uploaded file named 3A48B9ED-B37B-4745-AD8A-A734674B07FF.jpeg
Profile picture of Emily
Emily from SWISCO responded:
August 22, 2022

Hi, Kelly.

Depending on the length of the link arm, it looks like you could have either the 39-031 & 39-032 or the 39-155 & 39-156 operators. Review our dimensions and compare them to yours to see if one of these matches your original assembly.
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-031
$29.70
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-032
$29.70
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-155
$29.85
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-156
$29.85
