Truth EntryGuard 30744

Home Owner from San Francisco, CA, USA

Jul 22, 2024 12:15 pm

I have a casement window that needs the dual arm operator replaced (truth entryguard 30744). The window swings out and to the left + has the crank in the center (not the type that folds down).

Can you tell me the correct replacement part?

4 Replies

Lauren from SWISCO

Jul 24, 2024 9:57 am

Hello, thank you for posting,

Unfortunately the number provided links to a few different Truth products. To further review, we will need to see a picture of the original operator where we can see the base and both arms. From there we can get clearer idea of the style needed for your window. Thank you!

Home Owner from San Francisco, CA, USA

Jul 24, 2024 11:28 am

Hi Lauren.

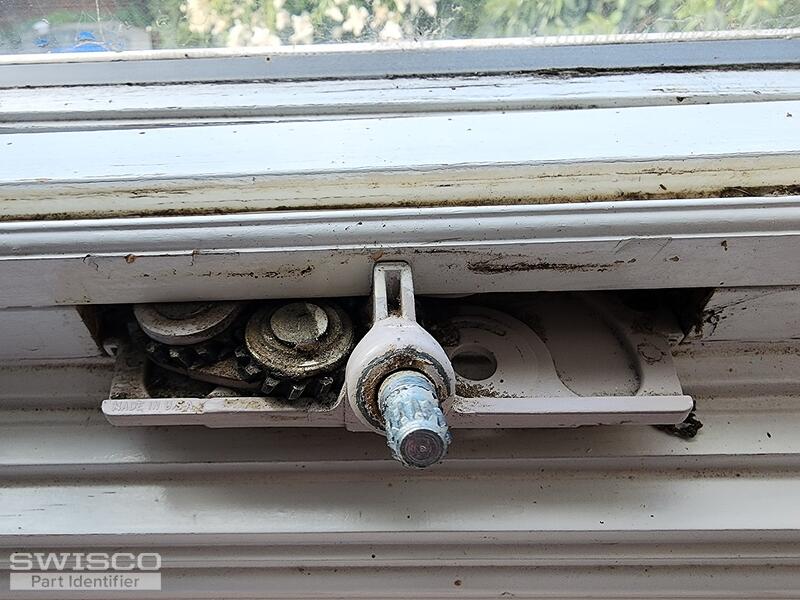

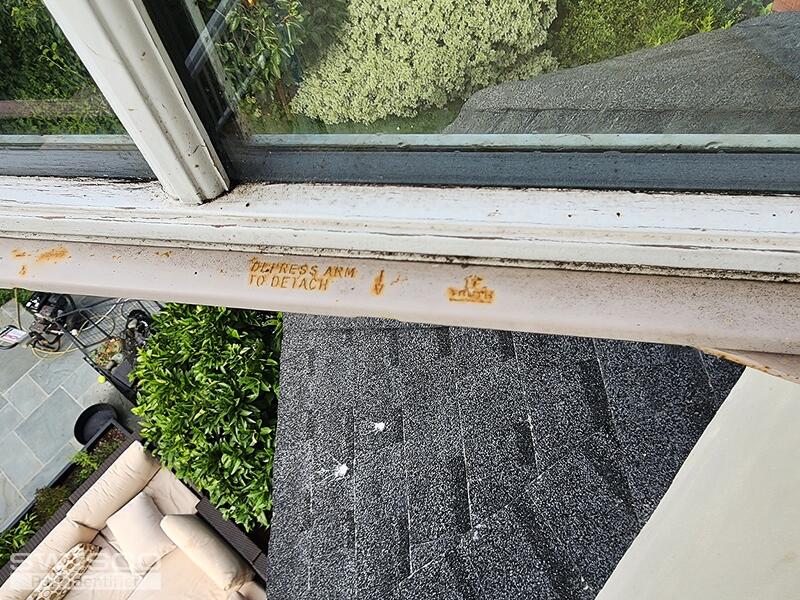

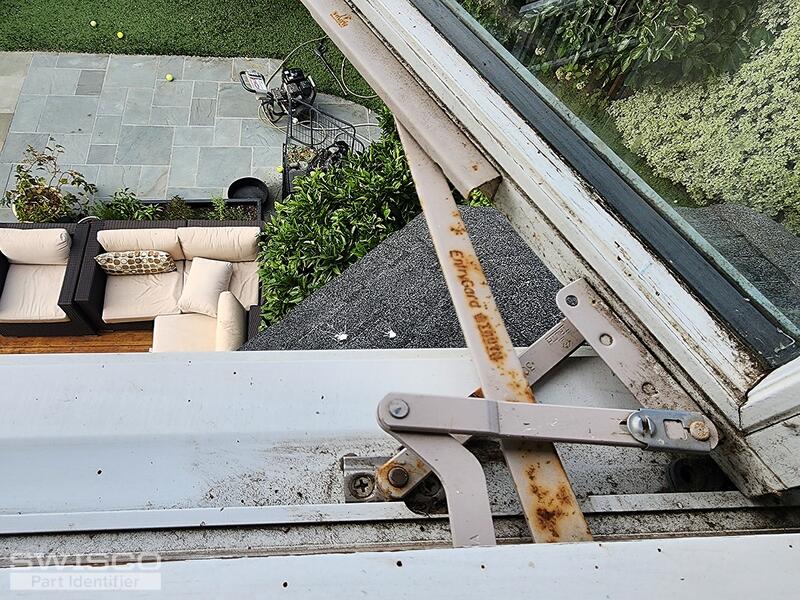

Pix attached (right swing window was easier to access as left swing is failing - perhaps they are the same part and the arms cac be reversed?)

Thanks
Scott

3 user uploaded images

Lauren from SWISCO

Jul 24, 2024 3:40 pm

Thank you,

Please start by reviewing the style of the 39-031 and 39-032 or the 39-155 and 39-156 operators. The main difference between the two styles is the length of the short link arm.

Compare dimensions and match up the orientation to confirm a good fit! Also see the 39-107 cover and 39-114L handle if needed. Let us know what you think and if you have any additional questions.
