Truth Hardware

Home Owner from Michigan

Aug 21, 2020 2:31 pm

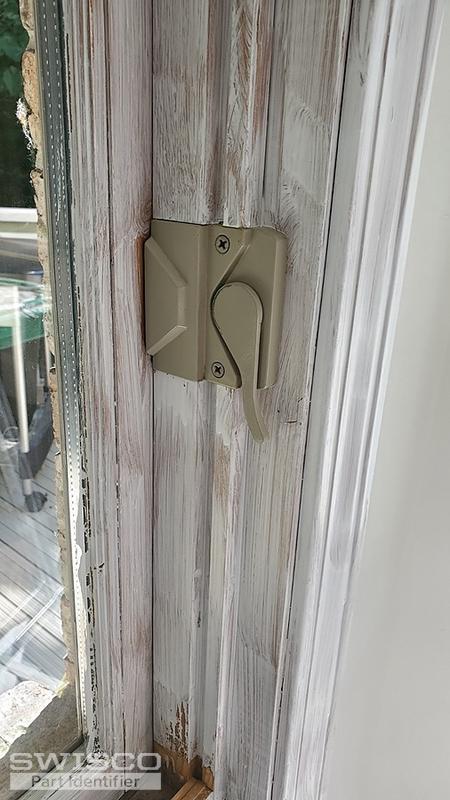

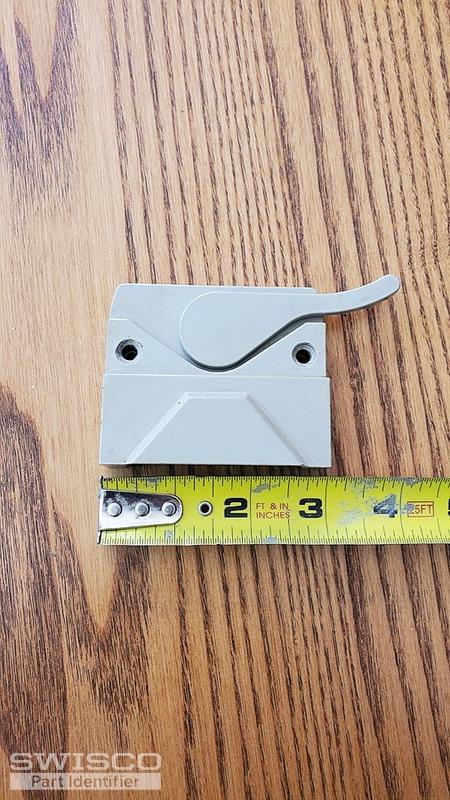

I don't see any part numbers but they are marked Truth. I am looking for both RH and LH versions of both the operator and latch. The operator arm is 9 1/2" long. I am open to a different style if they will fit. I believe the windows are Norco - about 20 years old. I plan to update all the windows in the house.

Thanks

5 user uploaded images

4 Replies

Bob from SWISCO

Aug 25, 2020 2:34 pm

If the casement operator has an arm that's 9-1/2" long, see our 39-027E and 39-028E; you should be able to use these as replacements. For the sash lock, see our 38-097 and 38-098. You'll need a new keeper for these newer style locks; see the 38-079.

Quick Learner

Aug 25, 2020 4:14 pm

Thanks for the reply. On the operator, the arm is 9 1/2" long. The only issue I see with those parts as suggested is that the current operator sits slightly recessed into the trim of the window. So with that operator being slightly taller (3/4 vs 5/8), I would either need to set the operator out about a 1/4" from where the current one sits, which creates an interference issue with the arm, or I would have to modify the wood casing that covers the operator. Not a a huge deal to do one window but I need to do about 30 of them. If you have any ideas let me know.

Bob from SWISCO

Aug 26, 2020 10:12 am

Your thoughts are exactly what we would suggest. All orders can be placed through our online store. Just set the quantity you desire before checking out.
