Truth casement window cover and handle needed

A quick learner from Michigan says:
Do you have the replacement handle and cover for this type of window?
Thumbnail of the uploaded file named E9AF0355-135C-4E98-B19E-1D3243CC7128.jpeg
Thumbnail of the uploaded file named 66A4242E-C2B2-445A-928B-984726A6EDC5.jpeg
Thumbnail of the uploaded file named F980292B-FF2F-48EF-933A-4ECE06419442.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. It appears the worm gear has fallen out of the operator. When this happens, I'm afraid this means the entire casement operator has broken down and needs to be replaced. We can help you do this. We just need to see a picture of the entire operator, including the link arm(s), either out of the window or at least with the window open. From there, we'll do our best to narrow down what you need. Many thanks.

A quick learner from Michigan says:
We finally got the windows open - attached are the requested photos. Any help you can provide would be greatly appreciated.

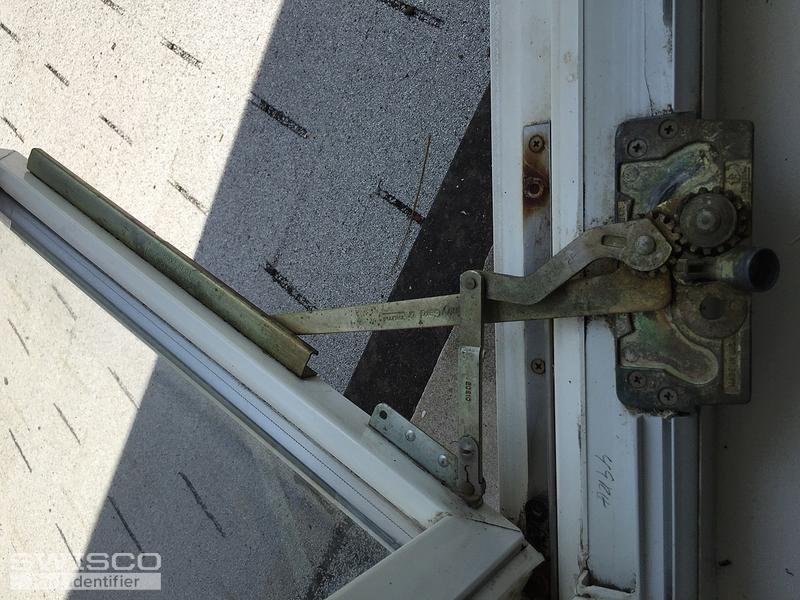

Thumbnail of the uploaded file named E48A0261-6807-43AE-A1F4-EF792EB30452.jpeg

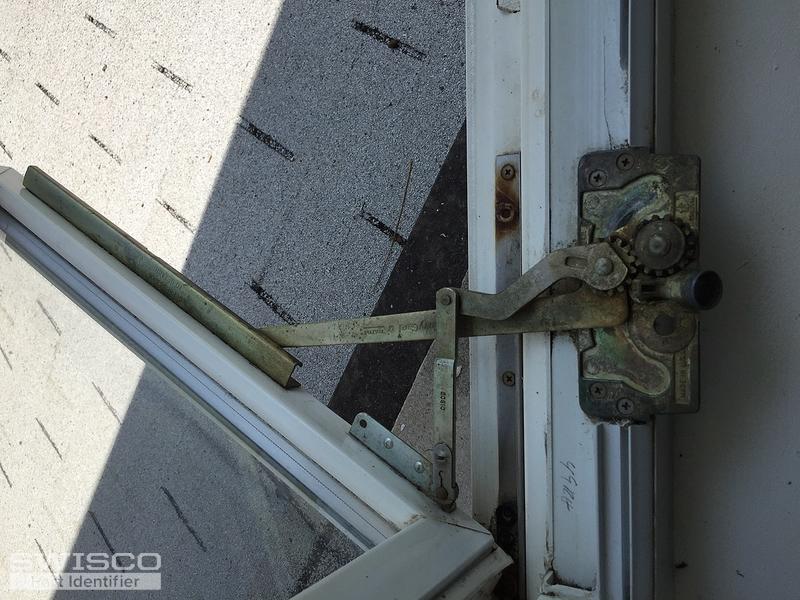

Thumbnail of the uploaded file named BA5C52B4-DECB-4633-93DC-0FC1AFE8F0F6.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for getting back to me. This looks like either the 39-031 & 39-032, or the 39-155 & 39-156. The only difference between these two sets of operators is the length of the link arm, so carefully compare both sets with your old hardware to see what matches best. In either case, for a new cover and handle, see our 39-114L and 39-107.
