Truth crank handle broken off

Question

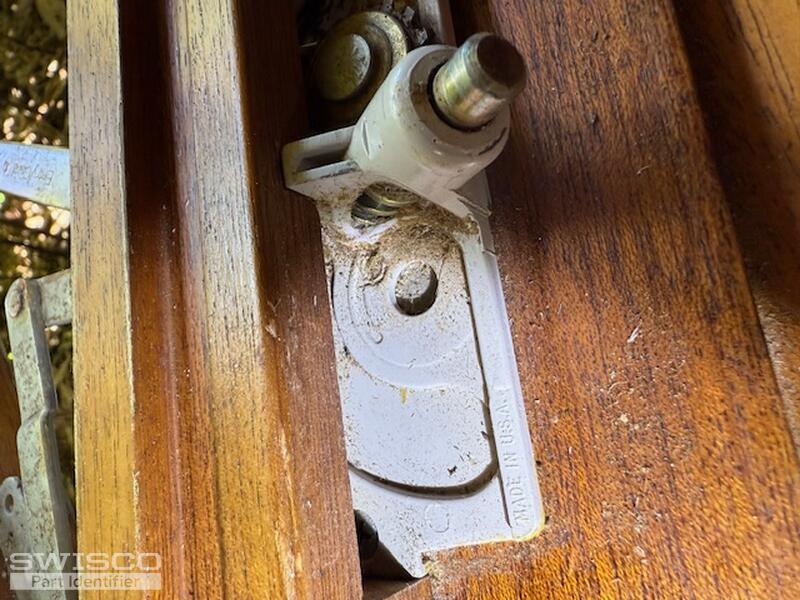

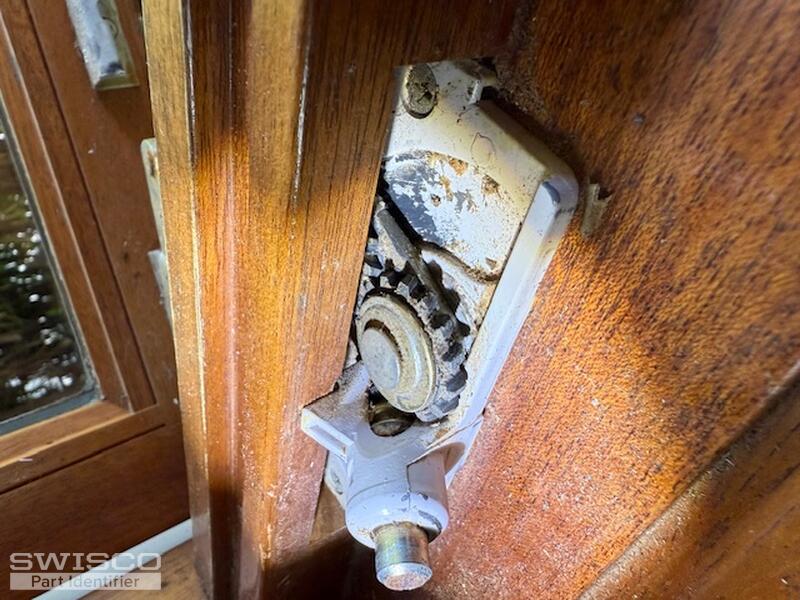

Aloha, so this old Truth window crank is broken. Specifically just the small protruding stem with teeth that fits into the crank handle has broken off and the end is stuck inside the handle. Somebody probably fell or hit the handle casuing it to snap off. Only identifying marks I see is on one of the arms it has the number 30767. All the parts still work, I just need the attach the crank handle back onto the crank. Any help word be very appreciated. Mahalo!

Lauren · Accepted Answer

Hello, thank you for posting,

Unfortunately the spline that the handle fits onto is not available to replace on its own. You will need to replace the full operator.

Please review the style and dimensions of the 39-031 and 39-032 or the 39-155 and 39-156 operators. The main difference is the length of the short link arm. Compare to your original and match up the orientation to confirm a good fit!

Also see the 39-107 cover and 39-114L handle if needed. Let us know if you have any additional questions!
