Trying to figure out what series replacements I need

A quick learner from Alpine California says:
What series do I need for my type of channel balance. I have a few different size windows.
They have marking of :
16 2
28 3
28 4
28 2
Thumbnail of the uploaded file named 7653F8BA-1272-40A3-B853-9A13F4AD26B5.jpeg
Thumbnail of the uploaded file named BB10639F-760E-455A-8E4E-3362F81AD765.jpeg
Thumbnail of the uploaded file named 9ECFD778-099C-45FF-9A92-7142ABC507BD.jpeg

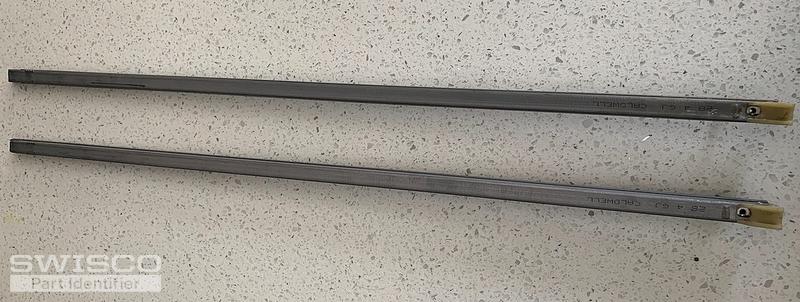

Thumbnail of the uploaded file named EB01BA94-0058-4FE0-BAD8-35EBC6DAA4C6.jpeg

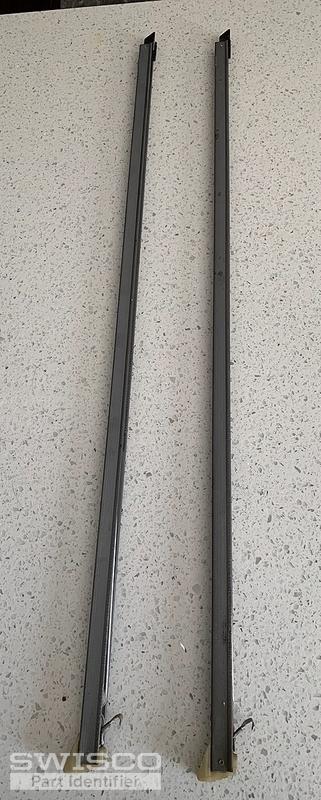

Thumbnail of the uploaded file named 4E51E354-398B-4CDB-B9E5-6179E0959393.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Thanks for posting. We have two balances that closely matches with yours: our Series 351 and Series 390. The difference between these two balances lie within the depth of the bottom balance shoe. The depth of the bottom balance shoe for the Series 351 measures 1" and for the Series 390, 1-1/8". You will need to measure the depth of your bottom shoe, like in the diagram below, to determine which balance would make the best match. For the balance marked with "16 2", either the S351-17 or S390-17 with a 1620 option. As for the balances marked with "28 3", "28 4", and "28 2", either our S351-29 or S390-29 with a 2830, 2840, and 2820 options would work.




Comparison of 15-001 & 15-002
