Trying to find these

Start a new Discussion

Contractor from Charlotte

Aug 10, 2023 7:53 am

Windows are missing the balancers, also want shoes pivot arm, and sash levers. Will add more photos

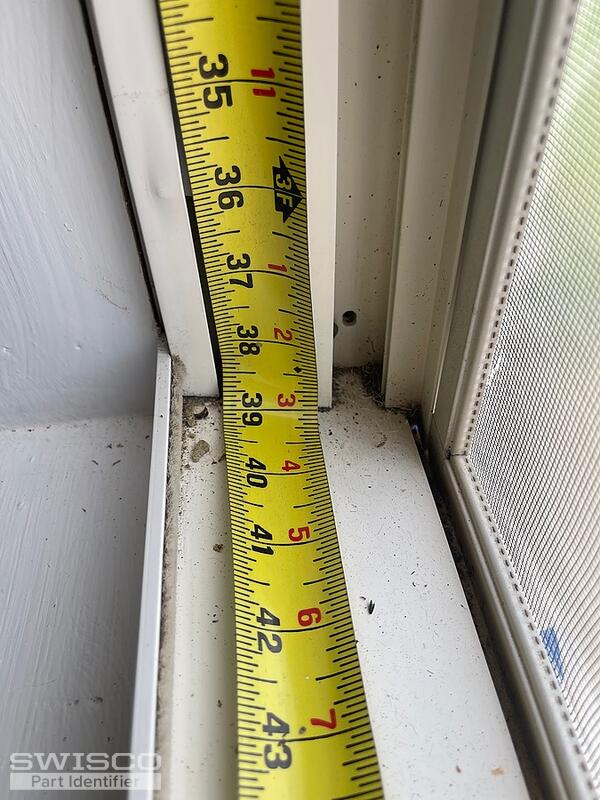

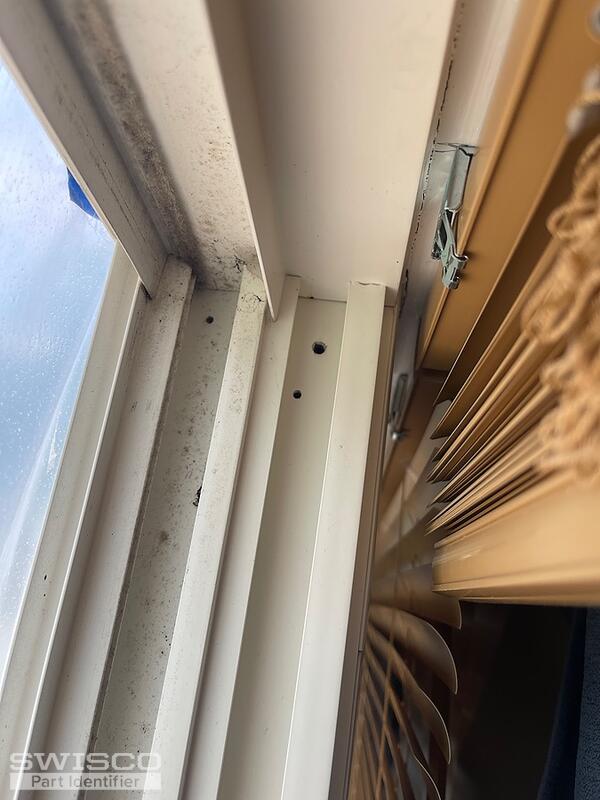

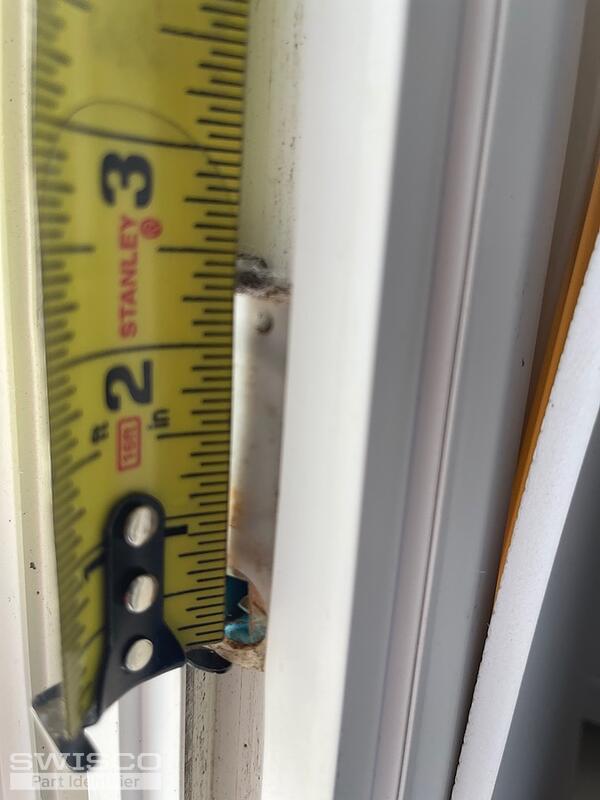

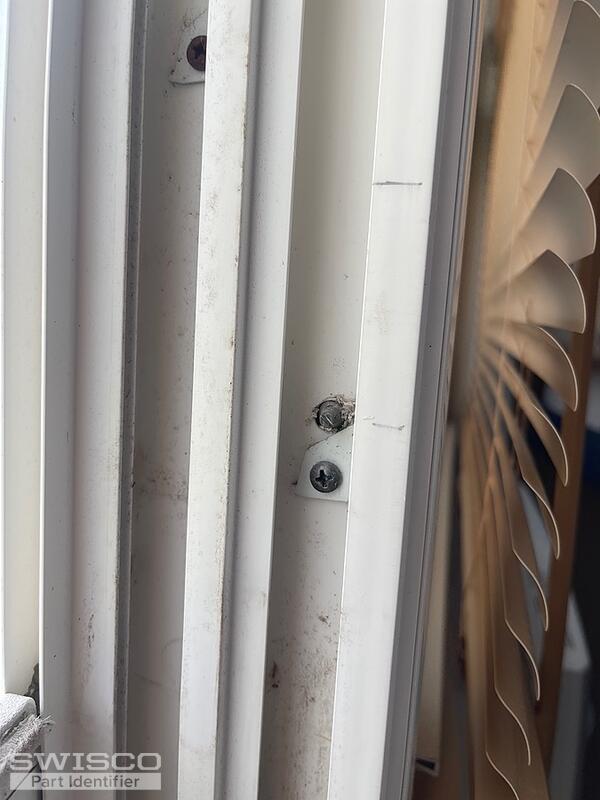

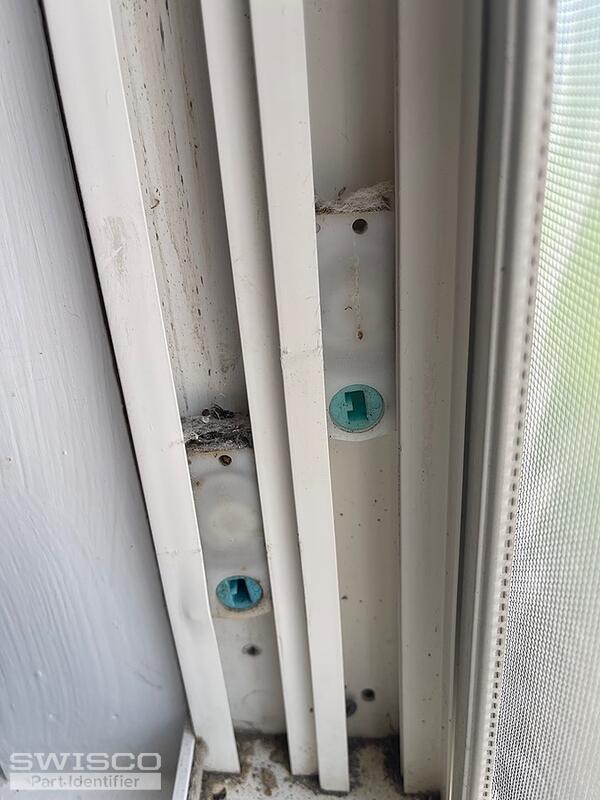

5 user uploaded images

3 Replies

Contractor from Charlotte

Aug 10, 2023 8:52 am

It's a double hung window. Can't find any labels to determine the brand or manufacturer. The sashes weigh 14lbs each. Need the balancers and shoes.

Casey from SWISCO

Aug 10, 2023 3:40 pm

Hello,

Your balance shoe resembles the 15-087 housing pivot shown below, which would use the S180 coil springs, 15-086 tandem housing, and 16-024 mounting bracket. For a 14-pound sash, you would use one S180-7 coil spring on each side. Take a look and let us know if you need anything else. Thank you!

Detail of 15-087
