Trying to identify good window

A home owner from Harvard, MA says:

September 27, 2022

I have a casement style window that have damaged crank and slider mechanism. The photos are of an identical window's hardware. From that, I may be able to get the necessary parts to have someone handy fix the damaged window.

If would want pictures of the same parts of the damaged window, I can also supply them.

Thumbnail of the uploaded file named crank handle.png

Thumbnail of the uploaded file named crank mechanism.png

Thumbnail of the uploaded file named latch handle.png

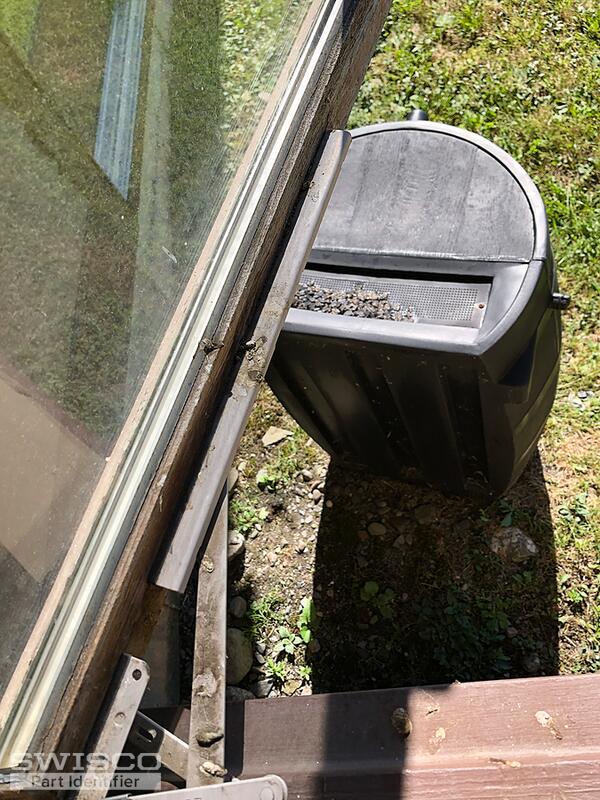

Thumbnail of the uploaded file named window bottom slider.png

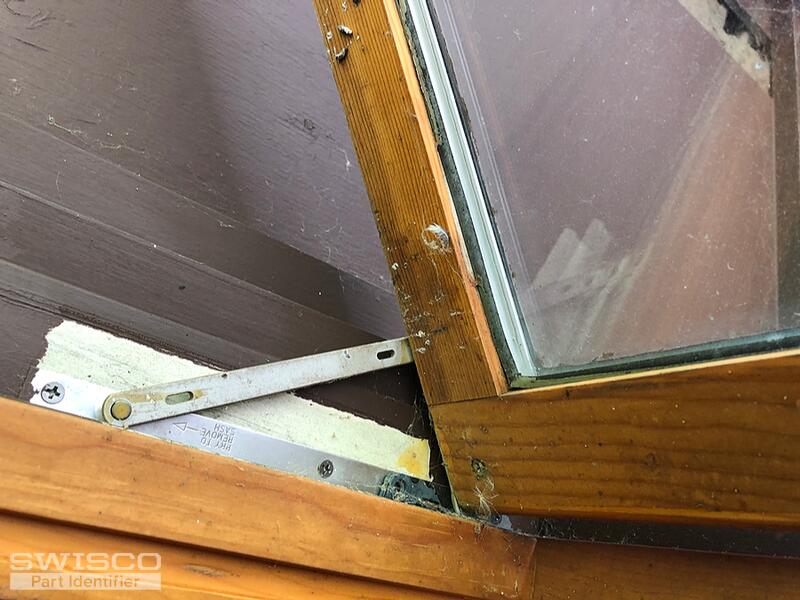

Thumbnail of the uploaded file named window top slider.png

Tom from SWISCO responded:

October 3, 2022

Hello! Thanks for reaching out to us, and for your patience during this busy season. We can absolutely supply the parts you show in these photos. Starting with the operators, I recommend our 39-155 and 39-156. You should just look over our dimensions first to ensure they all match up. We also sell the 39-107 cover and 39-144L handle, though you can always just reuse the originals, too.

Dimensions for 39-155

As for the locks, see our 38-097 and 38-098. I am confident that these will replace your original mechanisms.

Alternate image for 38-098

Side view of 38-097

Caradco Window Crank, 9-1/2"

39-155

$29.85

Caradco Window Crank, 9-1/2"

39-156

$29.85

LH EntryGard Sash Lock

38-097

$12.05

RH EntryGard Sash Lock

38-098

$12.05
