Trying to identify replacement parts

Home Owner from Lansdale, PA
Jan 27, 2025 12:20 pm

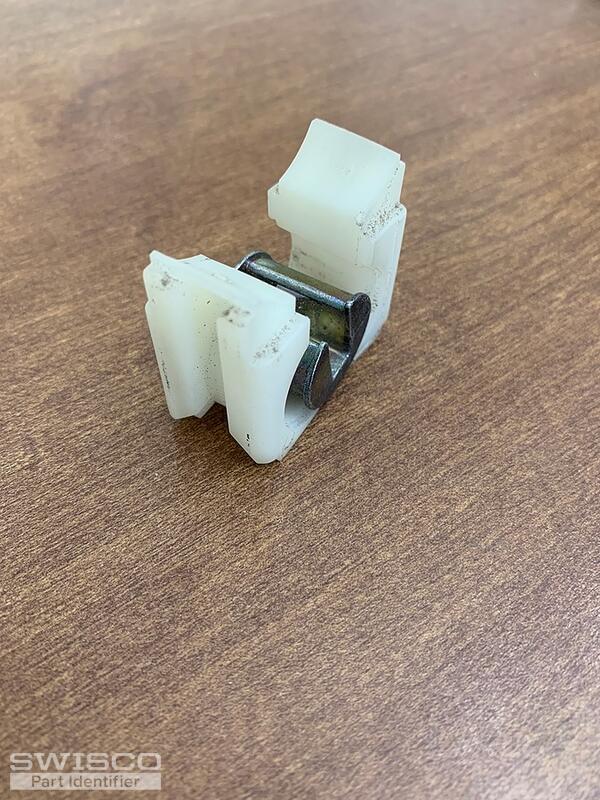

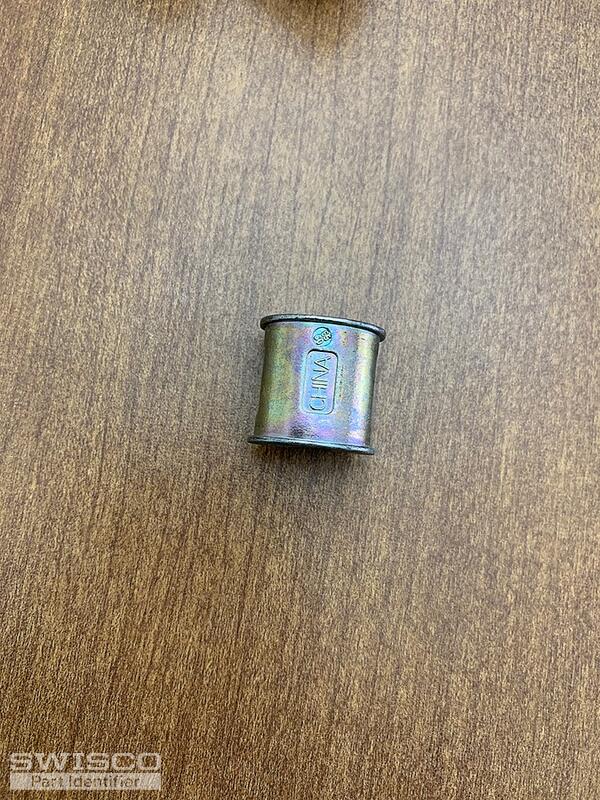

Several of my Simonton windows (Installed 2010) have broken the pivot shoe. I have been unable to find much in the way of identifying markings. The plastic pieces have China stamped on them. The metal has China and 0953 (picture attached). I have included a pic of the order label that was still readable from one of the windows.
5 user uploaded images
2 Replies

Bob from SWISCO
Jan 27, 2025 2:45 pm


Hello there. This old Simonton shoe is no longer made, however you can replace it with our 15-259 Pivot Shoe. This will however require you to also replace the coil springs in the window jambs with the Series 159 Coil balance springs. The video below explains this process. Check it out and let me know if you have further questions.
