Trying to replace my coil spring balancers.

Question

My window no longer stays open anymore. It just slams shut so I decided to troubleshoot.

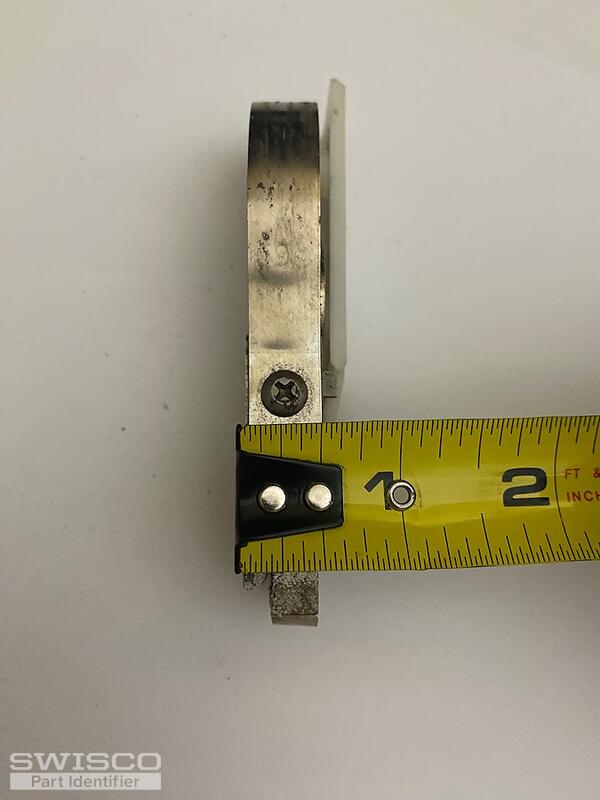

I see a 9 engraved on the coil.

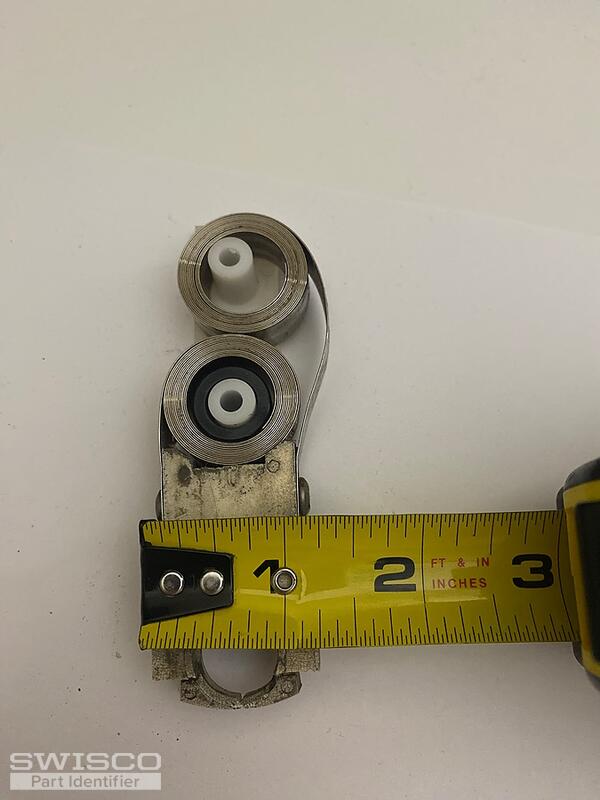

The bottom hook part of my coil balancers are broken it appears. This is for my single hung windows that tilt in.

Jasmine · Accepted Answer

Hello,

The pivot shoe you have is our 15-180 Coil Balance Shoe. Although, you'll still want to compare the dimensions below to be absolutely sure this is the right fit.

Alternate image for 15-180

This shoe is compatible with the Series 190 Coil Balance Spring. For the coil spring marked with a 9, I suggest using the S190-640. You'll need to look at the other coil on the assembly to determine the replacement for that one.

The coil spring is secured to the shoe using the 33-073 screw and uses the 15-181 Double Support Detent Clip along with the 15-182 Balance Bushing.
