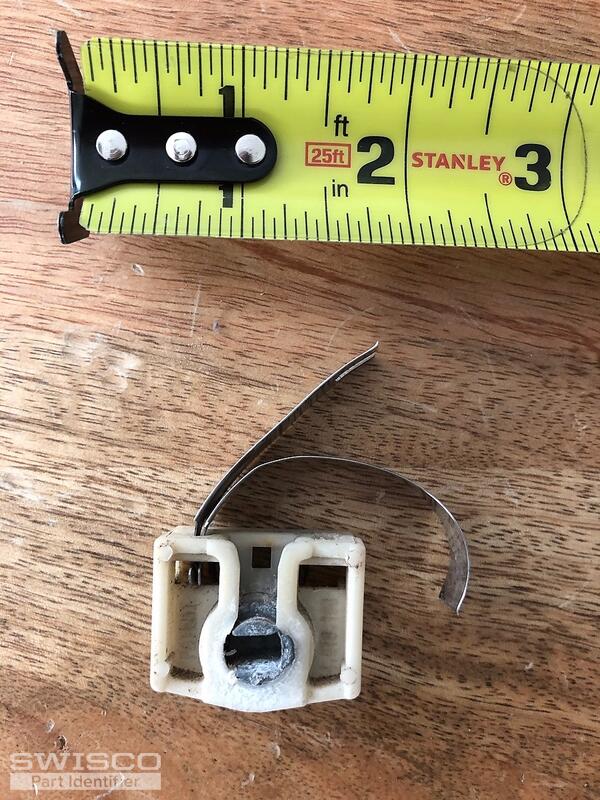

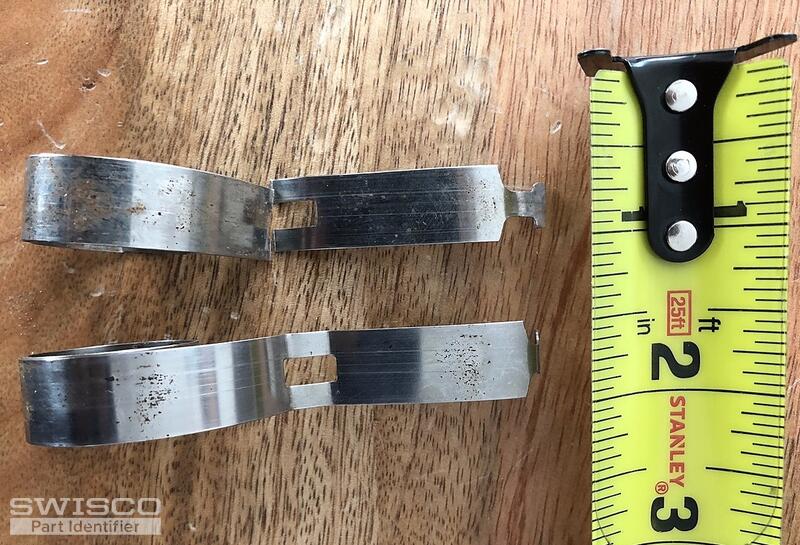

We ordered parts S165-4 (Coil Balance) and 15-111 (Pivot Shoe) to repair a double hung window. We also need a coil balance cover and potentially a different coil balance. The broken coils seem to be thicker (1/2") than the one we purchased and the end slot is in a different place on the broken coils (not sure if that matters).
Any help is appreciated.
Two spring coil cover and coils for double hung window
Quick Learner from San Diego
Dec 12, 2018 1:10 pm
5 user uploaded images
2 Replies
Bob from SWISCO
Dec 12, 2018 3:05 pm
Thank you for contacting SWISCO. Sorry to hear that your S165-4 was too thin. The 1/2" thickness is characteristic of the Series 160 Coil Balances, which otherwise have a similar tongue configuration. I suggest you give them a look. As for a cover, consider the 15-150D 1/2" Coil Double Support. It works with the 15-111 Shoe. Look it over and see what you think!
