U cam Pivot shoe

A quick learner from Connecticut, USA says:
November 21, 2022

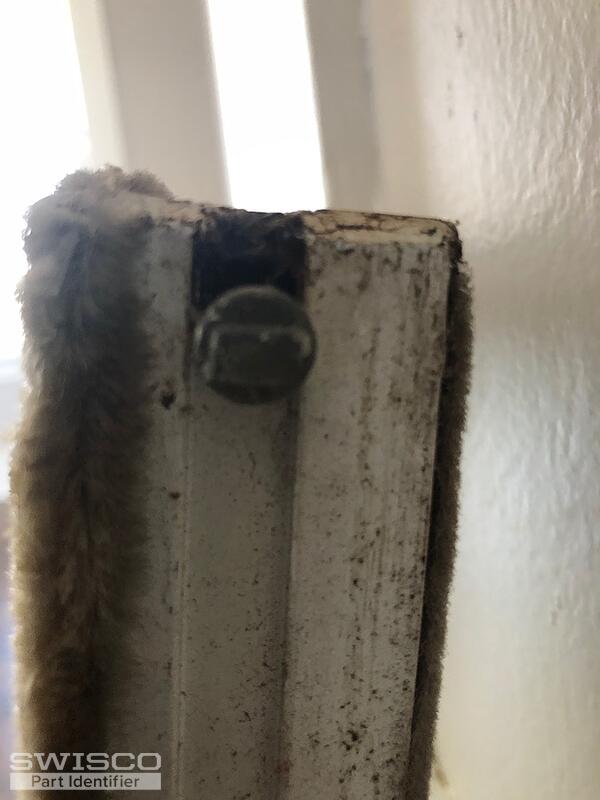

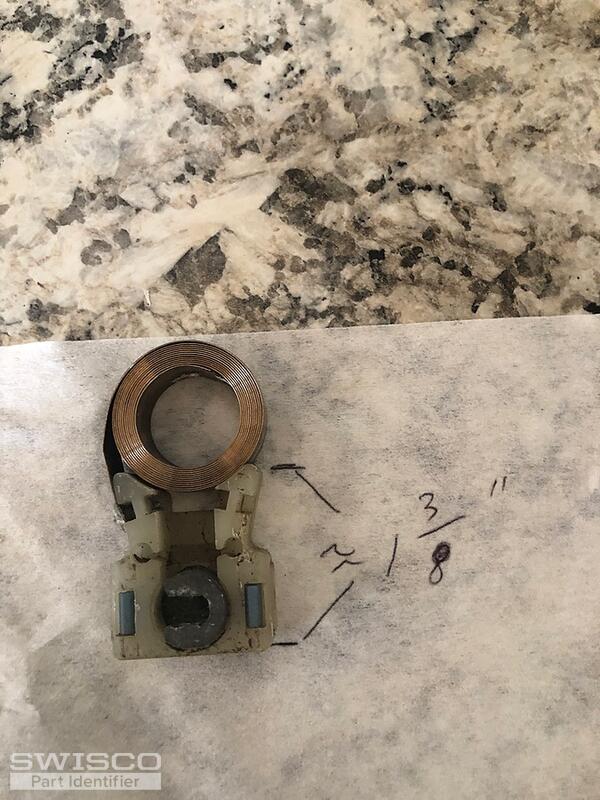

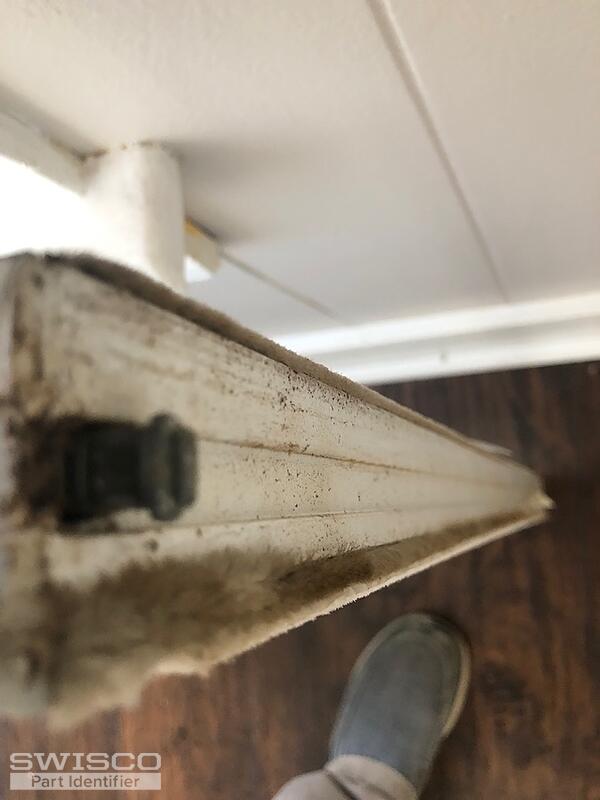

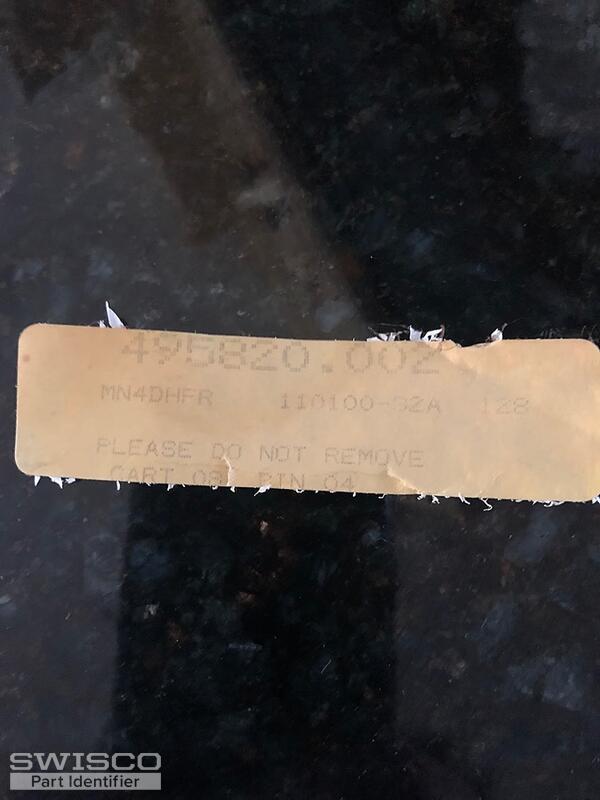

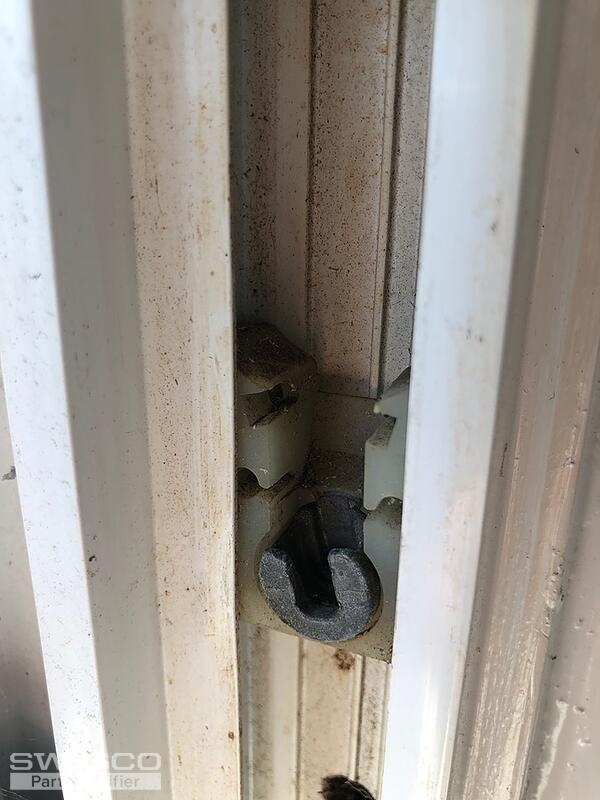

I need a new pivot foot for a window. I have attached a picture of the label on the window with the numbers on it. I am not sure but I think the windows are American craftsman purchased at Home Depot. Around 10 years ago.
Thumbnail of the uploaded file named D70D63C5-1DCD-4CC7-A351-B9BC52B696E5.jpeg
Thumbnail of the uploaded file named D07ED15A-81C6-4697-A0CF-6E961E1D25C2.jpeg
Thumbnail of the uploaded file named 7379F674-BA49-4CD5-B511-32F54AD88575.jpeg
Thumbnail of the uploaded file named D2DB4382-6519-4BD9-A4D4-2F55FAC2CBE3.jpeg
Thumbnail of the uploaded file named 6FC0E208-0166-42B1-812B-009D7E981F1F.jpeg
Profile picture of Tom
Tom from SWISCO responded:
November 29, 2022

Your pivot shoe is unfortunately not made anymore, but I am very confident that our 15-177 can work as an alternative. The design is slightly different but not so much that it matters.

These shoes are both designed to work with the Series 152 coil spring.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
