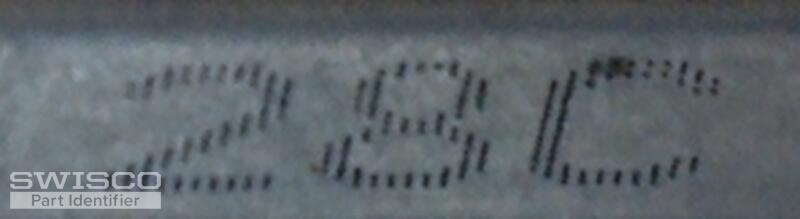

UB 28c balance channel : SWISCO.com

Home Owner from orlando, florida

Aug 27, 2021 9:44 am

1/2 inch channel, metal piece is 29inches long, with plastic ends 30 inches long

1 user uploaded image

7 Replies

Casey from SWISCO

Sep 1, 2021 9:48 am

Hello,

We'd be happy to help but we would need to see the end attachments of your balance to compare to our inventory. Thank you!

Home Owner from orlando, florida

Sep 1, 2021 7:13 pm

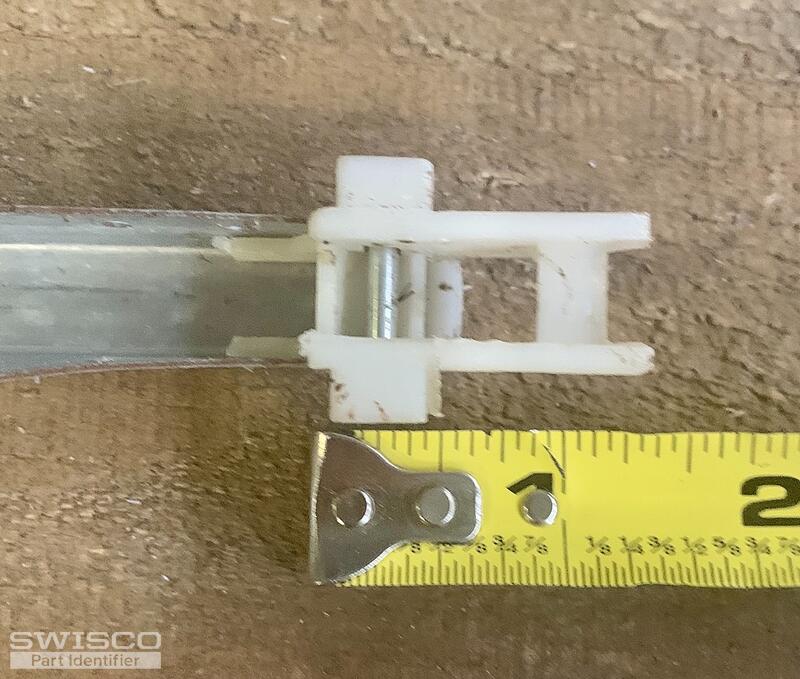

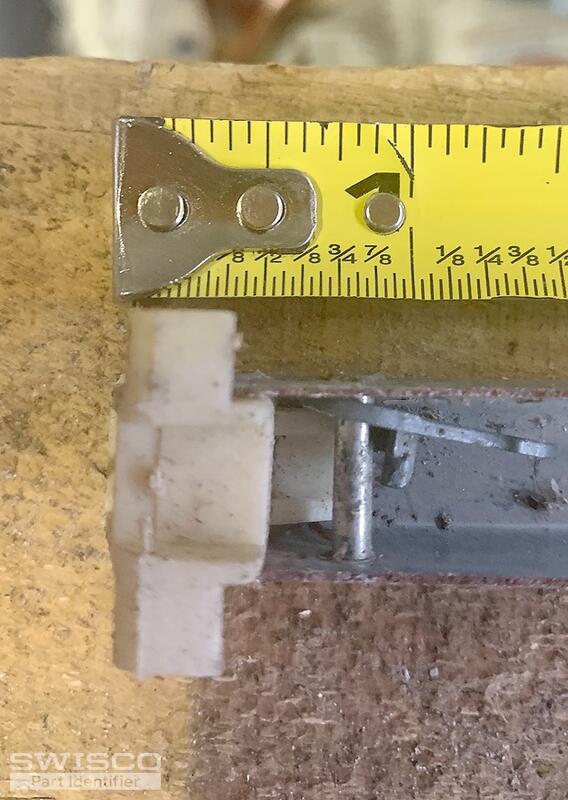

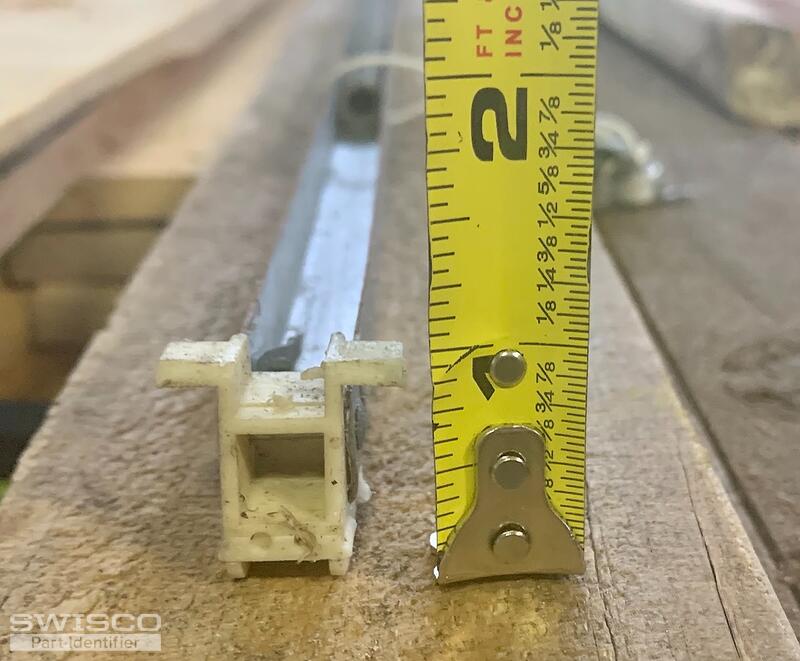

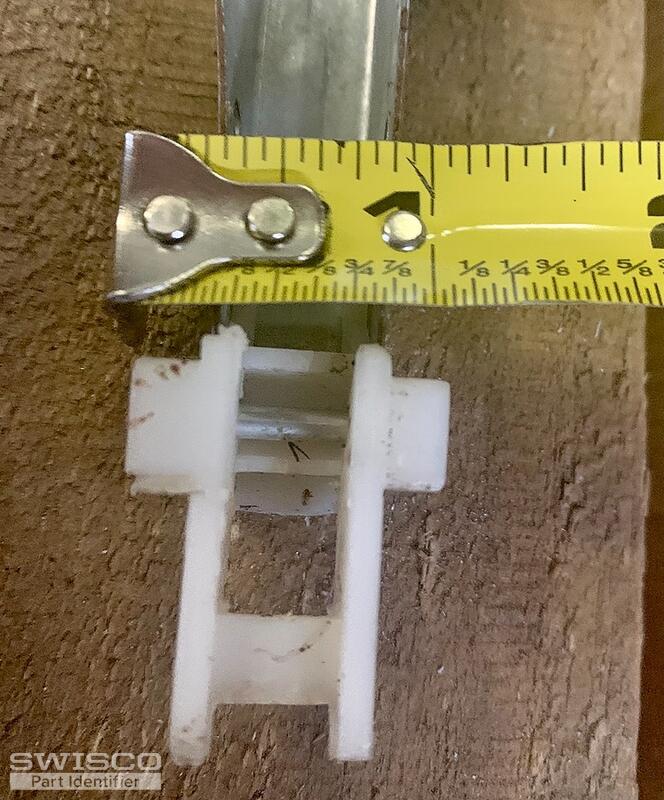

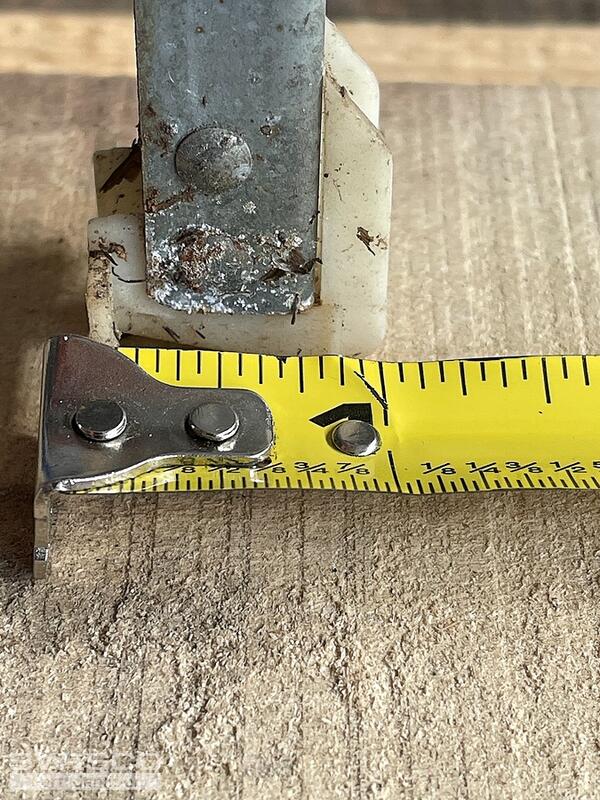

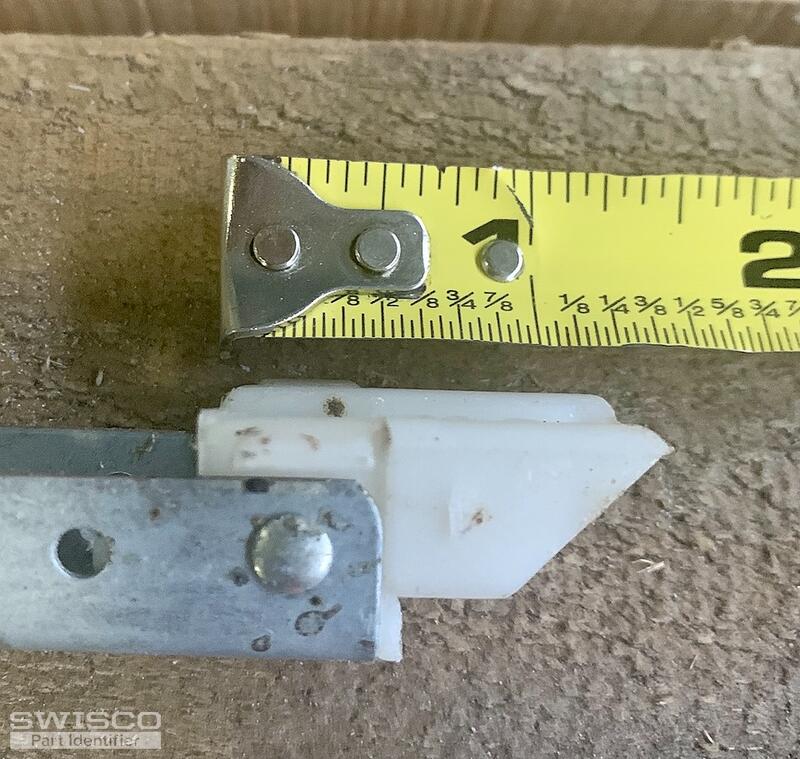

Here are the pics from both ends.

5 user uploaded images

Casey from SWISCO

Sep 2, 2021 8:21 am

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2830 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.
