Unique 16-D-40; 23-04-97

A home owner from Montana says:
Please provide a quote for your recommended replacement of the following balance:
Track length 17" width 9/16" height 5/8"

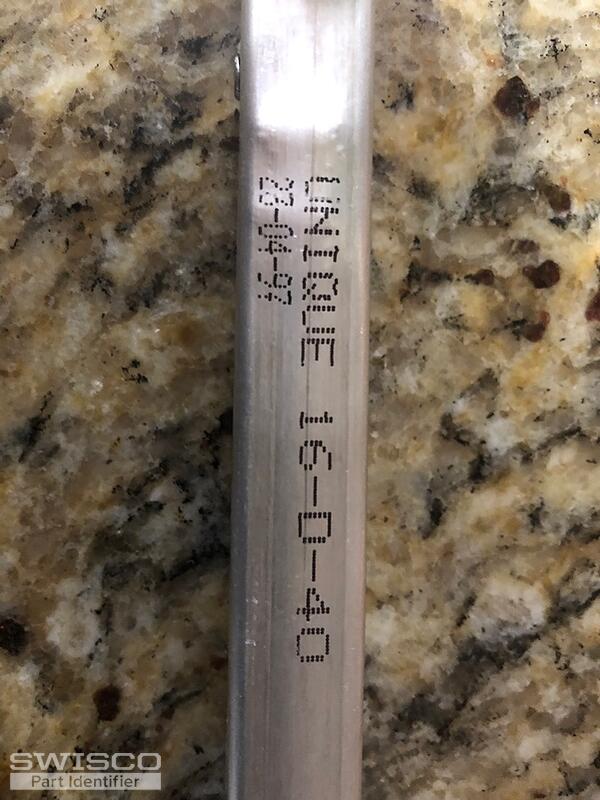

Unique 16-D-40 stamped on track, dated 23-04-97
Sash weight 26 lbs
4 required

Thanks
Thumbnail of the uploaded file named 48B4B752-1CD1-4D36-A61E-EC07EFA944AC.jpeg
Thumbnail of the uploaded file named 301B4FDF-F676-4052-8C70-F3F12D97C066.jpeg
Thumbnail of the uploaded file named BD09B2BA-3CEE-42E1-9AFA-BE5BA2E88138.jpeg
Thumbnail of the uploaded file named 1E3DF15B-A98A-4BB1-B5C6-00BE35C46841.jpeg
Thumbnail of the uploaded file named CA7C442D-A2EF-4C50-A818-C252480BDB71.jpeg
Profile picture of Tom
Tom from SWISCO responded:

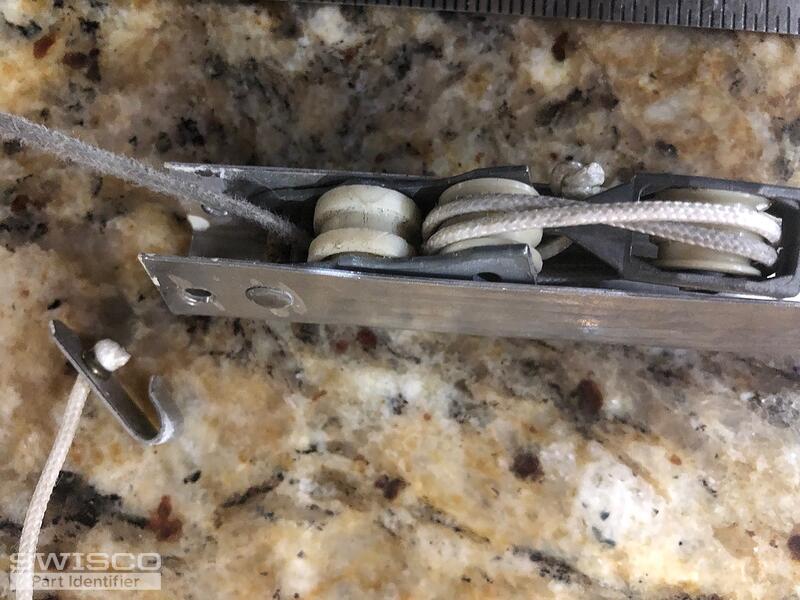

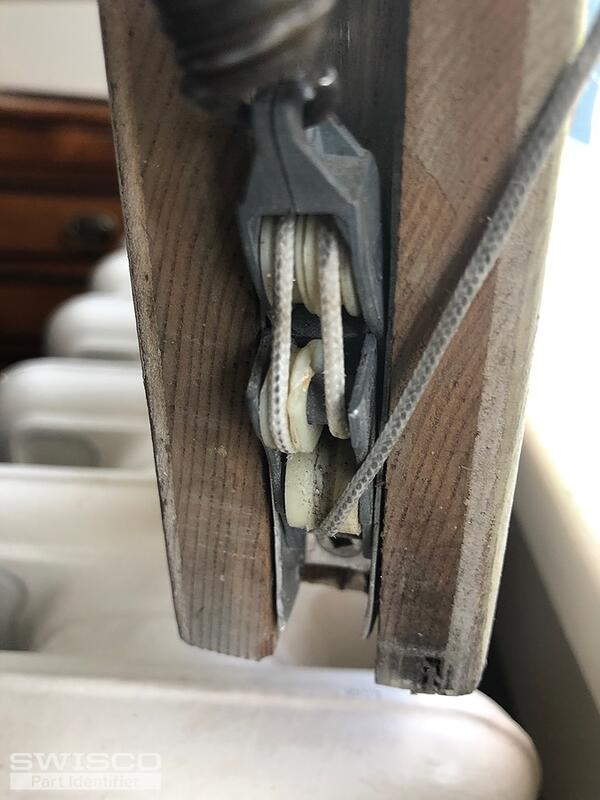

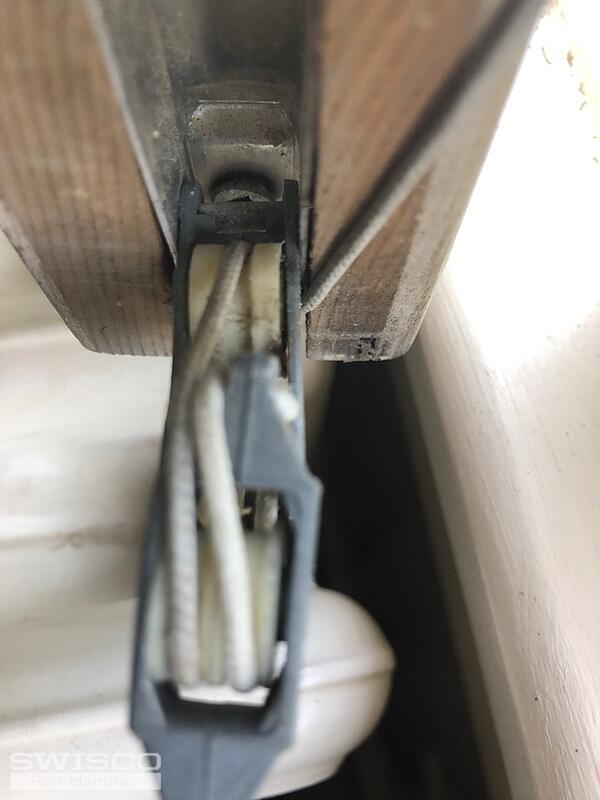

I think this balance has to be a custom order due to its configuration. What you have here is a plain channel balance for a tilt window, but with a 62-105 hook at the end of the cord, which isn't a stock combination

Before we go any further, can you confirm the weight of the sash? I think we can use our Series 770 as a substitute by tying the 62-105 hook to the end of the cord, but this uses a very different spring rating system compared to yours. I want to make sure that the spring can carry the right amount of weight before we commit to a custom order.

Please let me know if you can get that for me, or if you had any questions about my assessment.
