Unknown Channel Balance
Quick Learner from San Diego
May 2, 2018 7:25 pm

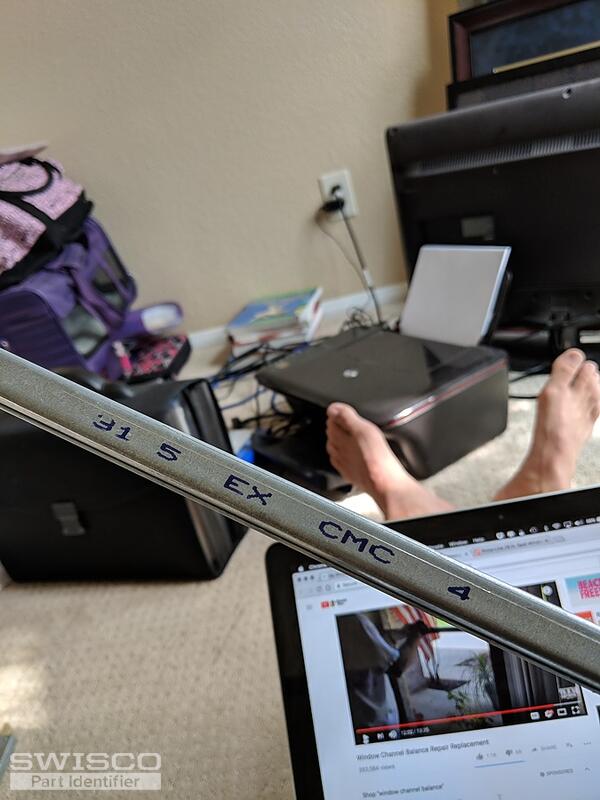

The channel balances say 31 5 EX CMC 4. There were no balance retainers in place so I'm not sure which one's I need. Thanks for the help.
1 user uploaded image
4 Replies
Casey from SWISCO
May 3, 2018 10:12 am
Hello,

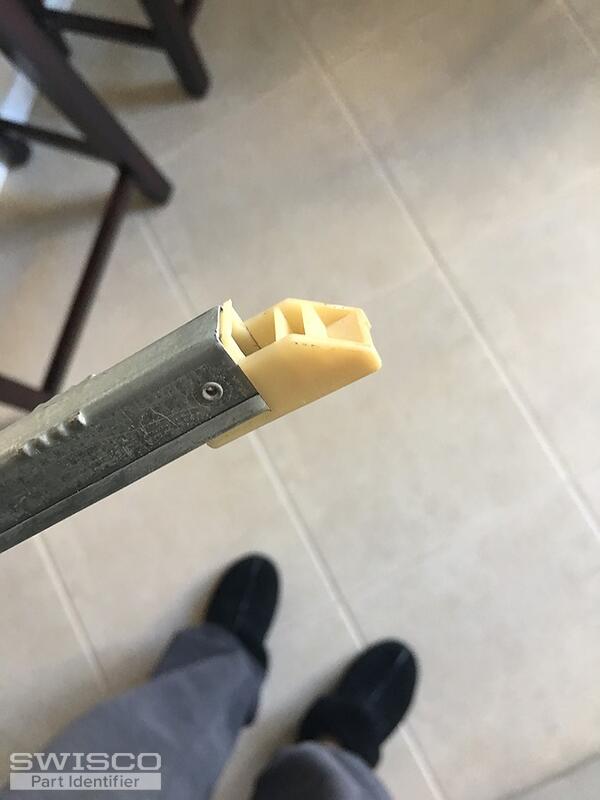

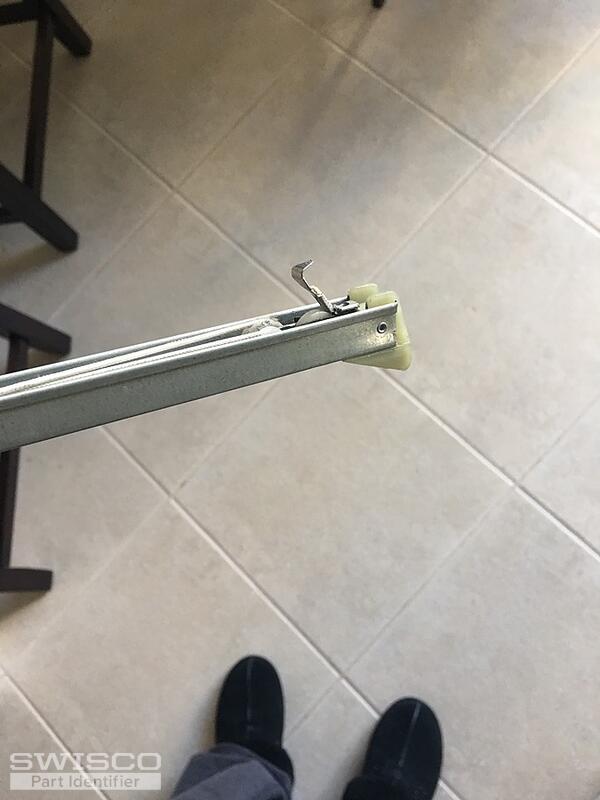

We're on the right track but we'll need to see both end attachments on your balance in order to recommend a replacement. I'm also not sure what you mean by balance retainers. If you could clarify, we'd be happy to help you identify your balance. Thank you!
Quick Learner
May 3, 2018 11:56 am

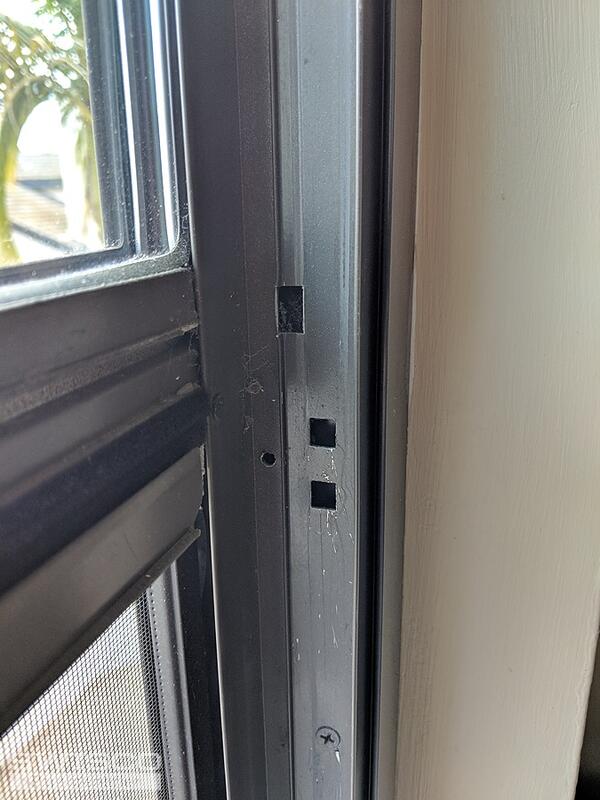

By Balance retainers I mean the clips that actually go on the window frame that hold down the channel balance (pictured, those blank squares?)
3 user uploaded images
Casey from SWISCO
May 4, 2018 9:43 am
Hello,
It looks like you have either our S390, left, or S351, right, channel balance. Take a look at the image below to determine which balance you'll need. You'll also need to know the length of your balance and the weight of your sash in order to choose the correct option.
Also take a look at our 16-002 take out clip for the replacement retainer you mentioned.
Thank you!
Comparison of 15-001 & 15-002
