Unknown Tilt Latch Part Hardware

Contractor from Atlanta
Hello!

I have a series of old tilt-latch windows that have had most of their internal hardware broken, but I don't want to replace the window, so I was hoping you could point me to the hardware I can use to replace it.

I know I'm going to need an external tilt latch replacement because they don't make the internals anymore, but I also need new pivot shoes and coil balancers.

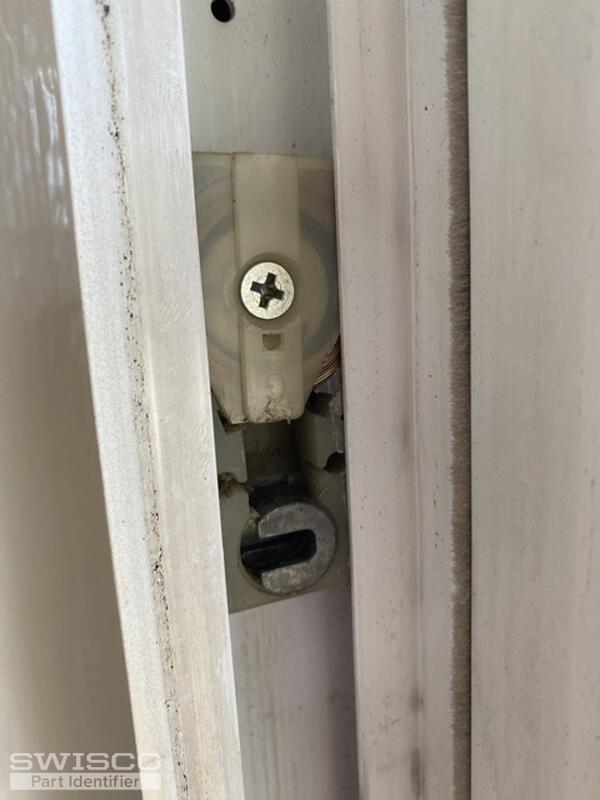

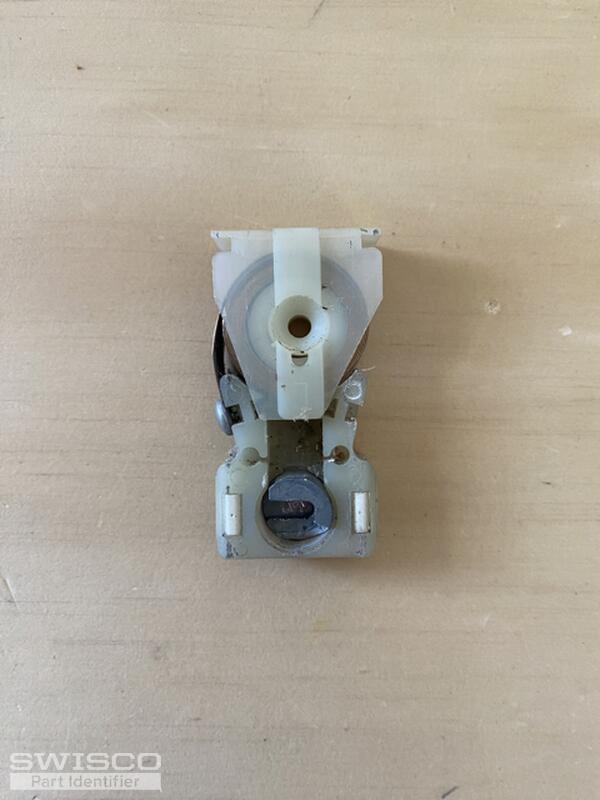

I was unable to remove a version of the coil balance-pivot shoe assembly, so I gave photos of the broken assembly I was able to remove and the one intact one in the window.
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your pivot shoe was recently discontinued but the 15-177 is a confirmed replacement, which uses the same S152 coil springs as your original assembly. Take a look at the specifications shown on our product pages, along with the related items that show the compatible accessories used with this assembly. We've also related a few videos on this page to help you through the process. Thank you!
