Upgrade Existing Casements Hardware
Hi there!

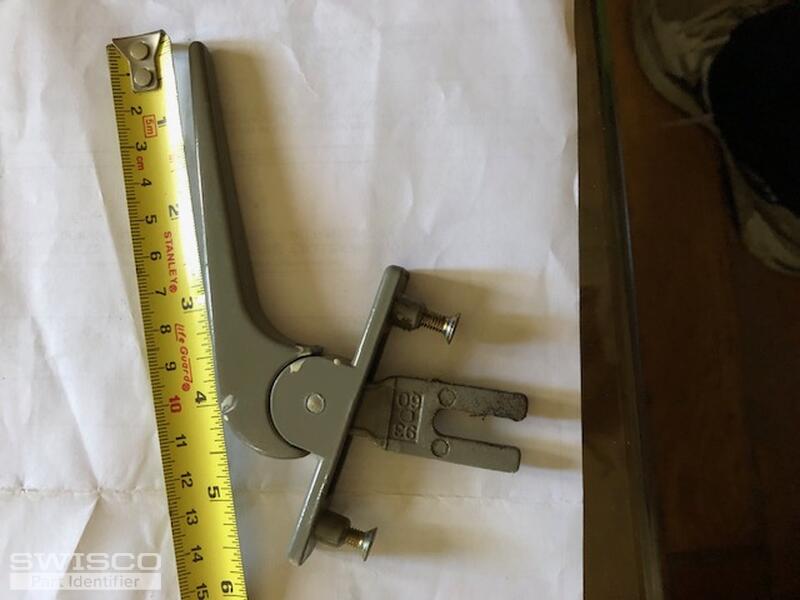

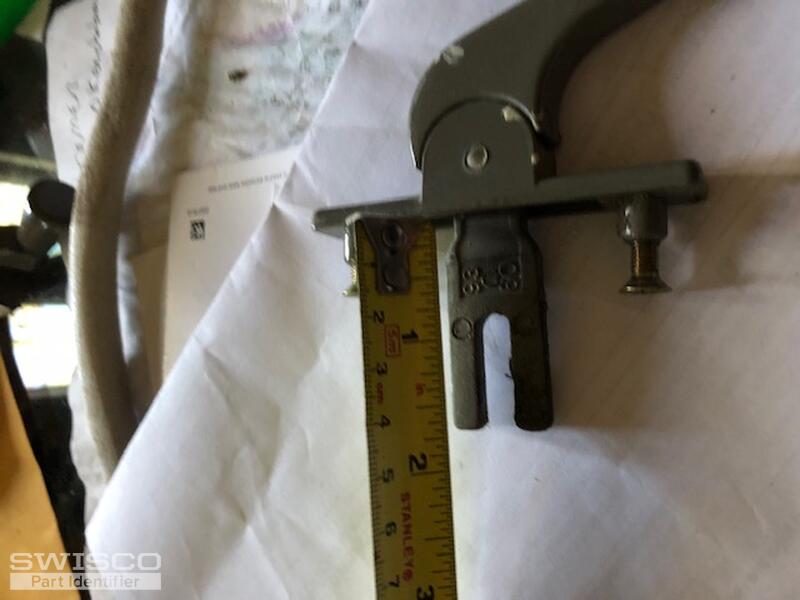

Your operator looks like an older version of the 39-027E which has a 9-1/2" long arm when measured from the center of the gear to the center of the wheel. The 39-028E is the opposite-handed version. Review the dimensions and see if they match what you're looking for. For a compatible folding handle, see the 39-205.
Unfortunately, the lock is discontinued and is no longer available. I'm afraid we don't know of a substitute. I am very sorry for the inconvenience.
Sure. If the spline is 11/32" then you can use the 39-205 folding handle.
It can be hard to say from photos but either our clay or bronze color appears to be close to your old handle.
We're not sure what size spline Wright uses, I'm afraid. You would need to measure the diameter of the hole in your old handle to confirm if it's 11/32".
