Viking Window Sash Balancer ID

Home Owner from Seaside, OR

Apr 8, 2025 8:08 pm

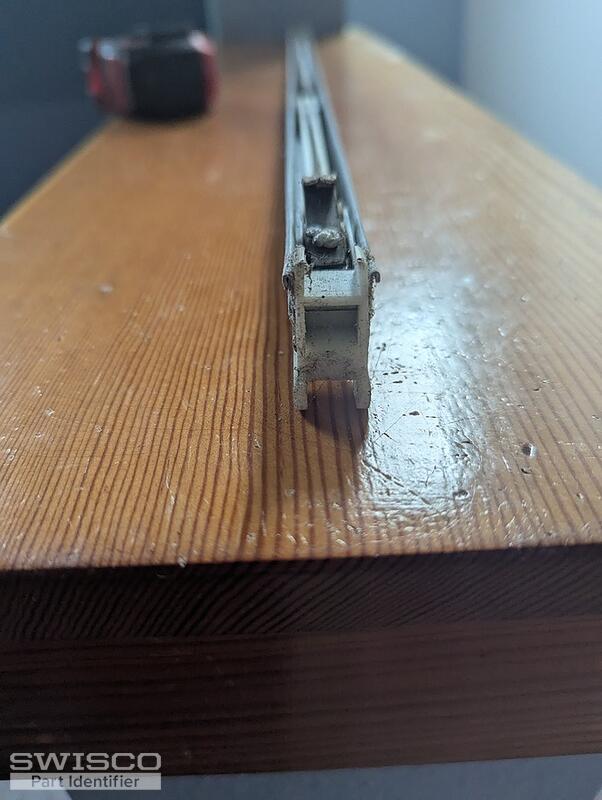

Please help me to identify the correct replacement parts. The channel runs 27" long, is 1/2" wide, and 5/8" deep. The stamp on the channel reads 2630. The windows are Viking, from around 1996. Please let me know if you need any further information.
Thank you!

Rudy

5 user uploaded images

2 Replies

Jasmine from SWISCO

Apr 9, 2025 3:20 pm

Hi Rudy,

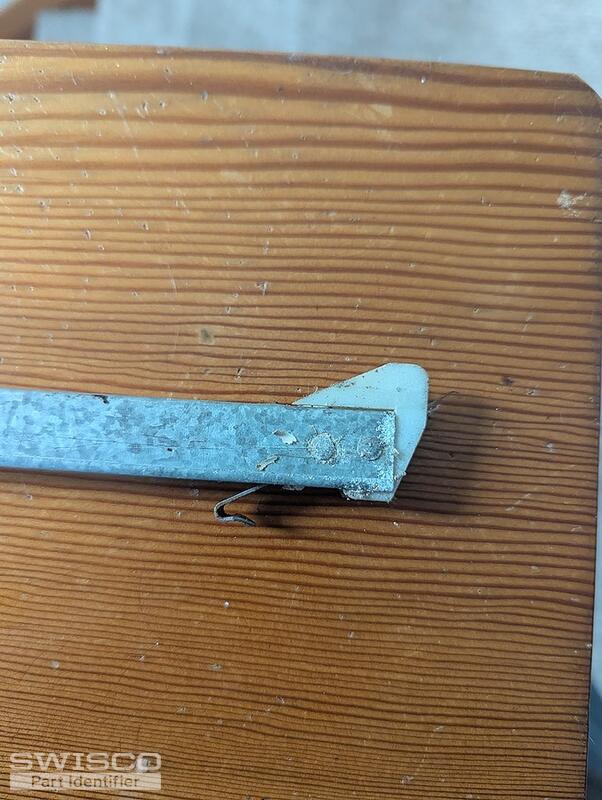

Your window balance has a winged top and a wingless bottom, like the Series 395 Channel Balance. You'll need the S395-27 to replace your 27" channels.

You'll need to select the 2630 stamp option.
