Viking Window balance

A quick learner from Nampa Idaho says:
June 8, 2021

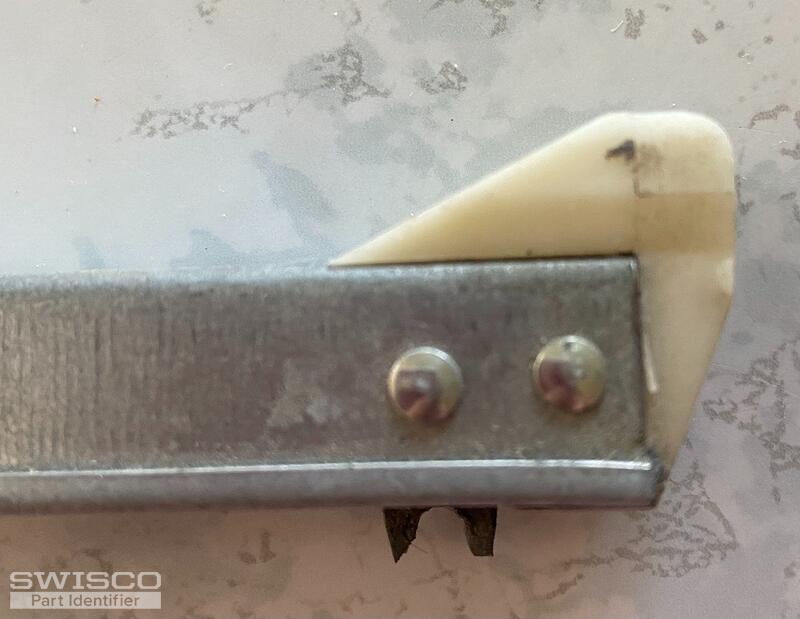

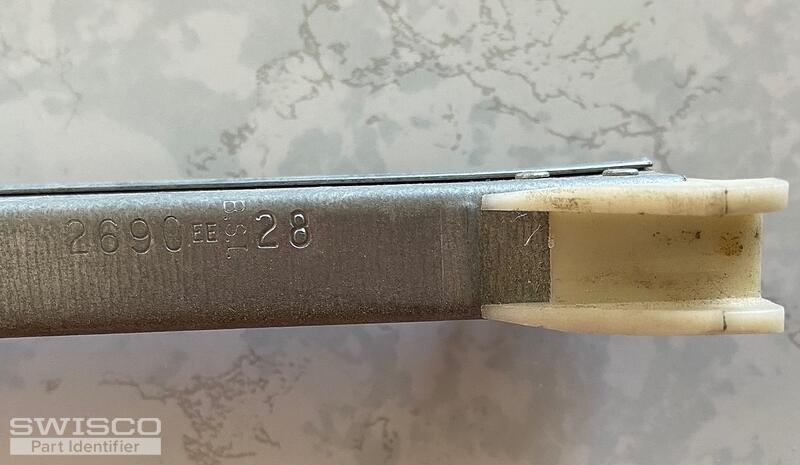

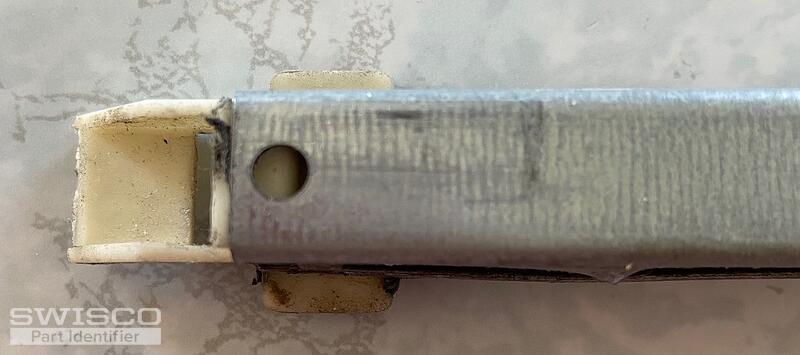

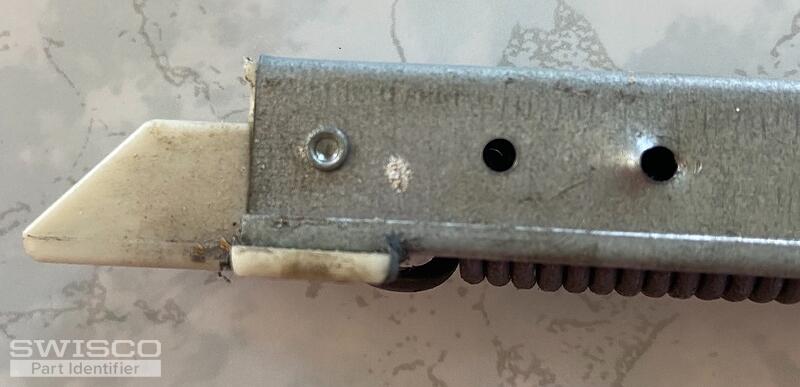

House was built in 1993. Has Viking windows. Part number 2690EE28
Can send more pictures if needed. Need replacement parts for two windows exactly the same size. Length of bar is 28 inches
Thank you
Thumbnail of the uploaded file named 2690 28
Thumbnail of the uploaded file named 7E1AC8AF-272E-4F09-9AA5-30B6A6DFFA07.jpeg
Thumbnail of the uploaded file named 9DF77D3A-0347-420B-B11A-0D79C0DB0F60.jpeg
Thumbnail of the uploaded file named D66E422D-009E-41F6-8D1A-5D1A595A25F1.jpeg
Thumbnail of the uploaded file named FEE4A2B0-54B8-45C2-A424-30298DC1ED38.jpeg
A quick learner from Nampa Idaho says:
June 10, 2021

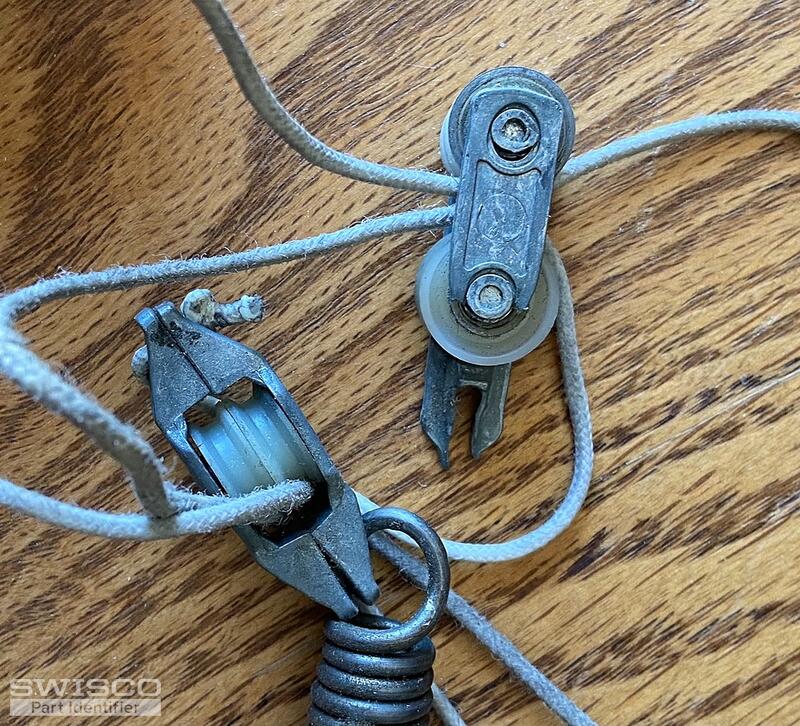

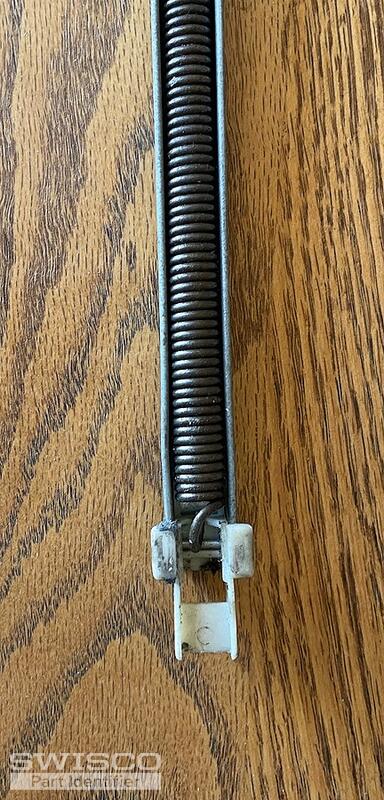

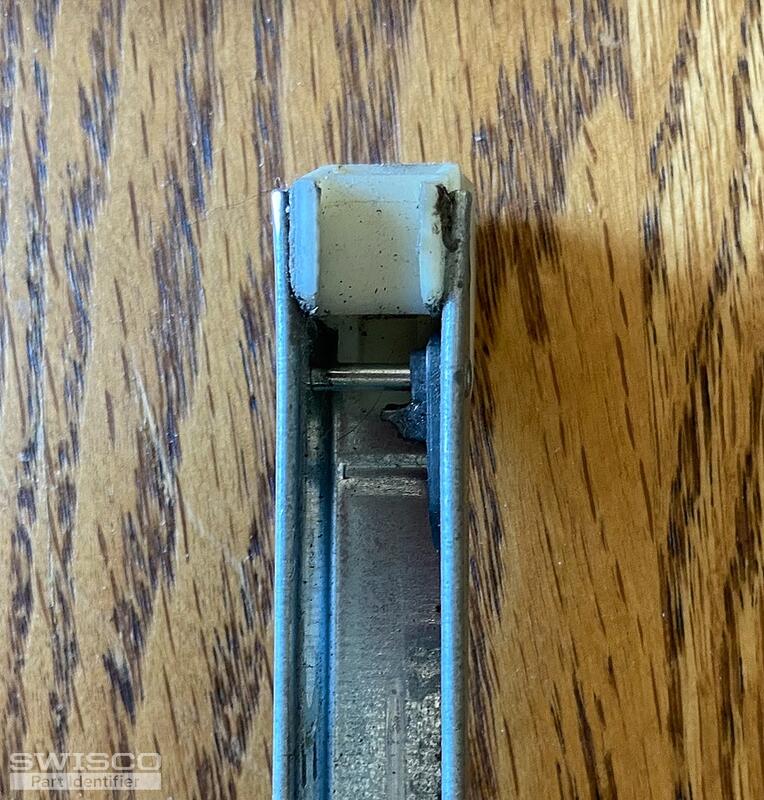

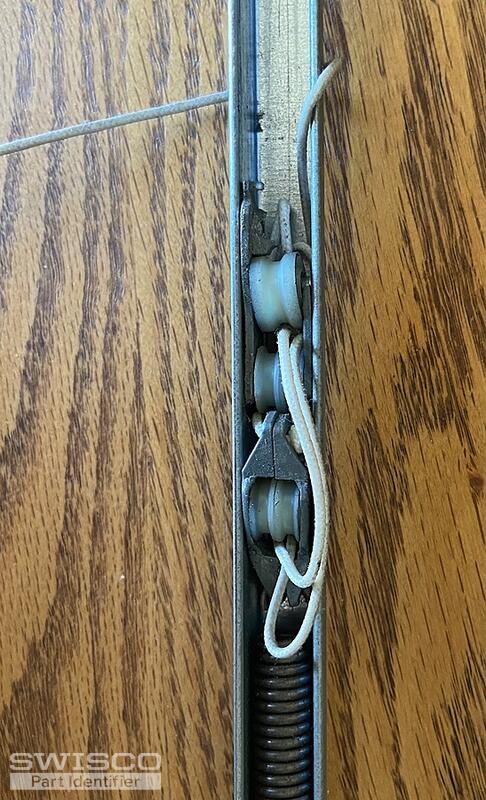

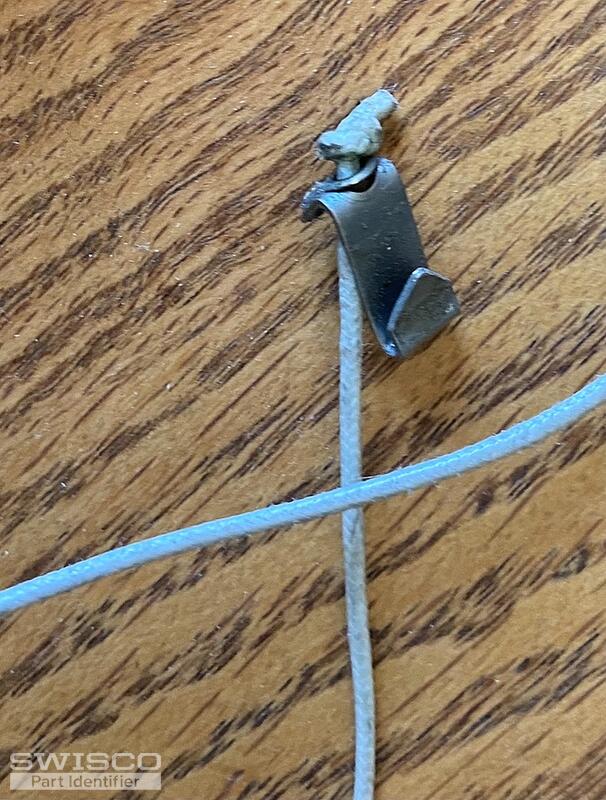

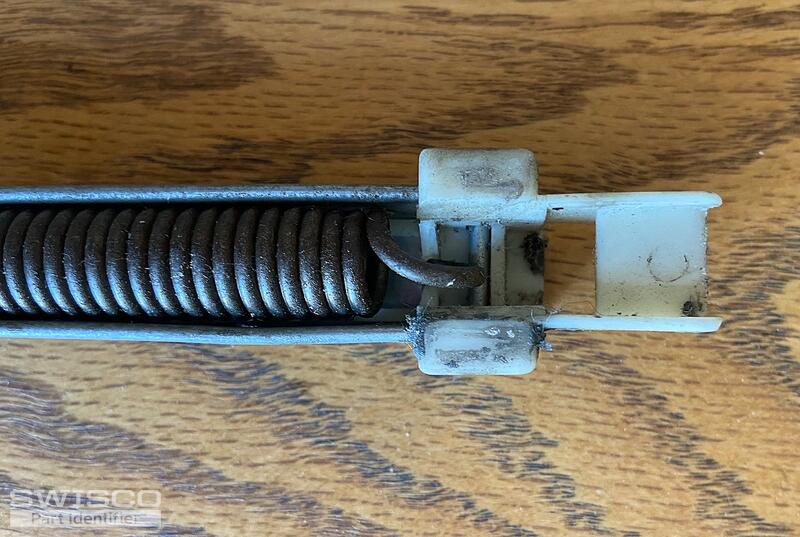

In case you needed more photos
Thank you
Thumbnail of the uploaded file named F89E0915-E948-4F7D-91C4-438A0E9E8C6F.jpeg
Thumbnail of the uploaded file named 77F8556F-5BCD-4C83-831E-00D27FEA0706.jpeg
Thumbnail of the uploaded file named CEF73A70-0DDD-427E-B468-0C8064C7F339.jpeg
Thumbnail of the uploaded file named CC78BCF8-4EC6-42E5-AC7F-9F7436D2EED1.jpeg
Thumbnail of the uploaded file named B6C3D9A3-CAFB-4FBE-B3CA-C7FBBFA9D90C.jpeg
Profile picture of Emily
Emily from SWISCO responded:
June 11, 2021

Hi there!

It looks like you have our Series 395 channel balance. You'll also need to remove your sash and weigh it to choose the appropriate spring strength option. There's a chart on the Series 395's product page that shows you which option you'll need based on the weight of your sash.

If you have any further questions just let us know.
A quick learner from Nampa Idaho says:
July 5, 2021

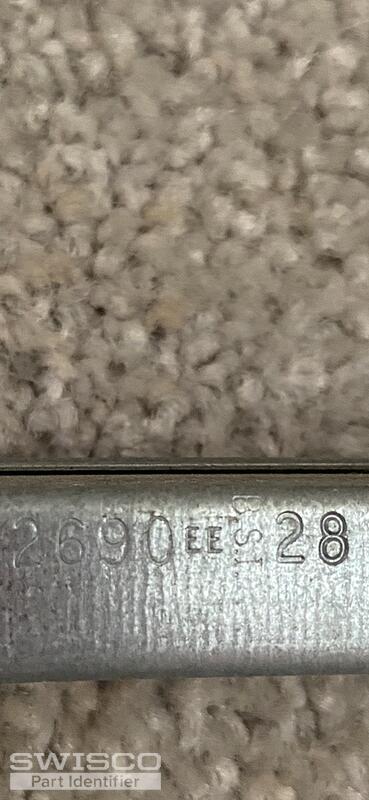

Since I am by myself I do not feel comfortable taking the sashes off to weigh them. I did clean up the metal bar and found some more initials. Not sure if they can help identify the weight or not. Sashes are vinyl. Thank you for your help
Thumbnail of the uploaded file named B9CB3F72-6DAD-49F5-A469-AC730F14C673.png
Profile picture of Emily
Emily from SWISCO responded:
July 6, 2021

I'm afraid the stamp on your balance is outdated and doesn't tell us what spring strength you need. If you're not comfortable with removing the sash yourself, a professional should be able to help. I'm sorry we can't offer a better solution.
