Viking replacement window

Landlord from Denver

Nov 11, 2016 1:03 pm

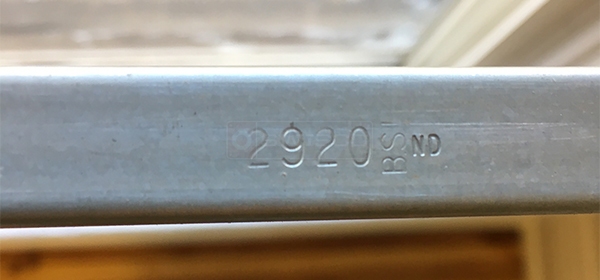

I am looking to replace these two window channel guides, and the clips. The number should be visible in the phot, but to clarify it is 2920.

User submitted a photo of a window balance.

4 Replies

Tom from SWISCO

Nov 14, 2016 11:43 am

Thanks for posting. Sounds like you have a 30" block & tackle balance with a stamp option of 2920. I'm afraid that's all I can tell based on your information, though. Now you just need to pick out the top and bottom fittings in order to determine the Series.

I recommend that you look at our Channel Balance Home Page and follow the steps in order to find the Series that best matches what you have.

Quick Learner

Nov 14, 2016 11:57 am

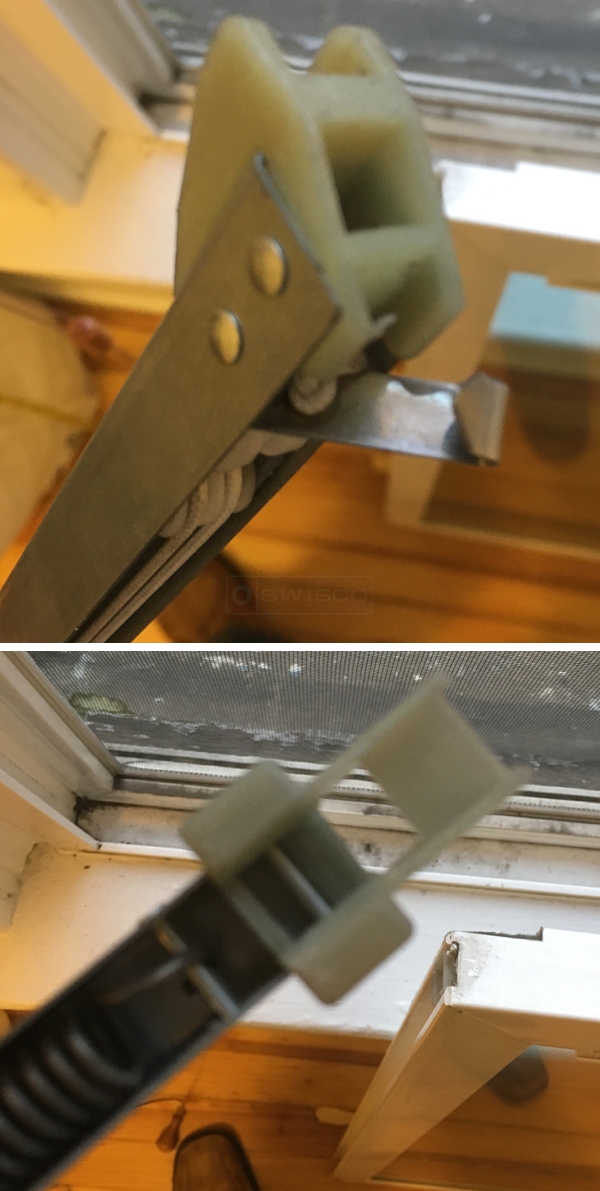

Here are the top and bottom

User submitted photos of a window balance.

Tom from SWISCO

Nov 15, 2016 11:47 am

Great, thank you! See our S395-30 channel balance, this appears to match up. Just make sure the nylon ends are the same size.
