Vinyl Snap-in Glazing Bead ID?

A quick learner from Texas says:
July 3, 2018

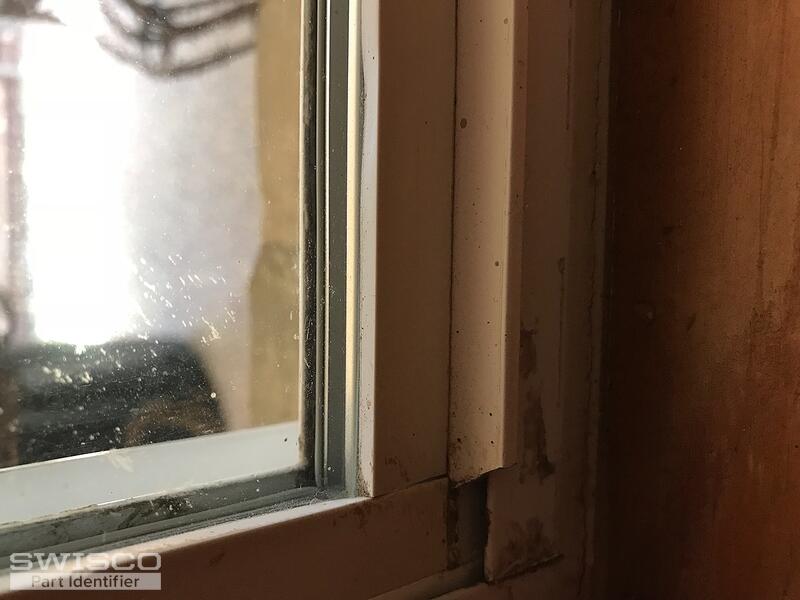

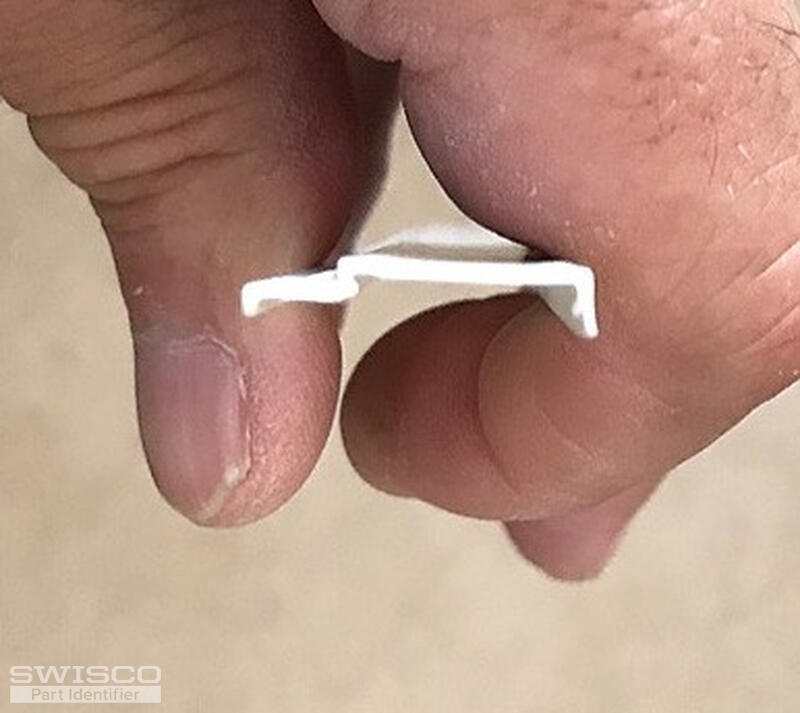

I can?t seem to find this stuff. Can y?all help me ID it? It is in a 1999 home with double pane aluminum framed windows. Appreciate your help. Thanks very much. Dave
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
July 9, 2018

Greetings from SWISCO. We offer a glazing bead that shows some similarities to what you are showing us. Take a look at our 55-011 glazing bead. Do your measurements match up to what we show? Get back to us and let us know.
A quick learner from Texas says:
July 10, 2018

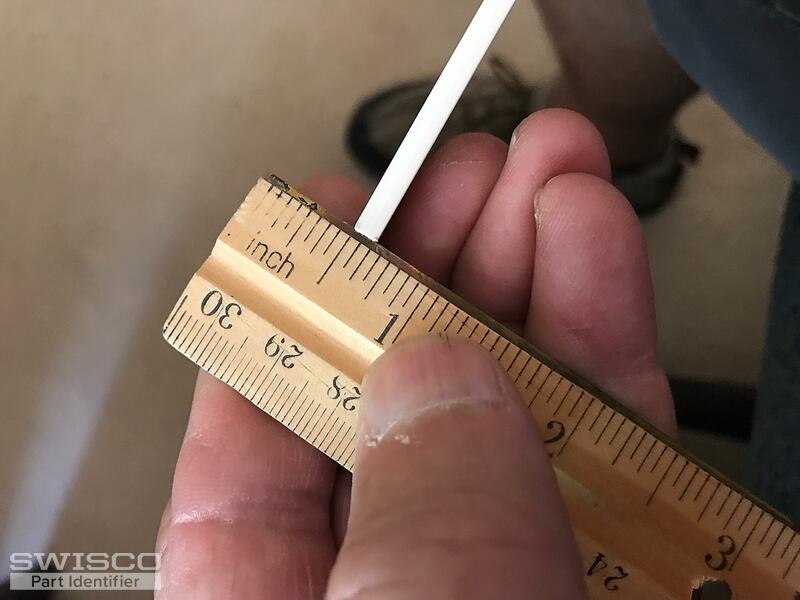

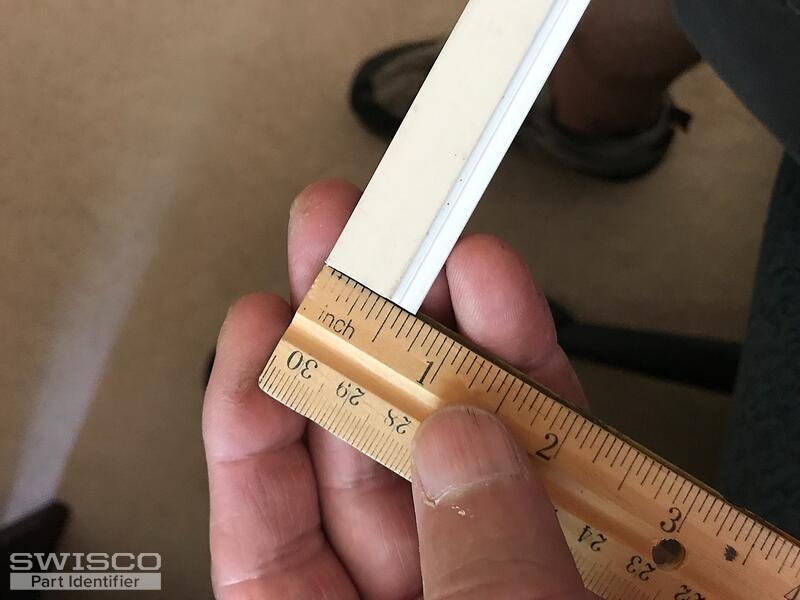

Hi Dave, the stuff I have is about half thickness. About 1/8" at the shoulder as opposed to 1/4". My lower window when raised won't be able to slide past the upper window in the frame. Any other suggestions?
Thanks, Dave
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
July 17, 2018

Thanks for clarifying! Since you need a 1/8" vertical back leg, consider our 55-071. This may be a good option.
3' Acorn Snap-in
3' Acorn Snap-in
55-071
$10.19
6' Acorn Snap-in
6' Acorn Snap-in
55-071-6
$19.27
