Handy Person from 70810

Jan 31, 2023 2:37 pm

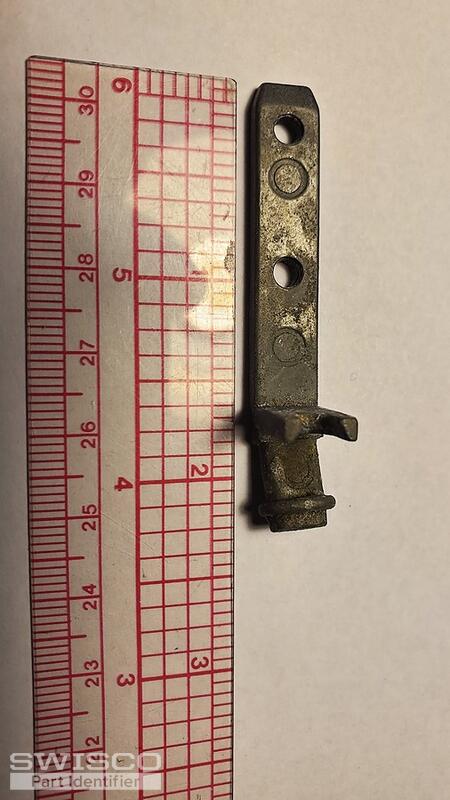

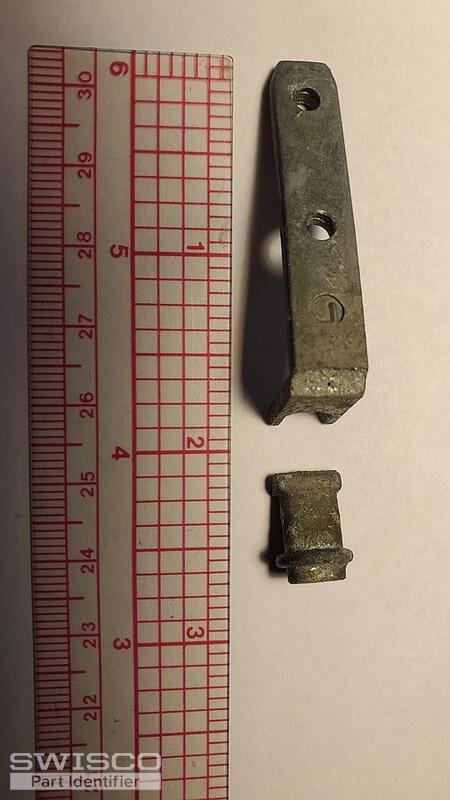

I need two sets (2 left and 2 right) of replacement balance shoes, And 2 replacement pivot pins. I believe these were manufactured by Alliance Window Systems approx 20 years ago. If you have replacement parts, I would like to purchase.

5 user uploaded images

6 Replies

Casey from SWISCO

Jan 31, 2023 4:13 pm

Hello,

Take a look and compare the dimensions of the 26-316 to your pivot bar.

We would like to see a photo of the front of your pivot shoe where the pivot bar would engage to confirm the correct replacement. Thank you.

Alternate image for 26-316

Handy Person from 70810

Jan 31, 2023 8:10 pm

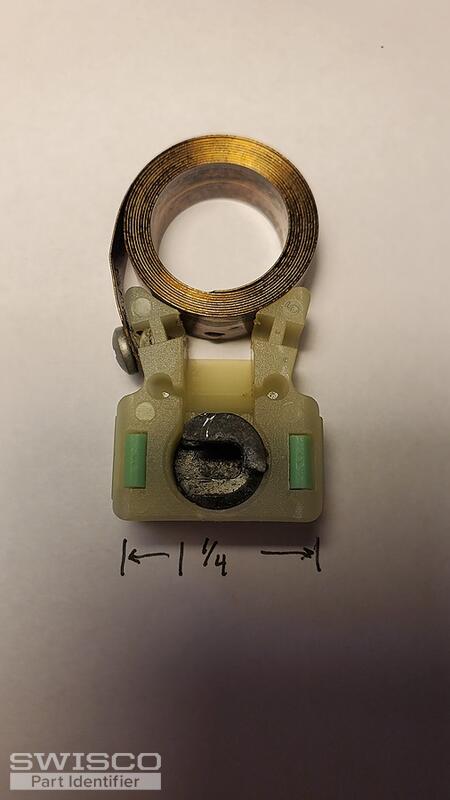

sorry. I thought i had attached it. here it is.

1 user uploaded image

Casey from SWISCO

Feb 1, 2023 9:05 am

Thanks for getting back to us. The pivot shoe in your photos was, unfortunately, discontinued but our 15-177 can be used as a replacement. For new coil springs, you would need the Series 152. We also carry the 15-143 bushing, 15-144 cap, and 15-145 support barrel used with this assembly. Take a look and thanks for posting.

Handy Person from 70810

Feb 1, 2023 10:03 am

Casey
Thanks for the quick reply. one final question. Will the 15-177 shoe work with my existing coil springs? Thanks.
Russell

Casey from SWISCO

Feb 1, 2023 10:22 am

It should as long as the specifications of your original coil springs match the 1/2" wide S152 and are still in good condition.
