Home Owner from Kathleen, GA

Mar 15, 2023 8:06 am

Bought at Leeds Building Supply in Macon, GA in Jan 2002. Company closed. Windows were from a company in Texas.

Scott

3 user uploaded images

7 Replies

Lauren from SWISCO

Mar 15, 2023 12:05 pm

Hi Scott, thank you for posting,

It appears that you are in need of new pivot shoes. To further review, we will need to see the shoe removed from the channel to view the overall style. We will also need written out dimensions of the width and depth of the shoe. Thank you!

Home Owner from Kathleen, GA

Mar 15, 2023 3:27 pm

5 user uploaded images

Home Owner from Kathleen, GA

Mar 15, 2023 5:25 pm

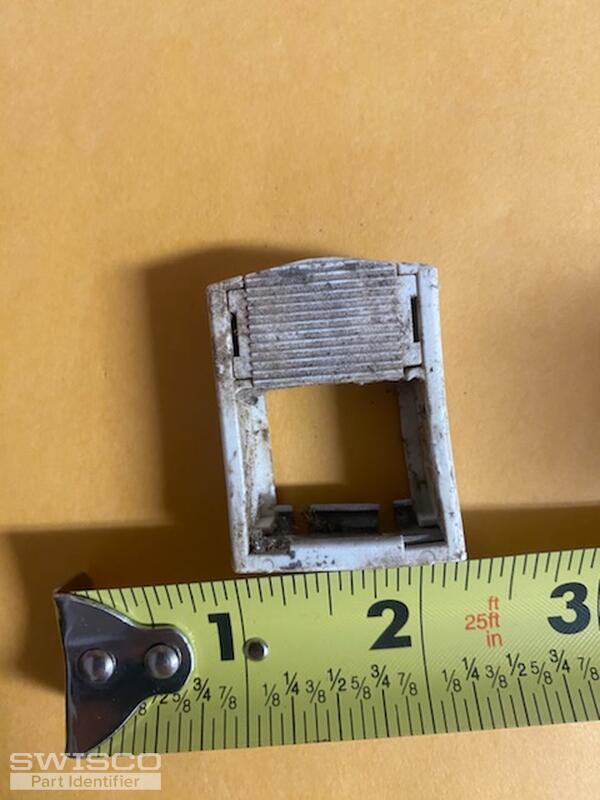

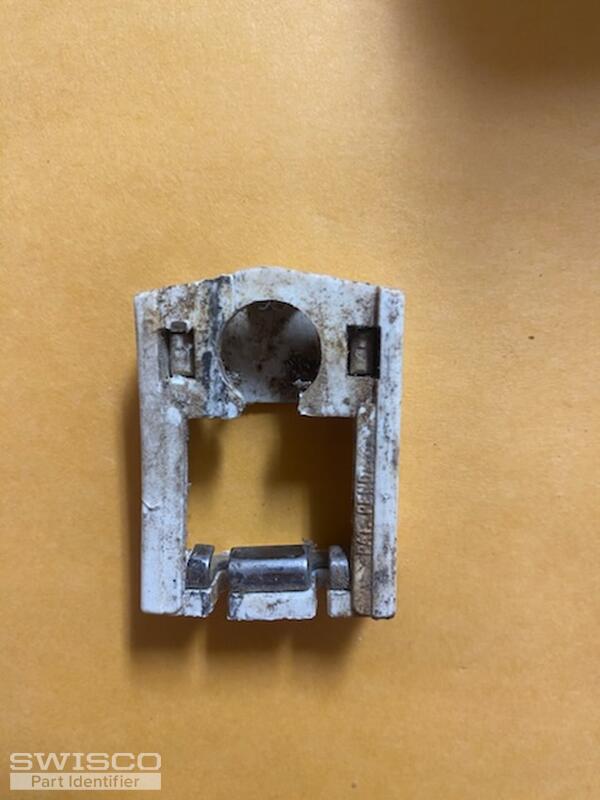

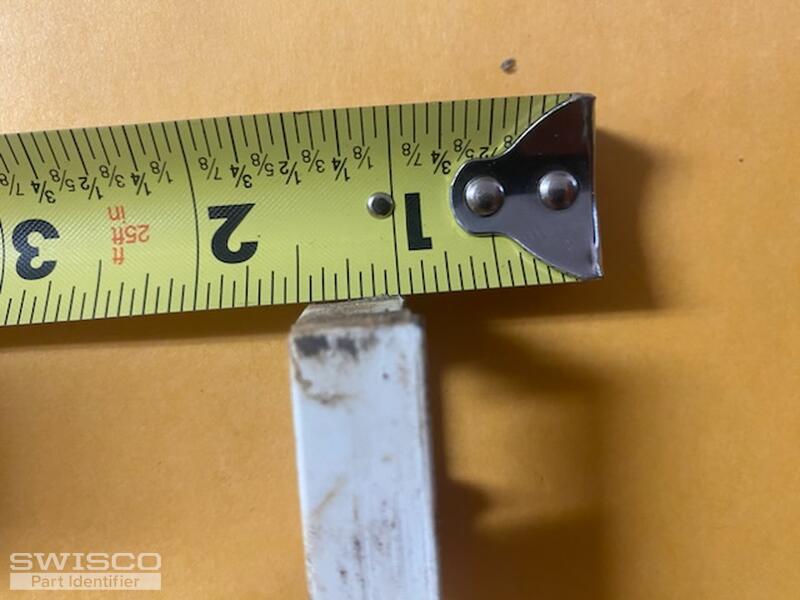

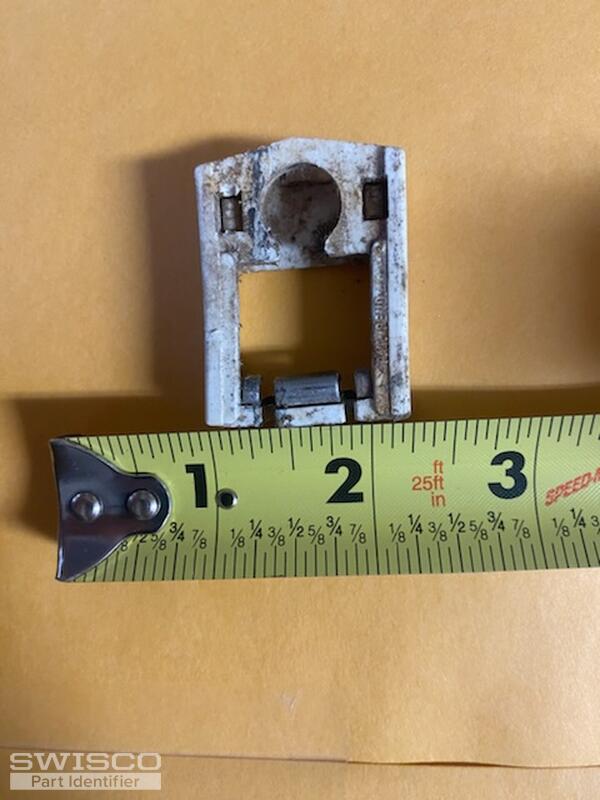

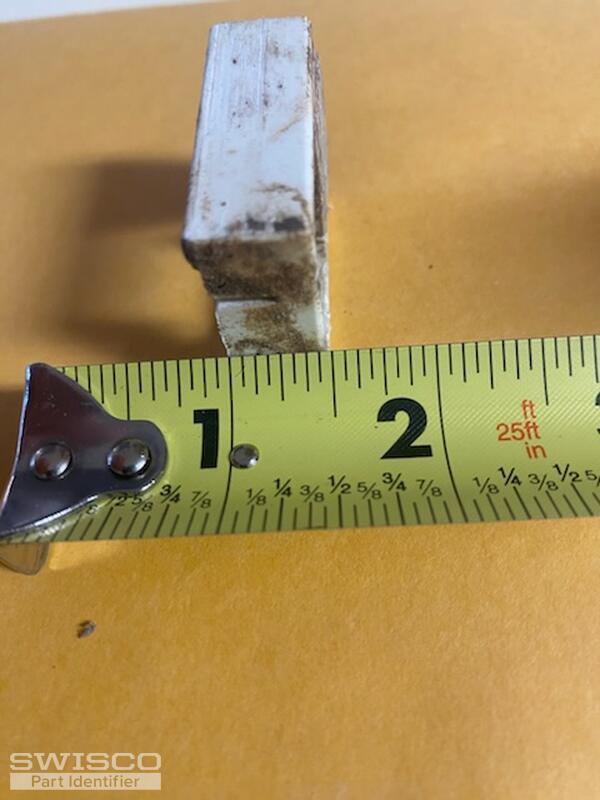

Pivot Shoe outside dimensions
1/2 deep
1 and 1/4 wide
1 and 1/2 tall

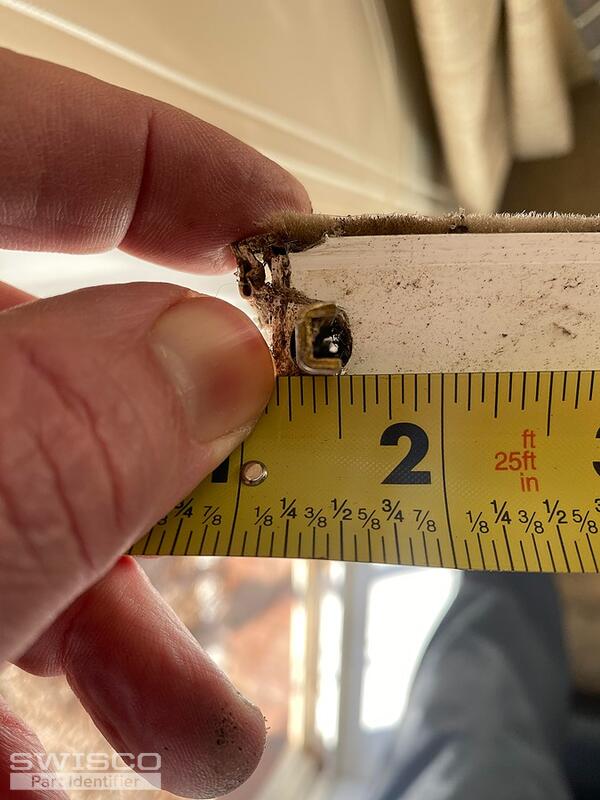

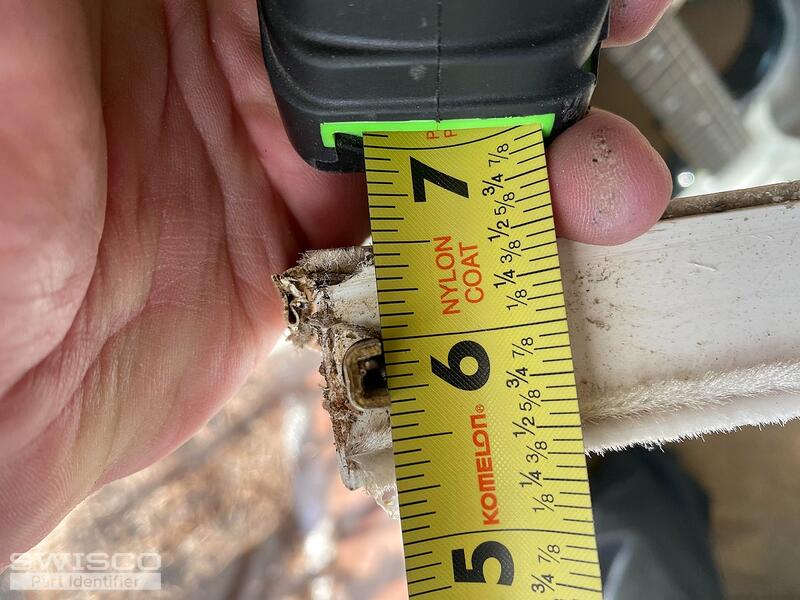

Pics of pivot bar measurements

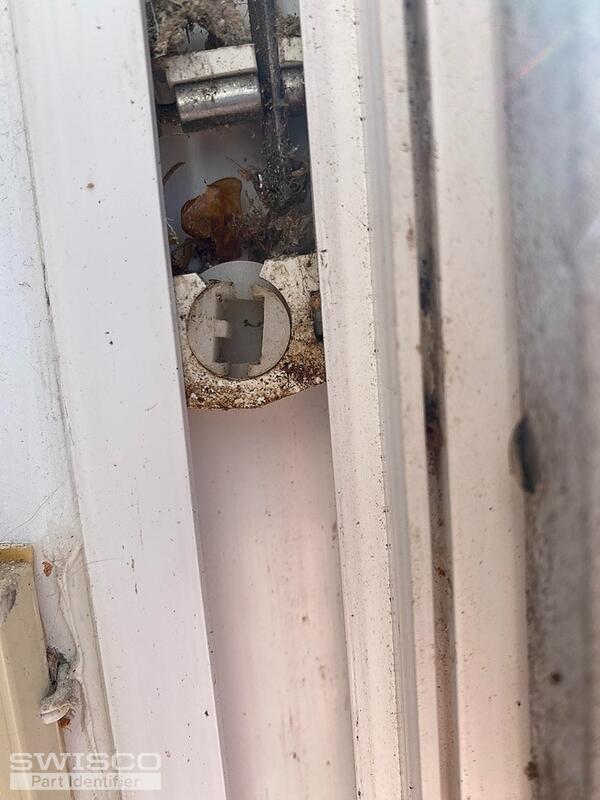

pic of CAM

3 user uploaded images

Lauren from SWISCO

Mar 16, 2023 8:12 am

Thank you for the additional information,

Based on the dimensions provided, please review the 15-046 as a possible replacement. The difference in height should not be an issue as long as the depth and width match up. Let me know if you have any additional questions!

Alternate image for 15-046

Detailed image of the pivot bar slot of the 15-046 pivot shoe.

Home Owner from Kathleen, GA

Mar 16, 2023 8:34 am

Lauren, Thank you for responding back. I posted the written out measurements with exception of the internal area of the CAM. If the height is not an issue and the pivot bar will fit, I am hoping the 15-046 pivot shoe which you listed will work. I ordered one yesterday to see if it works. If the pivot bar fitting is an issue I am thinking I may be able to modify/ream inside of the cam to allow bar to fit. I appreciate your help and will let you know how the 15-406 fits when it arrives. If it fits that will be my solution for my other windows.

Thanks again and I will be in touch.

Michael

Lauren from SWISCO

Mar 16, 2023 8:56 am

No problem Michael!

Based on the style of your original pivot bar, I do not think you should have an issue with it fitting into the new pivot shoe.
