Vinyl Window balance

Handy Person from Ohio

Apr 28, 2019 3:40 pm

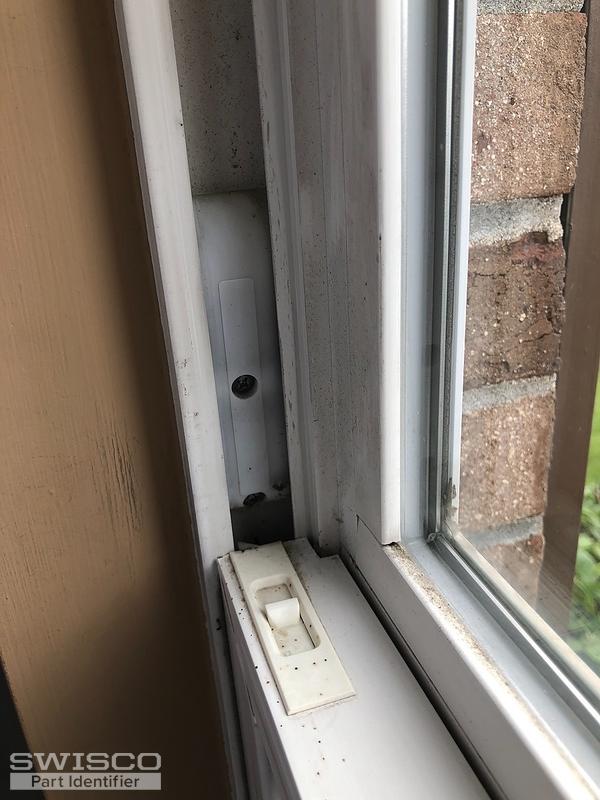

I cracked the housing on my coil spring balance.
Attached are pics of tone of the food balances and the only. In era I can find on the window. These windows were installed by a contractor when the house was built in 2000.

4 user uploaded images

6 Replies

Tom from SWISCO

May 1, 2019 8:35 am

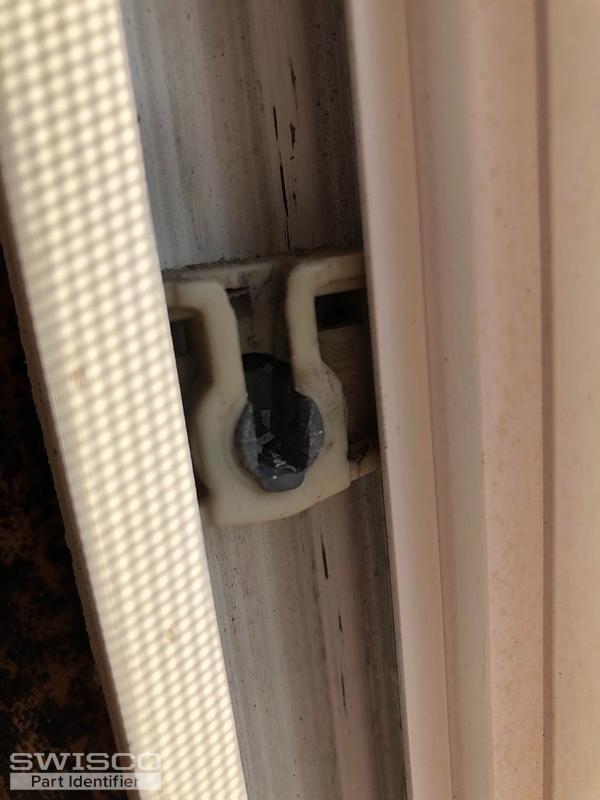

We have a bunch of different coil balance housings and I'm confident one of them will work for you, but before I can suggest one, can you tell me how thick the springs themselves are? I'd also like to see a photo of the pivot shoe to which they attach.

With those pieces of information I can definitely recommend a cover that will work for these balances.

Handy Person from Ohio

May 6, 2019 8:28 am

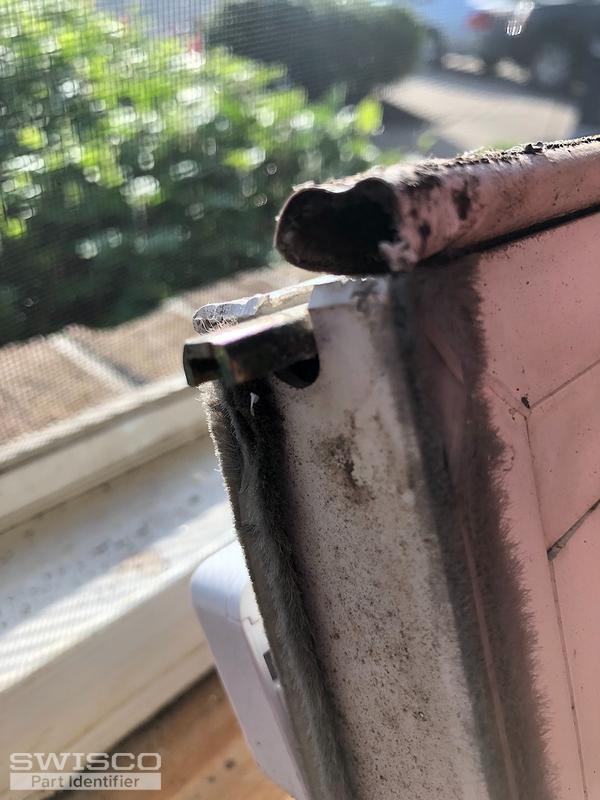

The spring is 3/8" wide. See attached pics. Thanks

3 user uploaded images

Casey from SWISCO

May 6, 2019 10:30 am

Thanks for the photos! It looks like you need the 15-204 double coil support. It's compatible with the Series 165 coils and 15-111 pivot shoe. Let us know if you have any questions.

Casey from SWISCO

May 6, 2019 11:33 am

If just your housing is broken, you're certainly fine just getting the 15-204. If your other parts are damaged, then yes, you would need to order the coil, coil housing, and the pivot lock shoe for both sides of the window.

Handy Person from Ohio

May 6, 2019 12:05 pm

So I will need all three of those part numbers per side correct?
